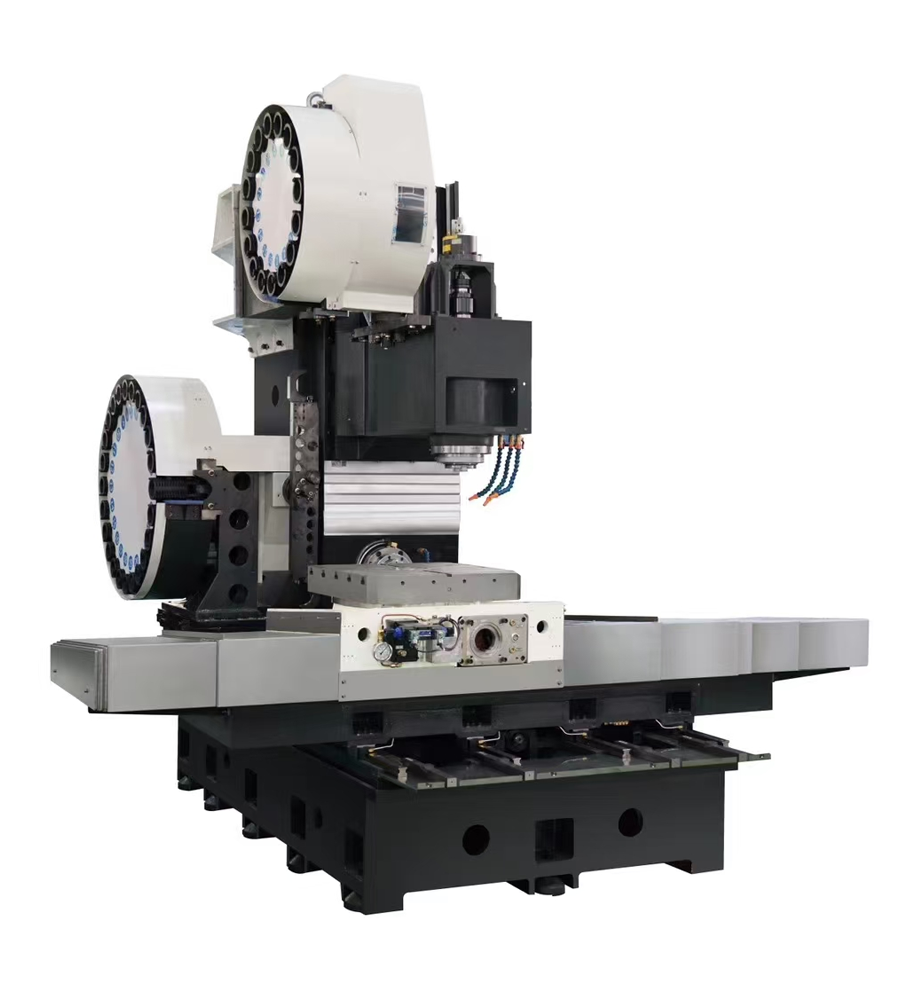

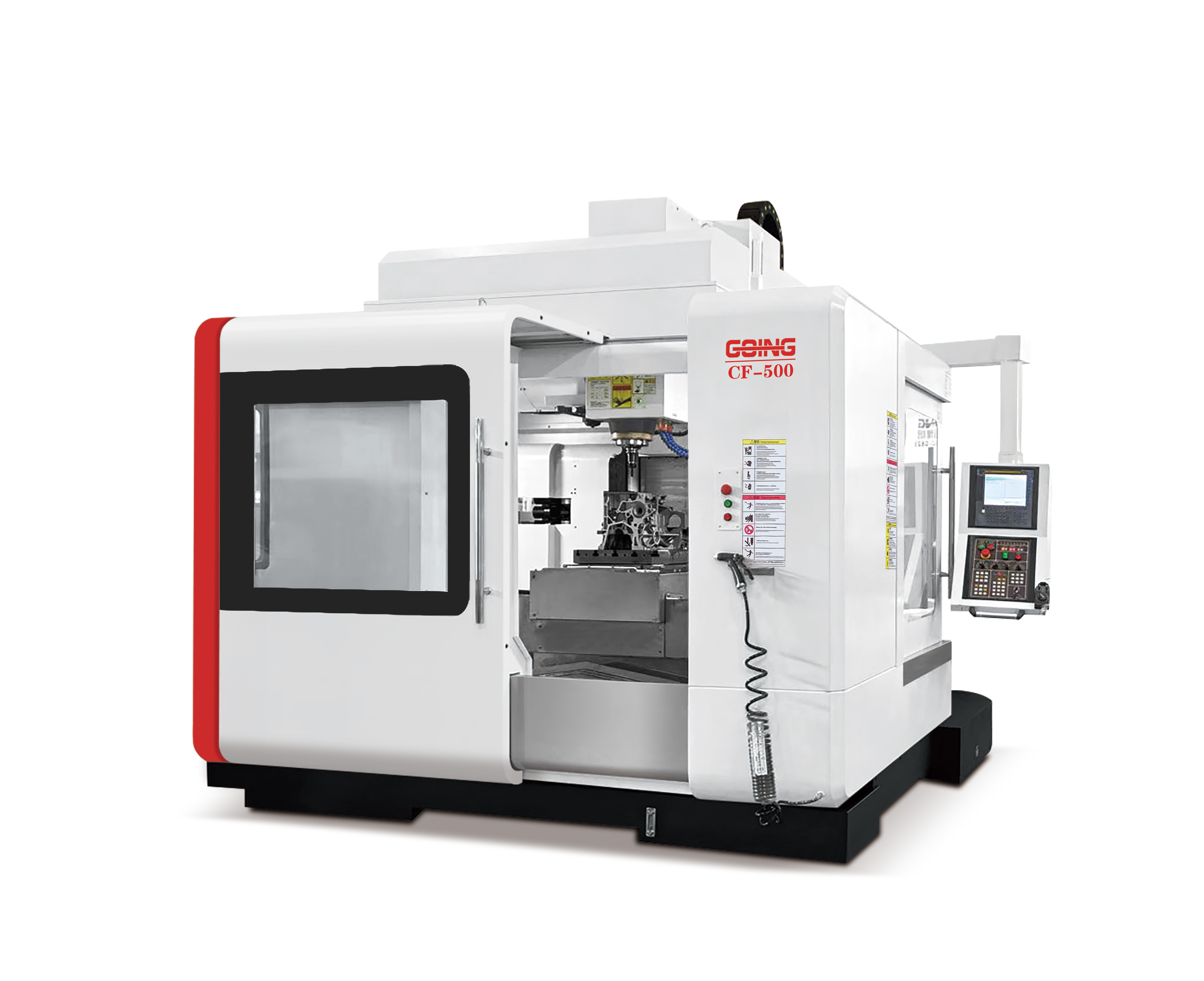

Vertical horizontal composite processing machine

1

2

3
Vertical horizontal composite processing machine

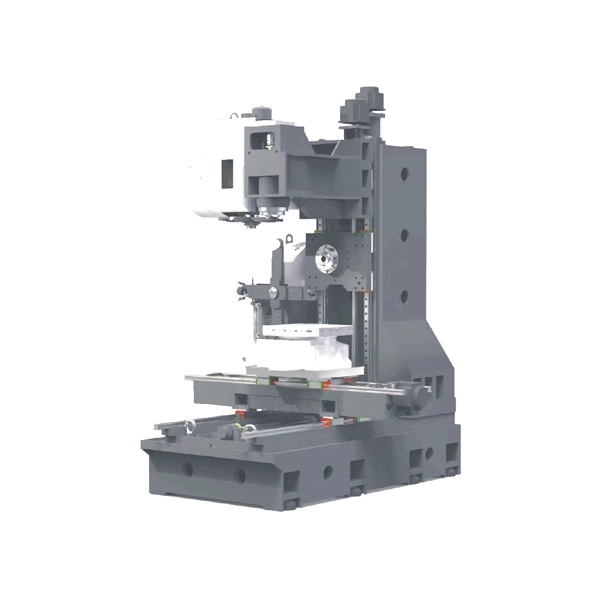

The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability

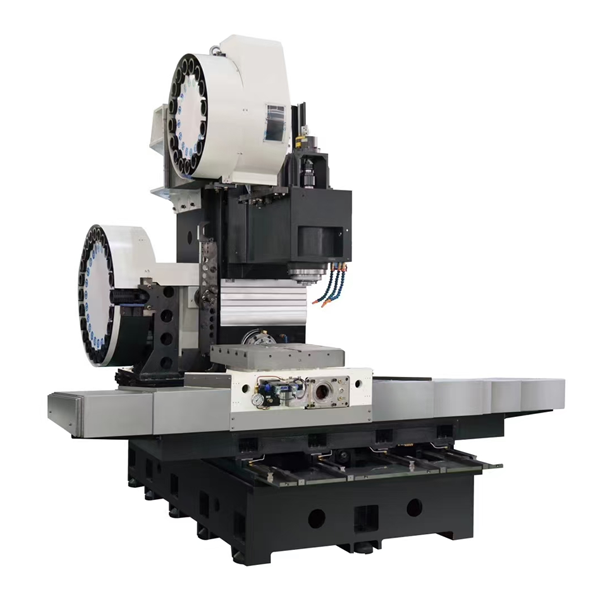

Vertical and horizontal composite to achieve a clamping, five-sided processing
Vertical + horizontal + rotary table, double spindle double tool library
Suitable for valve, box multi - sided processing



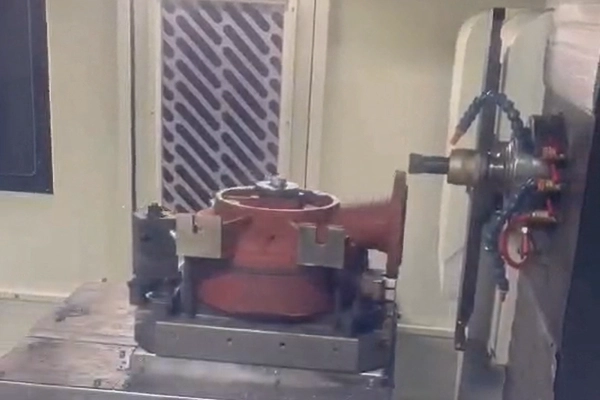

PRODUCE VIDEO

Product Video
ACCESSORY

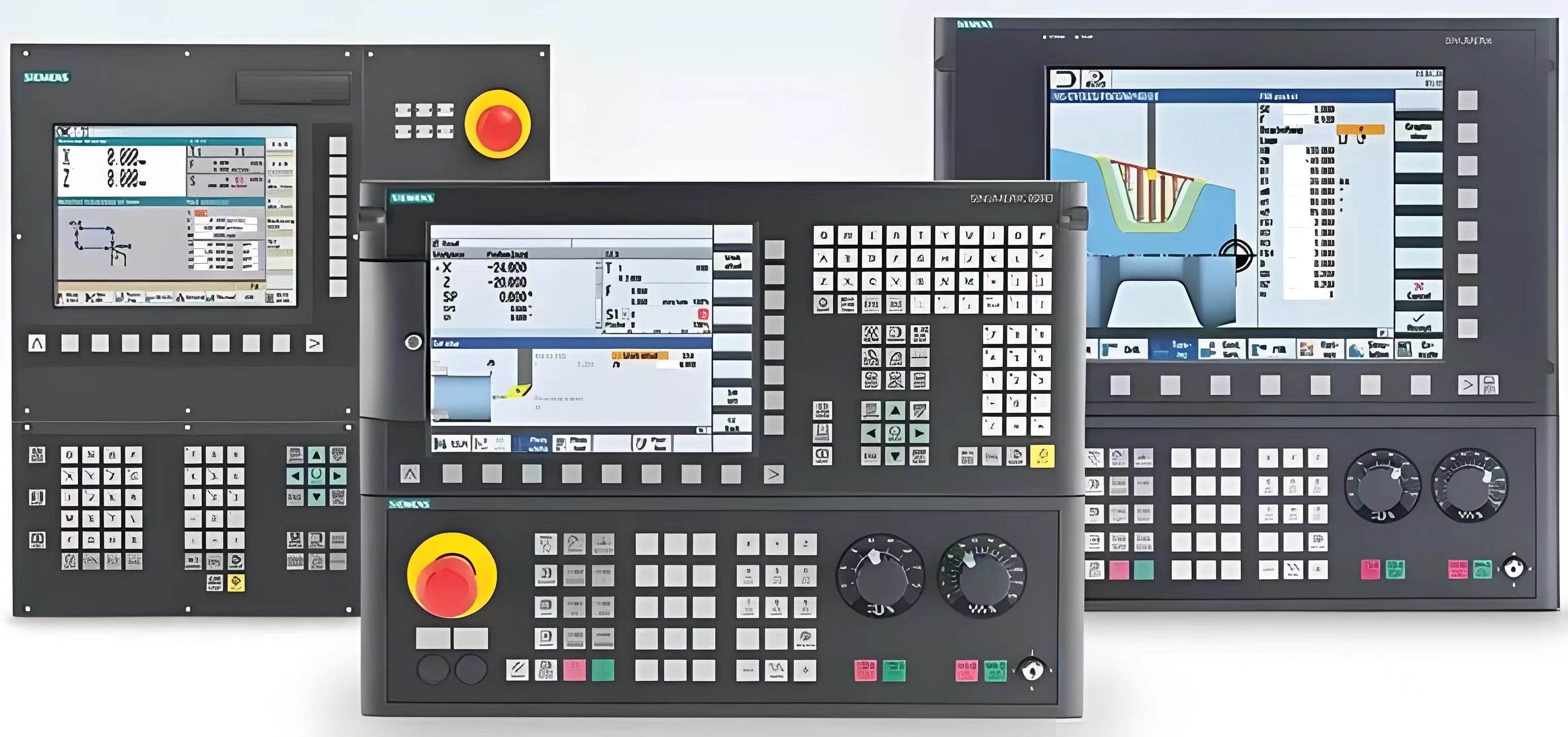

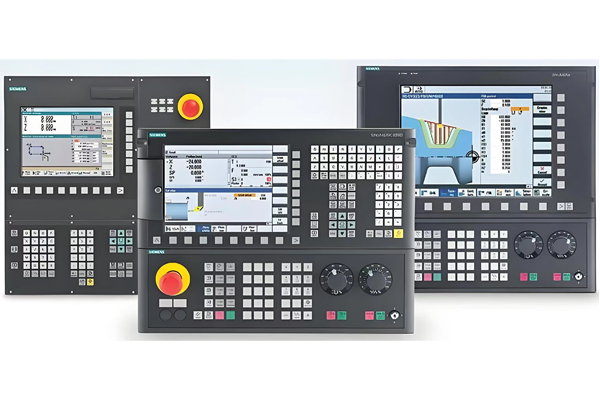

System

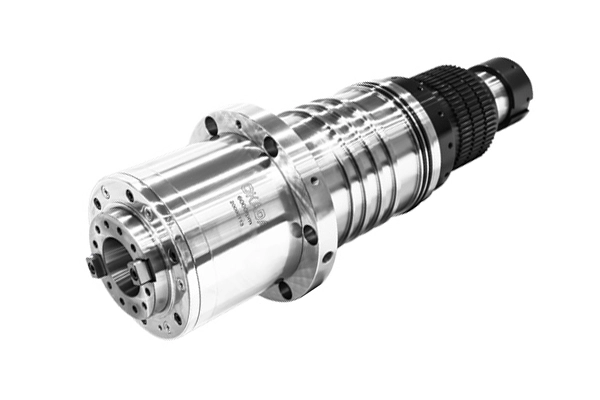

Spindle

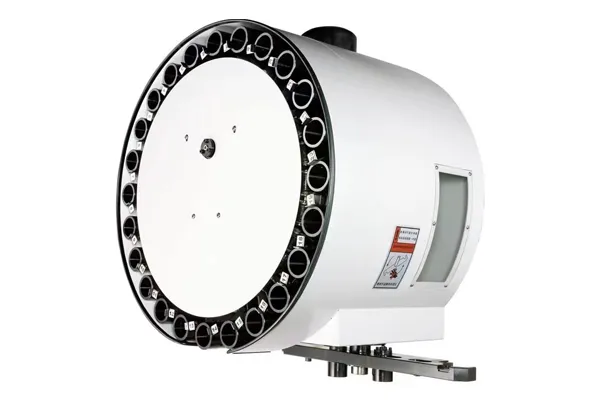

Magazine tool

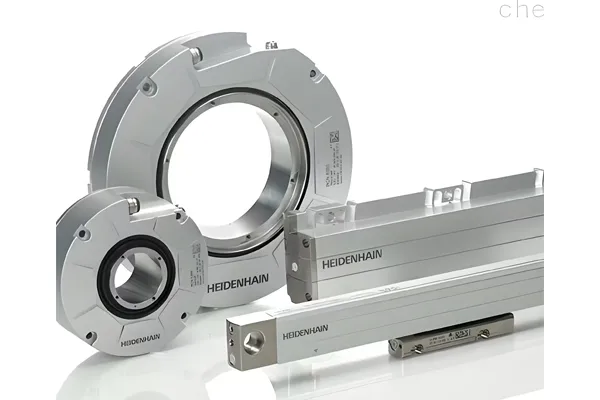

Grating ruler

Tool setter

On-line detection

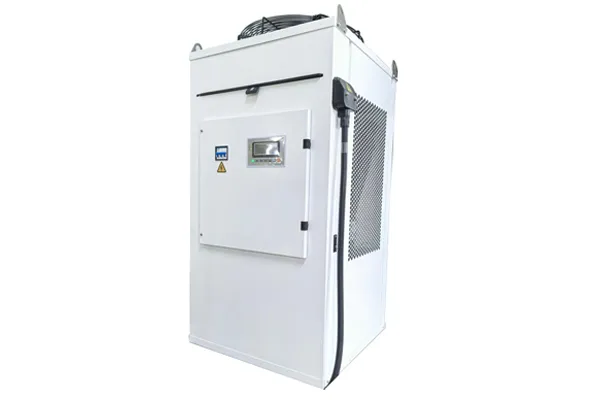

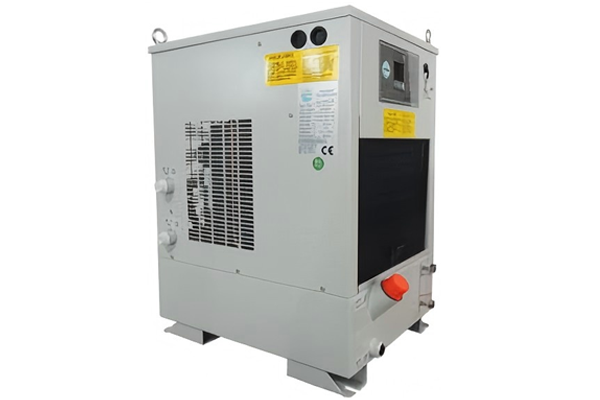

Oil cooler

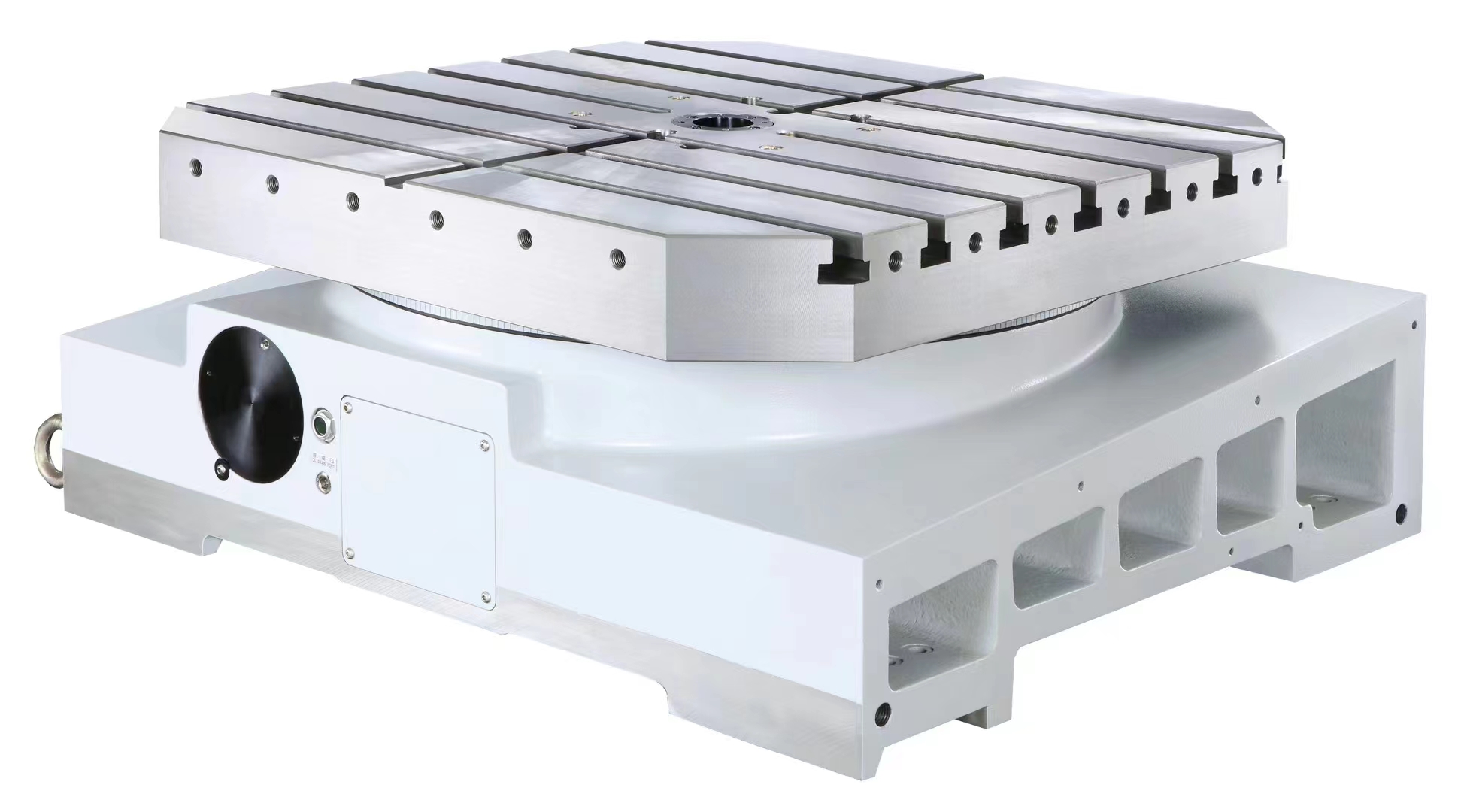

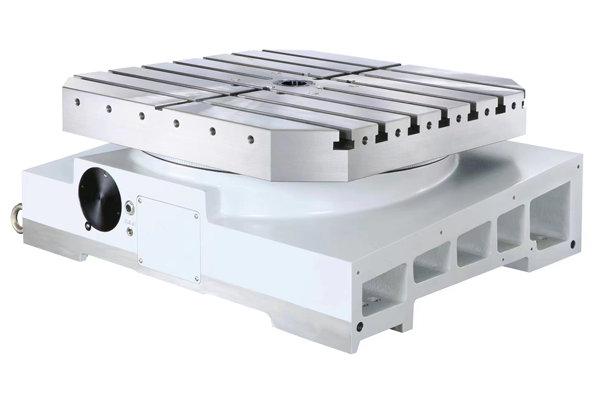

turntable
WORKPIECE

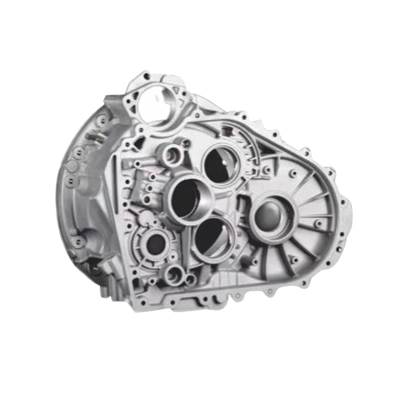

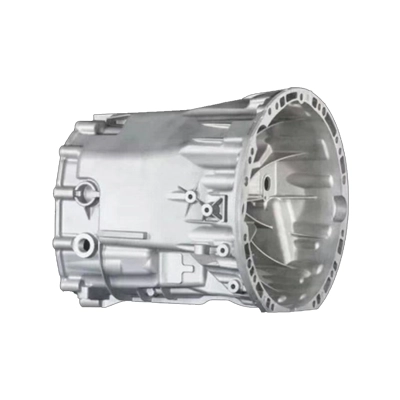

Automobile transmission hub

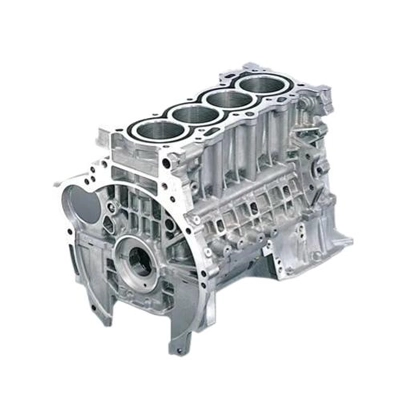

Motor cylinder

Automobile transmission hub

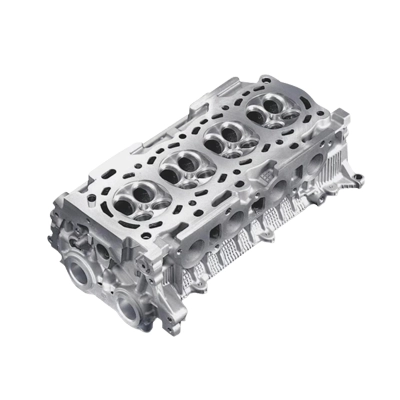

Cylinder cover

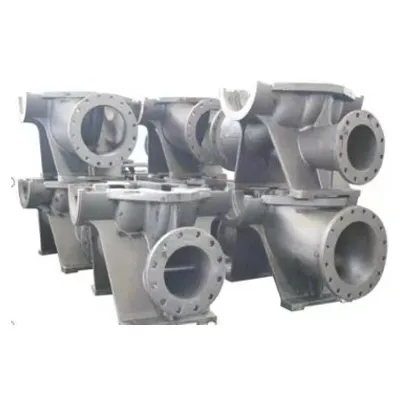

Valve body

Valve body

Valve body
TECHNICAL PARAMETER
Specifications Models Unit CF500   CF630 CF800
Processing range X-axis travel mm 900 1100 1300
X-axis travel mm 600 650 600
Z-axis travel mm Z1 vertical head:650 Z1 vertical head:720 Z1 vertical head:800
mm Z2 horizontal head:550 Z2 horizontal head:595 Z2 horizontal head:600
Distance from spindle center to column mm Z1 vertical head:700 Z1vertical head:765 Z1 vertical head:836
Distance from spindle center to table center mm Z2 horizontal head:600-135 Z2 horizontal head:595-155 Z2 horizontal head:600-145
Distance from spindle center to work surface mm Z1 vertical head:168- 880 Z1 vertical head:160- 860 Z1 vertical head:165- 965
Distance from spindle end to table center mm Z2 horizontal head:320-1020 Z2 horizontal head:375-1025 Z2 horizontal head:335-985
Table specification Table size  mm ∅500 ∅630 ∅800
Number of  workstations pc 1 1 1
Worktable indexing / 0.01/0.001 0.01/0.001 0.01/0.001
Maximum bearing capacity of table kg 500 800/1200 1500/2000
Spindle specification Speed of mainshaft rpm 12000 8000 6000
Spindle specification / BT40 BT50 BT50
Kind of drive / Direct connection Belt Type Belt Type
Feed X, Y, Z axis fast feed m/min 36/36/36 36/36/36 36/36/36
Motor Spindle specification / βiI12*2 βiI12*2 βiI12*2
X、Y、Zspecification / βiS22/2000*4 βiS22/2000*4 βiS22/2000*4
Tool Magazine Capacity / 24T*2 24T*2 16T*1-24T*1
Screw rod and guide specifications X, Y, and Z axis ball screw specifications mm ∅4012*3 ∅5012*3 ∅5012*3
X, Y, and Z axis ball screw specifications mm XY45*2/Z35*4 X45*2/Y35*4/Z55 X45*2/Y35*4/Z55
Machine Specifications Machine size  mm 3500*3300*2900 3500* 3500* 3000 3800*3600* 3000
Machine weight  T 10 13 15
Because technology is constantly updated, the above parameters is only for your reference
