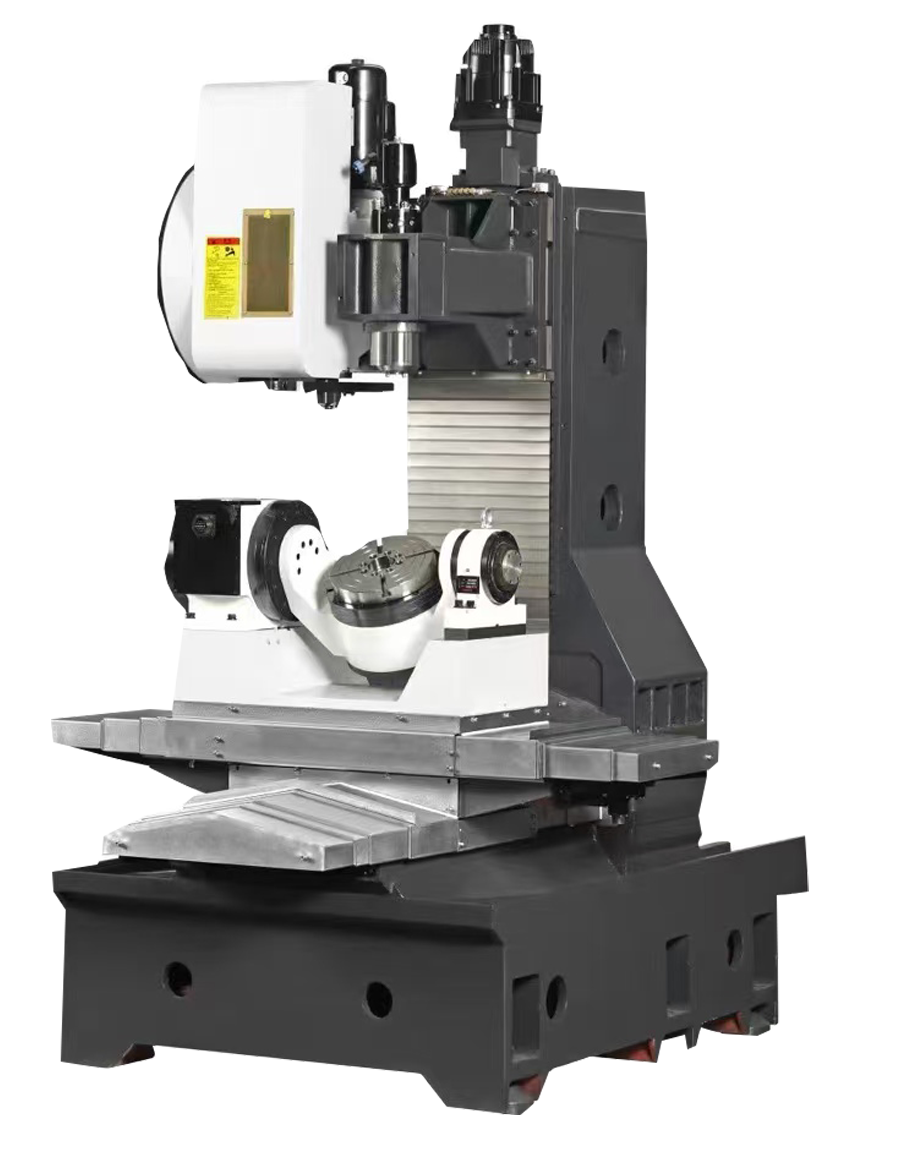

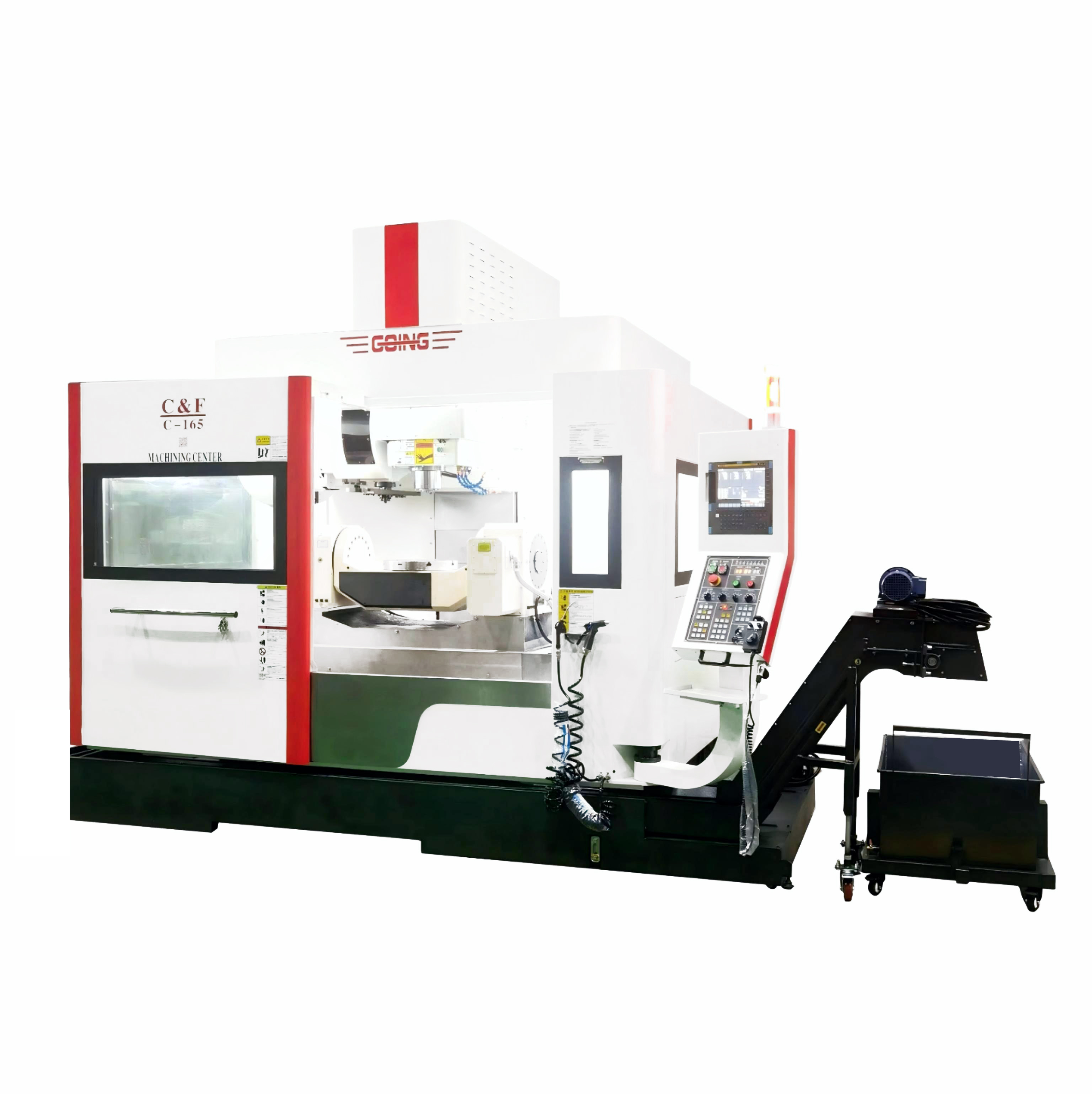

Vertical five axis processing machine

1

2

3

4
Vertical five axis processing machine

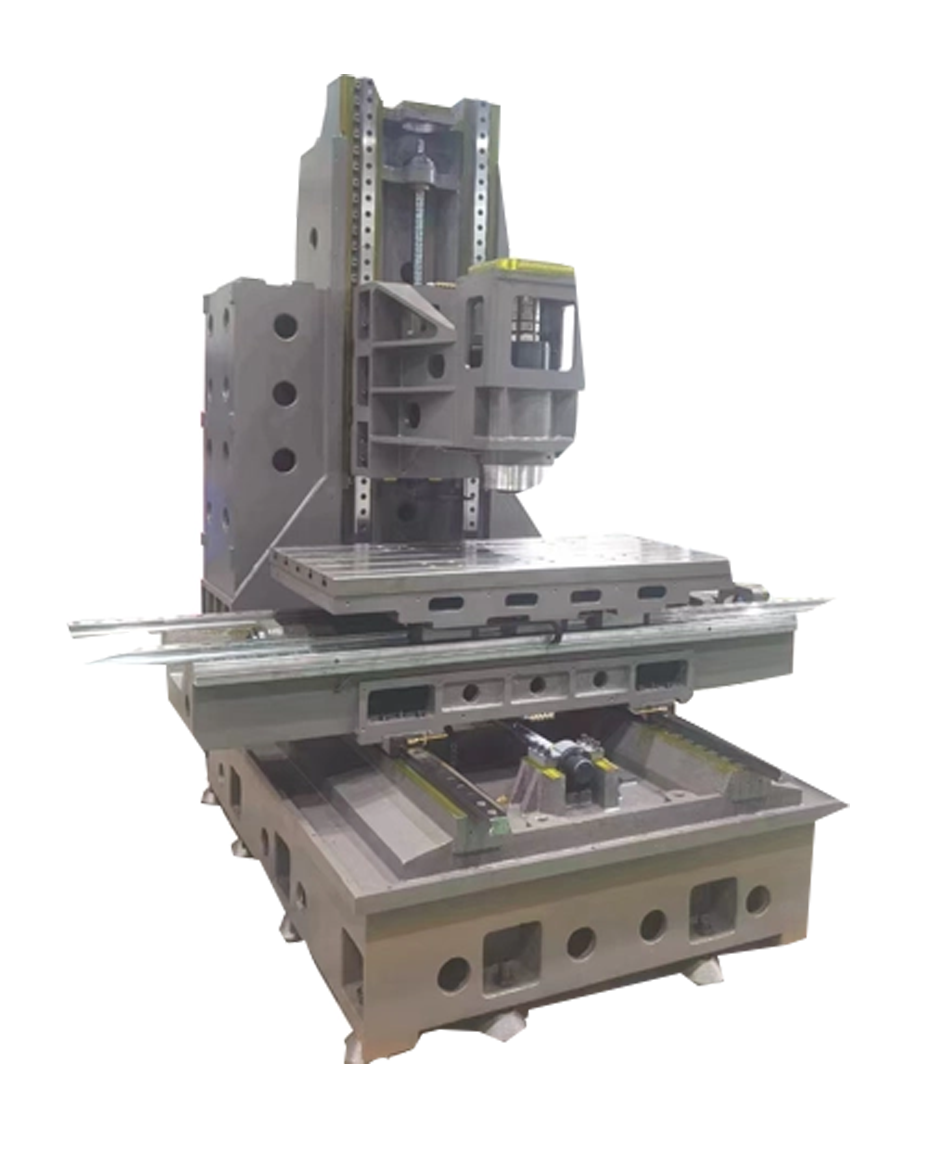

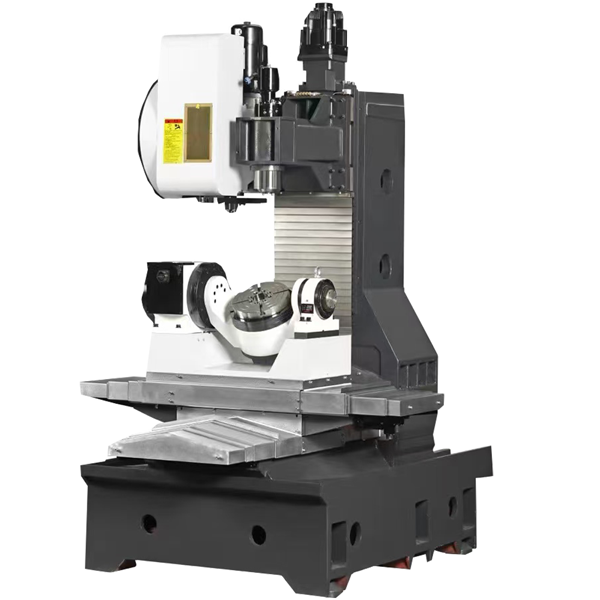

The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability

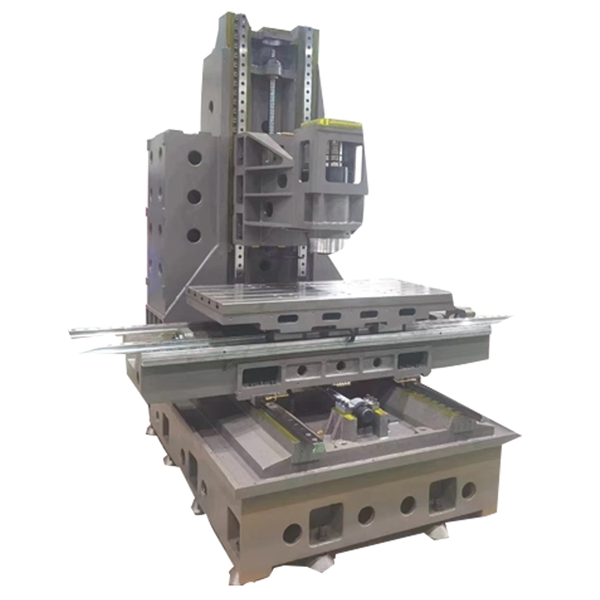

Integrated screw base and motor base to ensure high rigidity and stabilit
Suitable for aerospace, high precision mold, parts, 3C, 5G parts processing tool.

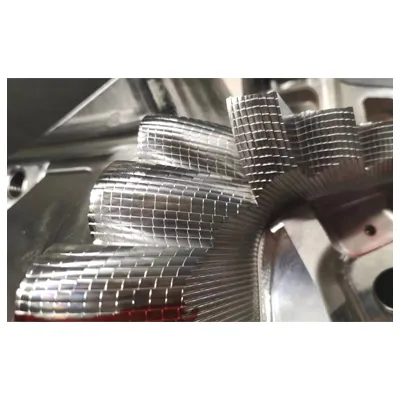

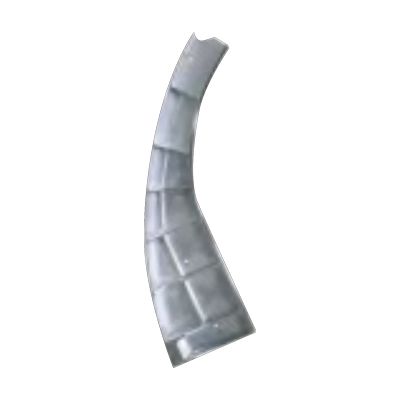

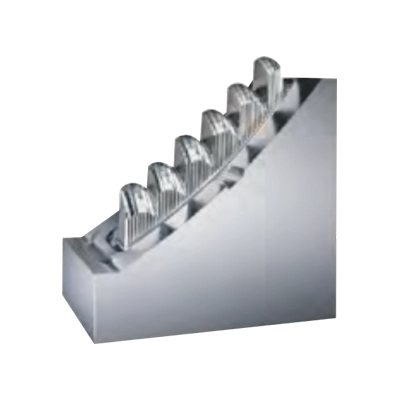

High-end impeller machining/surface, curve, universal machining

PRODUCE VIDEO

ACCESSORY

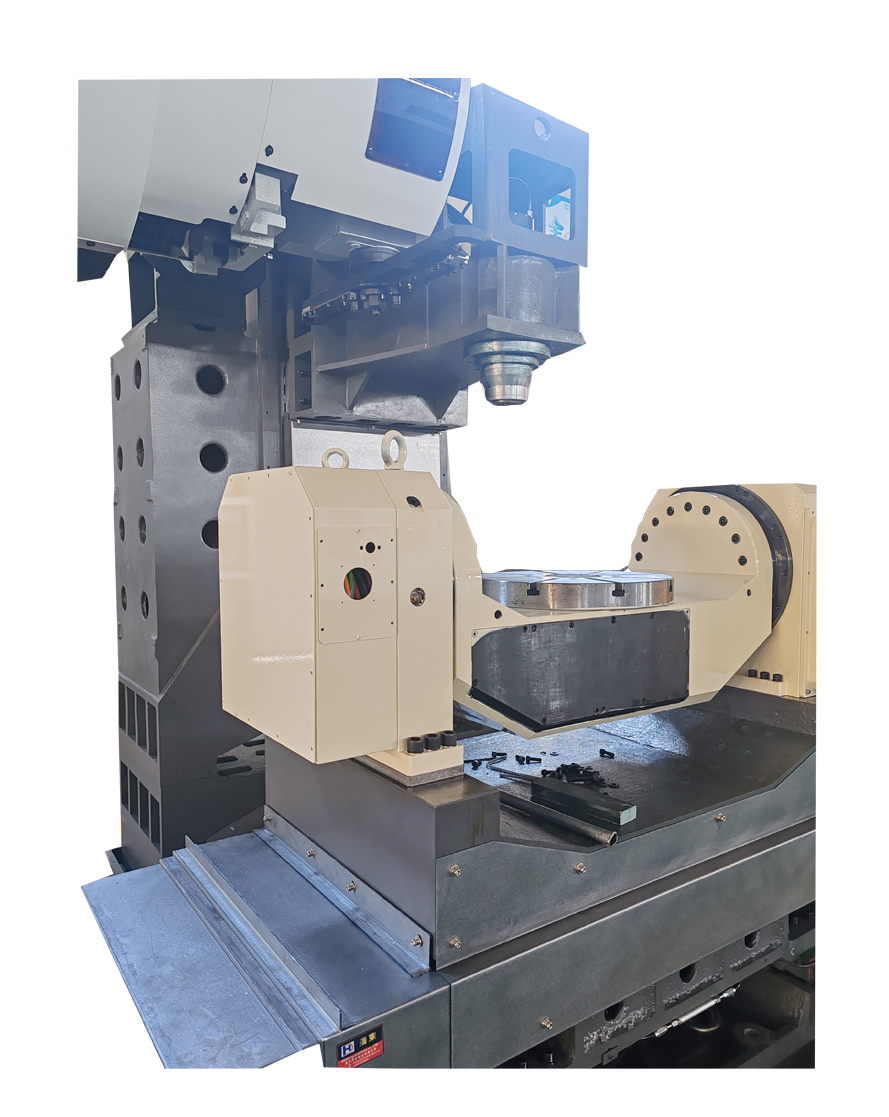

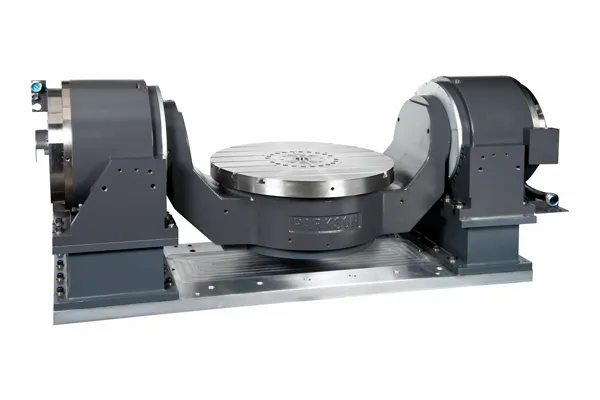

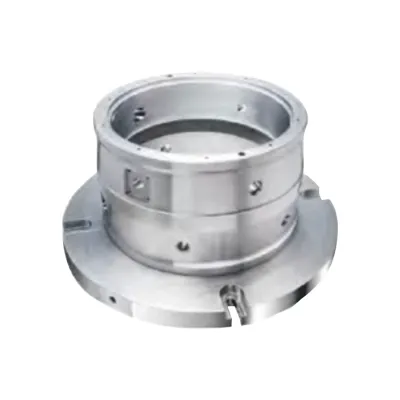

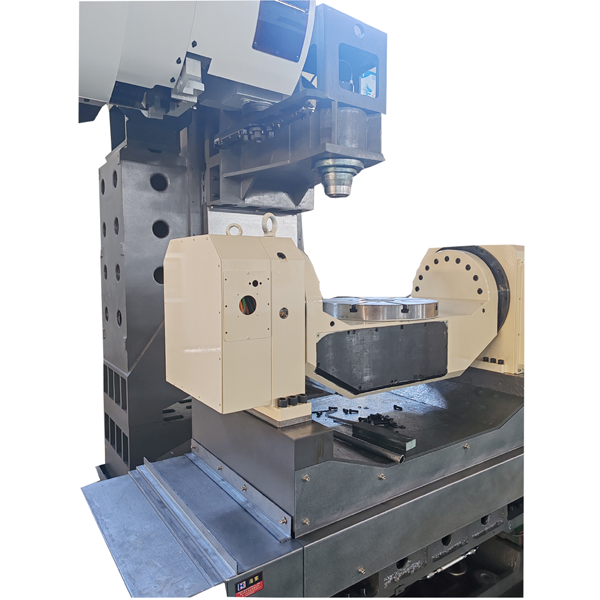

Cradle

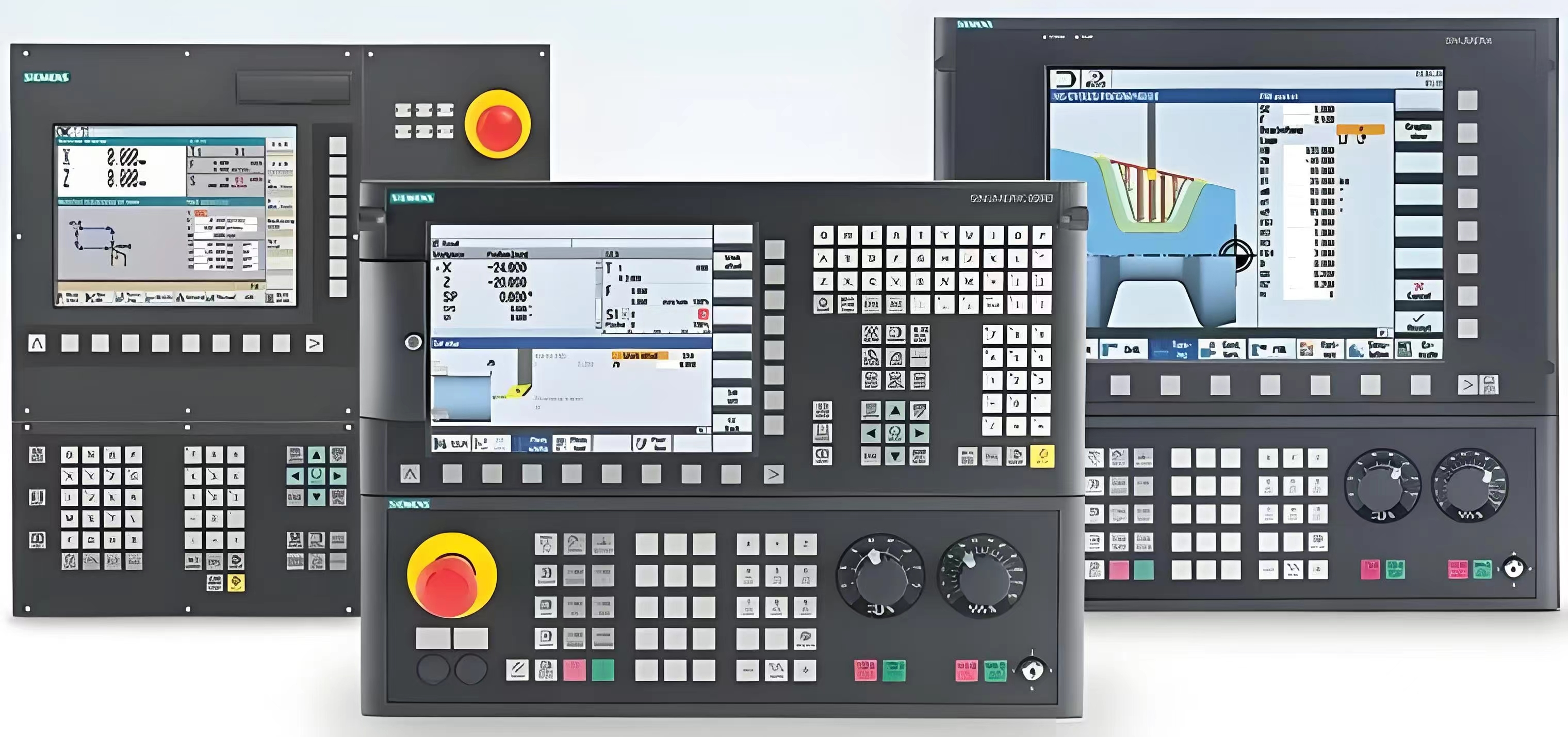

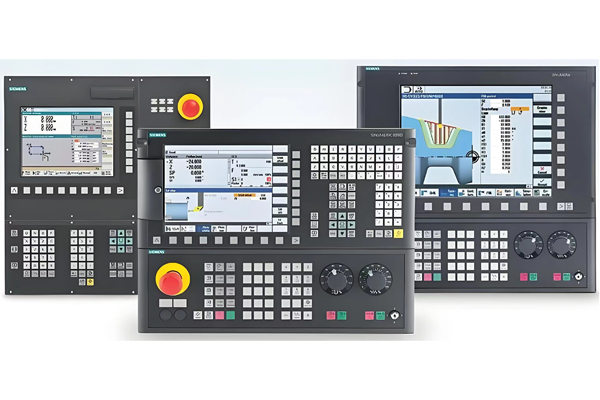

System

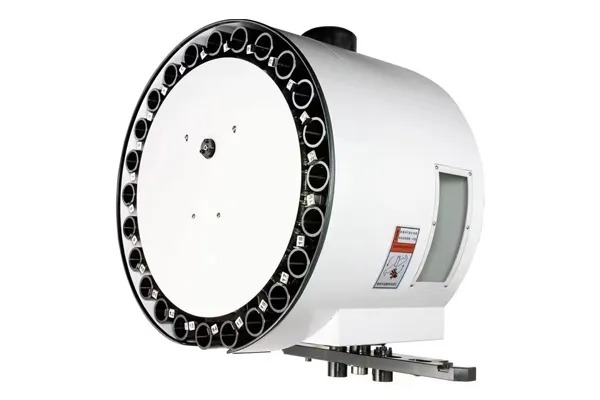

Magazine tool

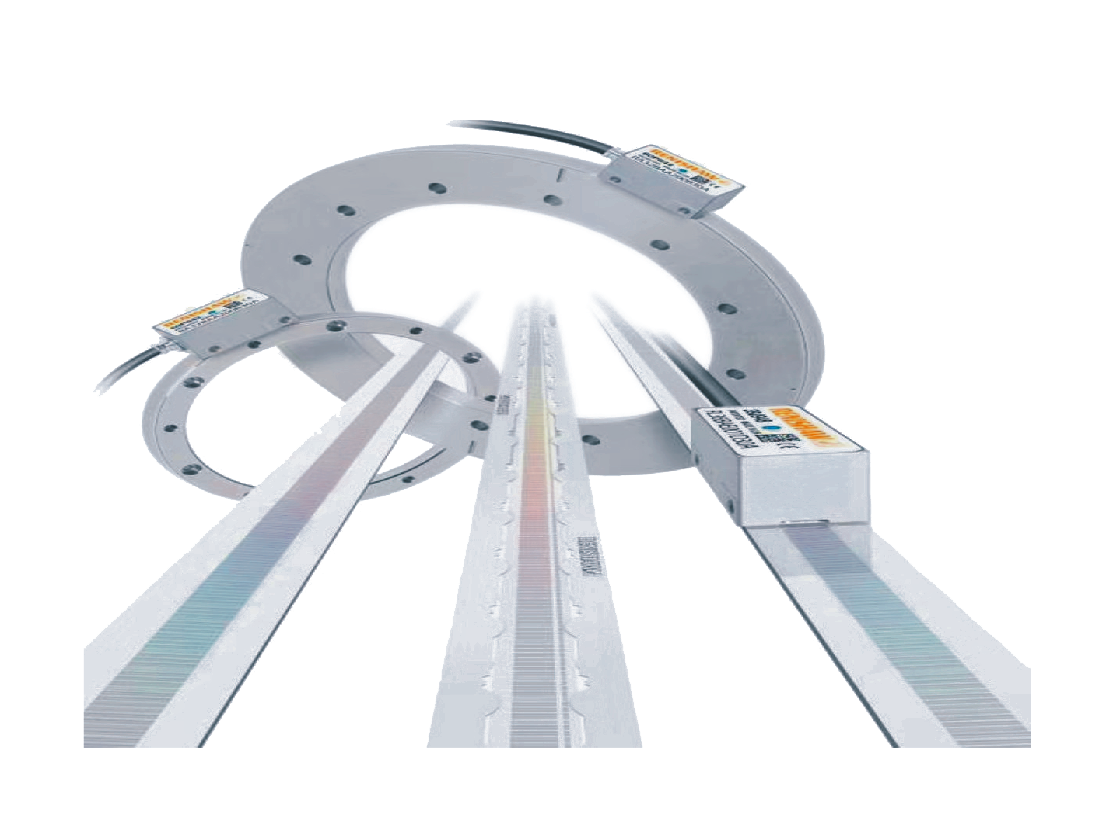

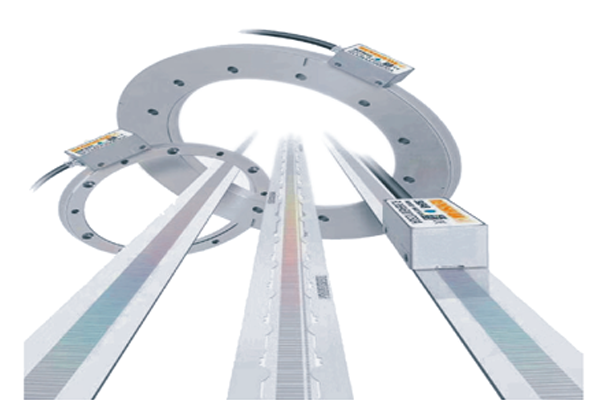

Grating ruler

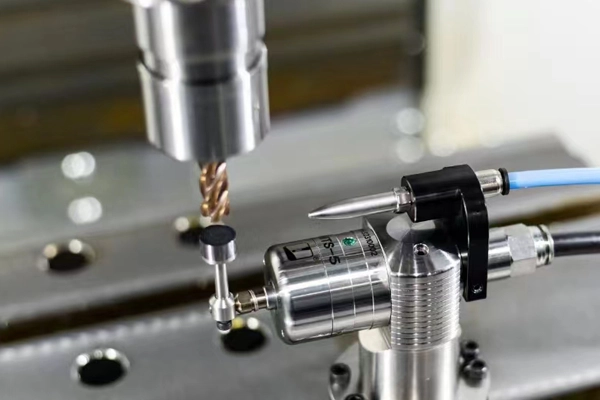

Tool setter

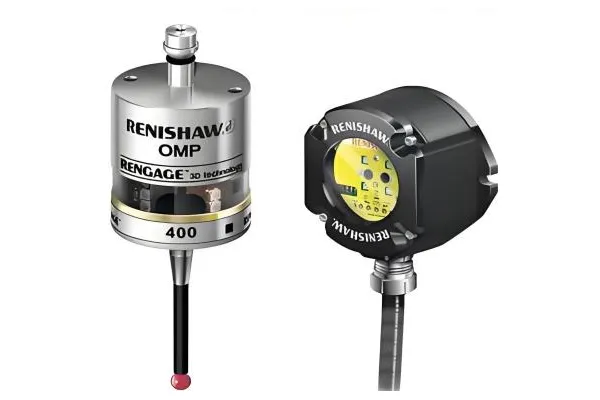

On-line detection

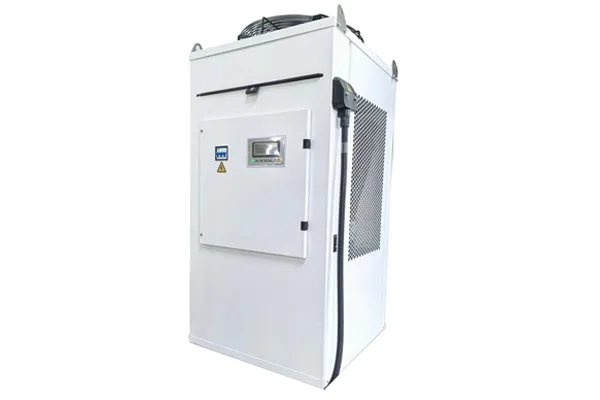

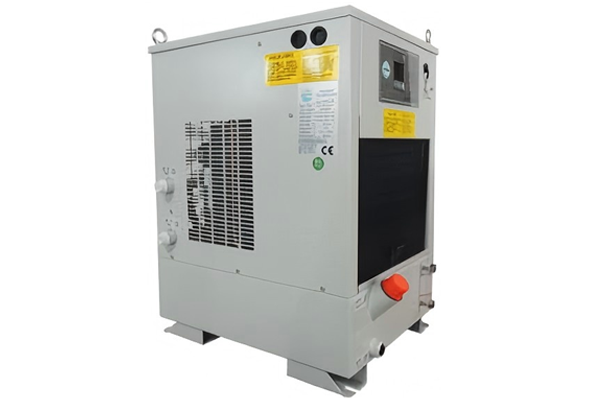

Oil cooler

Chip remover
WORKPIECE

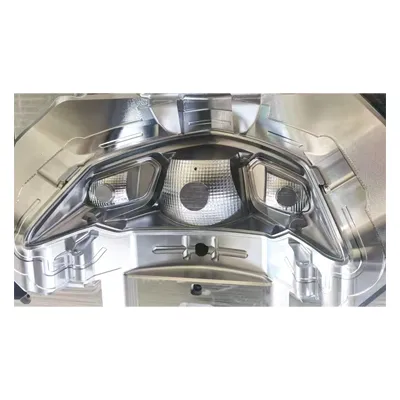

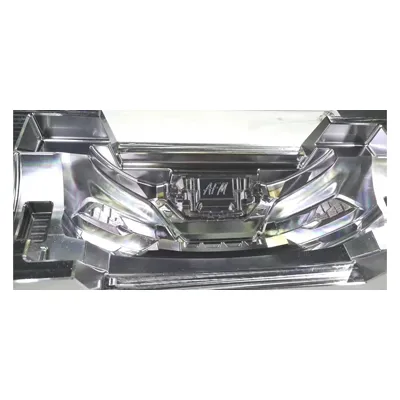

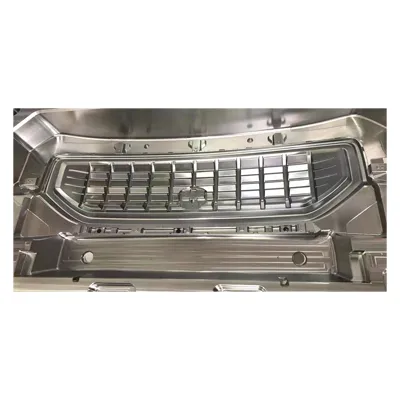

Automobile lamp mould

Automobile lamp mould

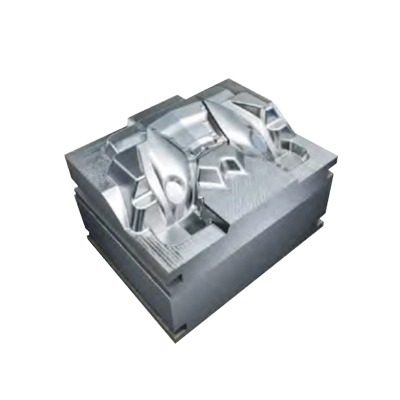

Automobile mould

Automobile lamp mould

Automobile mould

Black box

Automobile lamp mould

Aircraft swings
TECHNICAL PARAMETER
Mechanical Specification Unit C&F260 C&F320 C&F400
Processing range X-axis travel mm 500 600 700
Y-axis travel mm 500 500 500
Z-axis travel mm 450 450 500
BC-axis travel mm ±120 °/360° ±120 °/360° ±120 °/360°
Distance from spindle center to table surface mm 30-480 30-480 50-550
Distance from spindle end face to work surface mm 30-480 120-720  50-650
Table specification Workbench size (X/Y) mm Φ260 Φ320 Φ400
Workbench quantity pc 1 1 1
Workbench bearing kg 200 300 400
T-slot specification mm 12H8 14H8 14H8
Spindle specification Spindle speed rpm 12000/ 15000/ 20000/ 24000
Transmission mode mm Direct connection/ Inner Tibetan spindle
Spindle specification / BT40/ BBT40/ HSK A63
Spindle power kw 15/ 18.5/ 20
System CNC system / SYNTEC/ FANUC/ Siemens
Tool Magazine Capacity T 24
Feed X/Y/Z axis fast feed m/min 32/32/32 36/36/36 36/36/36
X/Y/Z axis cutting feed m/min 1-10 1-10 1-10
BC axis fast forward speed m/min 20/30  20/30  20/30
Accuracy Positioning accuracy mm ±0.005
Repeated positioning accuracy mm ±0.003
Triaxial rail X/Y/Z axis guide specification mm 35/35/35 45/45/45 45/45/45
Machine Specification Main machine dimensions  mm 2200*2000*2500 2400*2200*2600 3000*2600*3000
Main engine weight  T 5 7 9
Because technology is constantly updated, the above parameters is only for your reference
