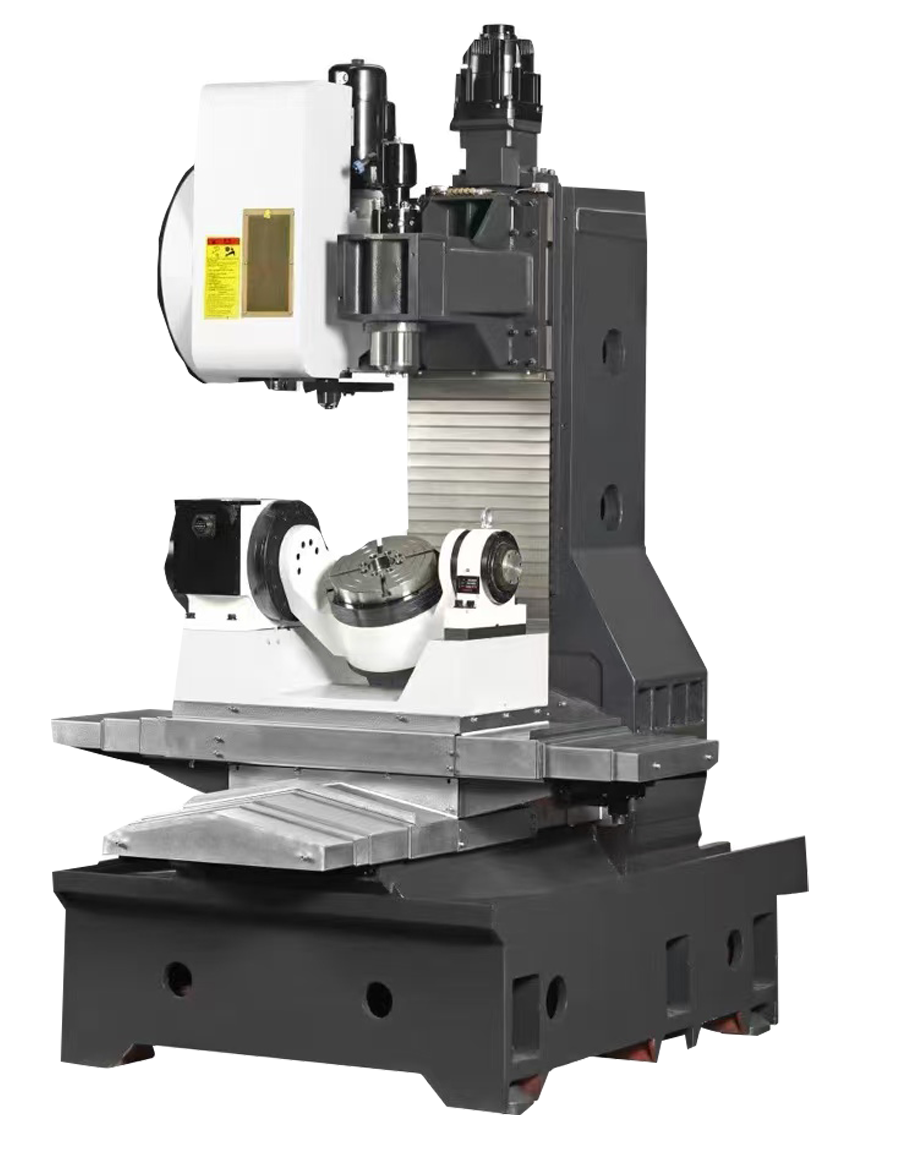

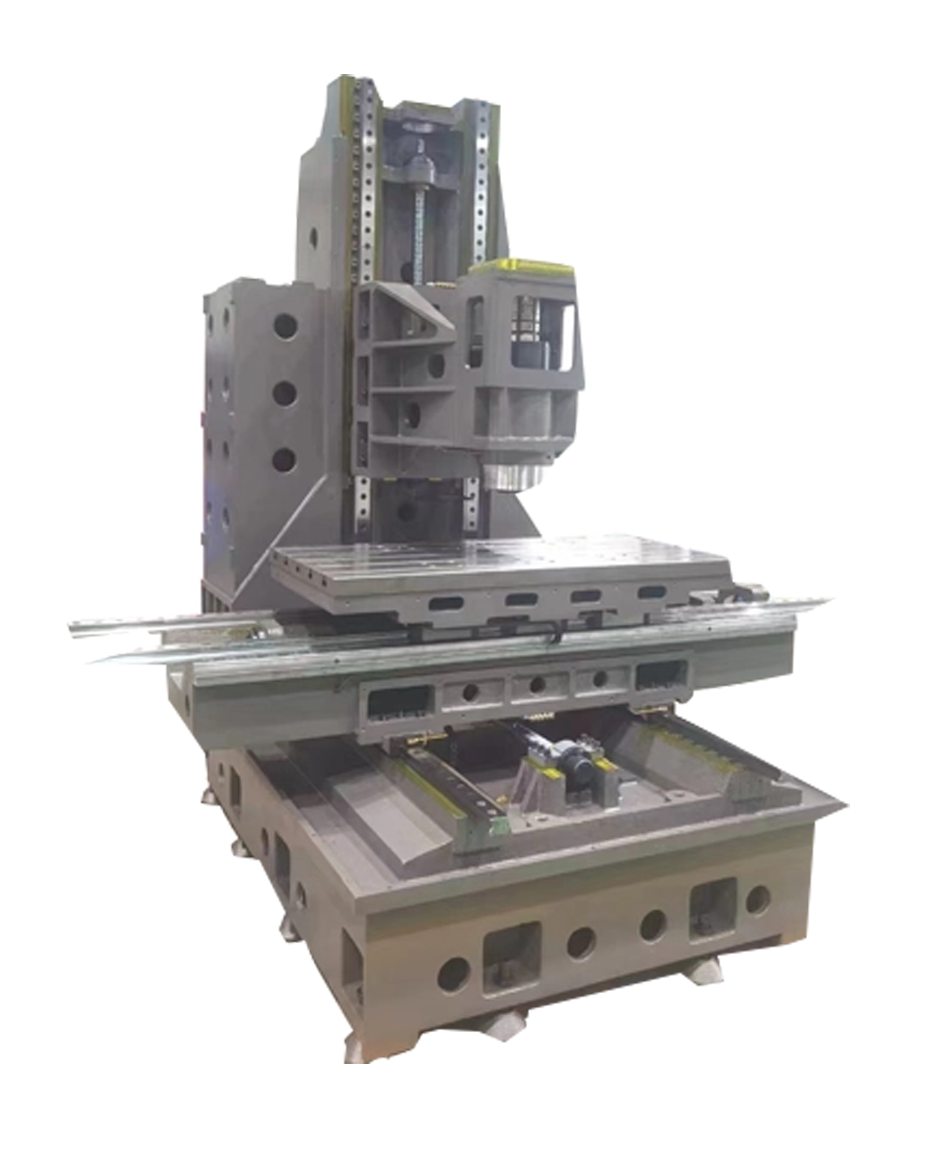

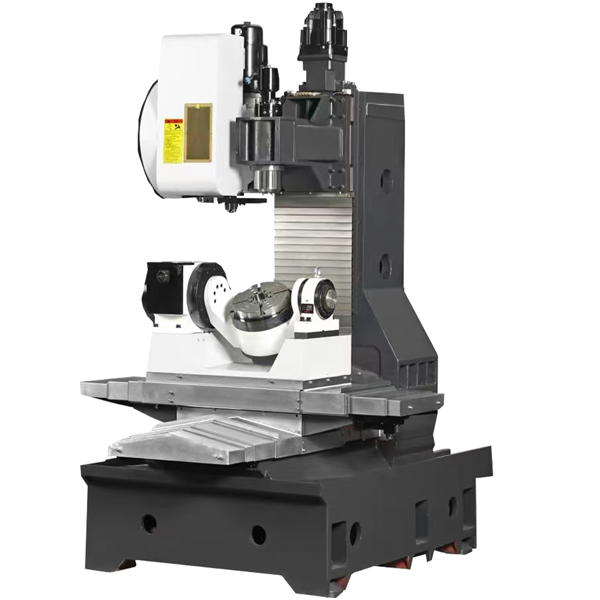

The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability

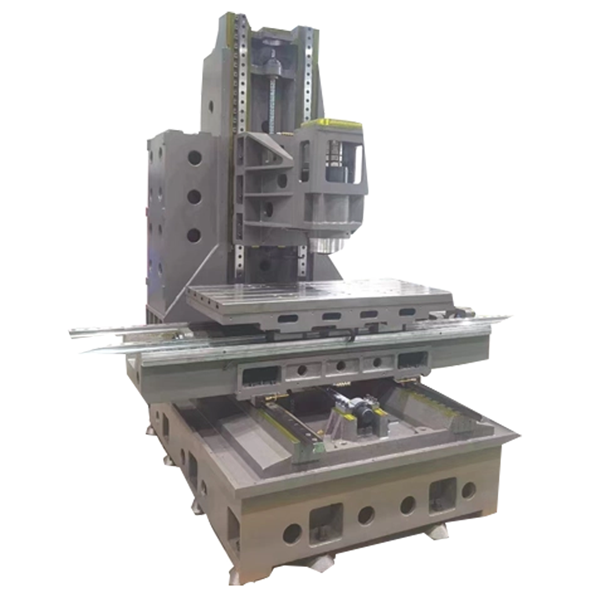

Integrated screw base and motor base to ensure high rigidity and stabilit

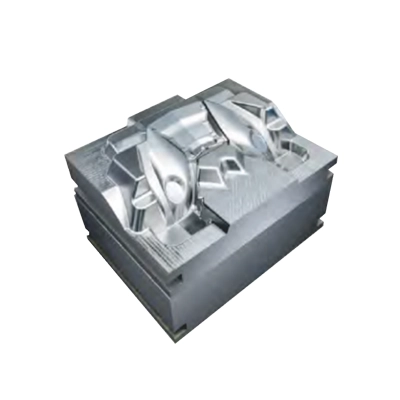

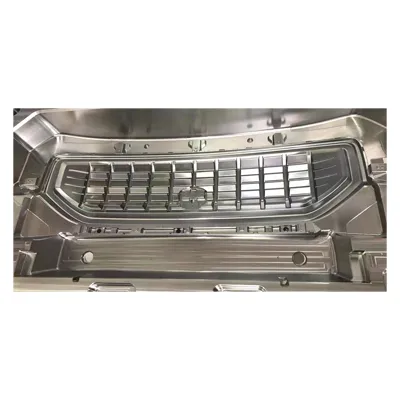

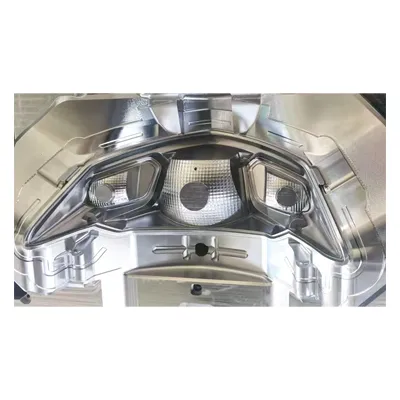

Suitable for aerospace, high precision mold, parts, 3C, 5G parts processing tool.

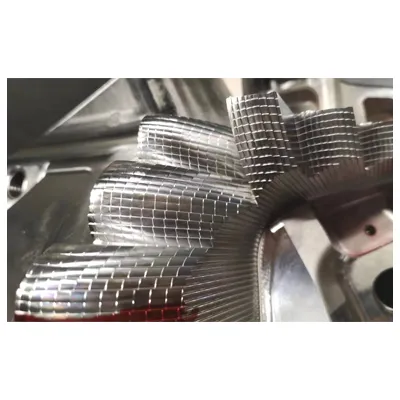

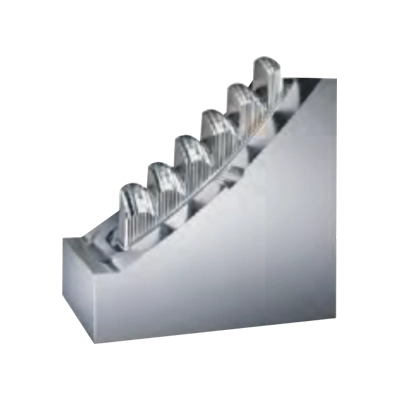

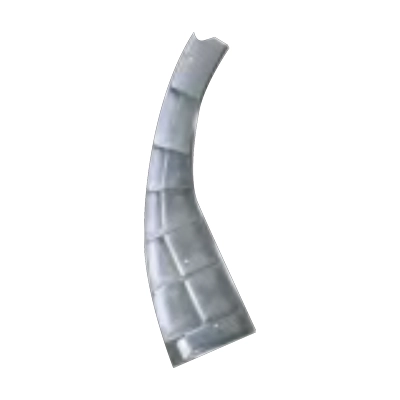

High-end impeller machining/surface, curve, universal machining
| Mechanical Specification | Unit | C&F260 | C&F320 | C&F400 | |
| Processing range | X-axis travel | mm | 500 | 600 | 700 |
| Y-axis travel | mm | 500 | 500 | 500 | |
| Z-axis travel | mm | 450 | 450 | 500 | |

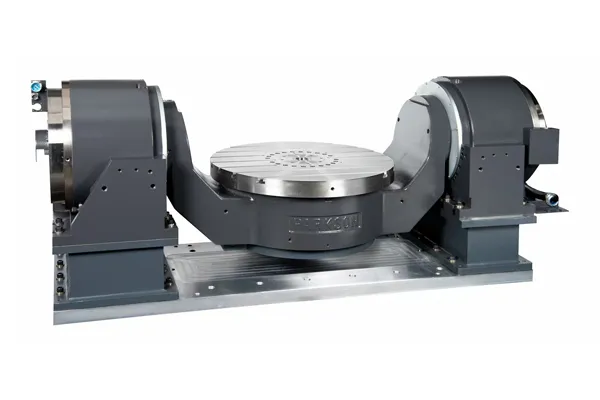

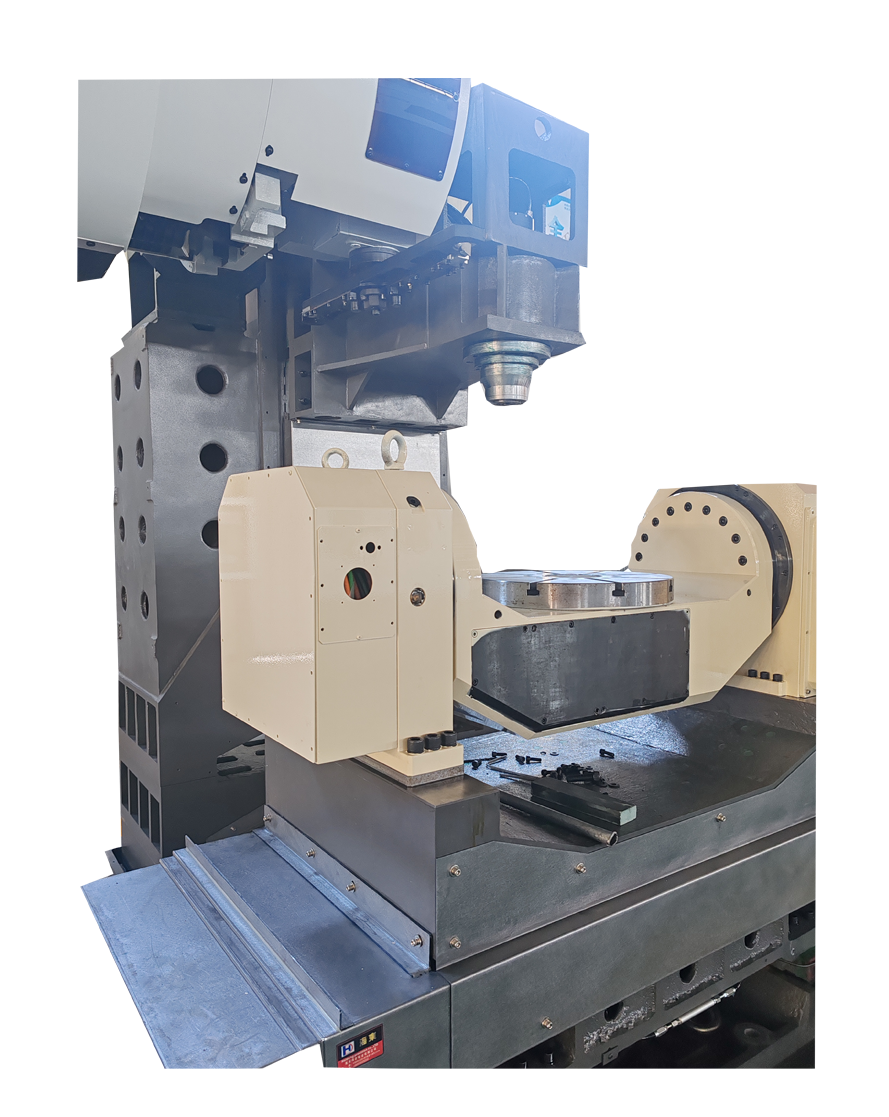

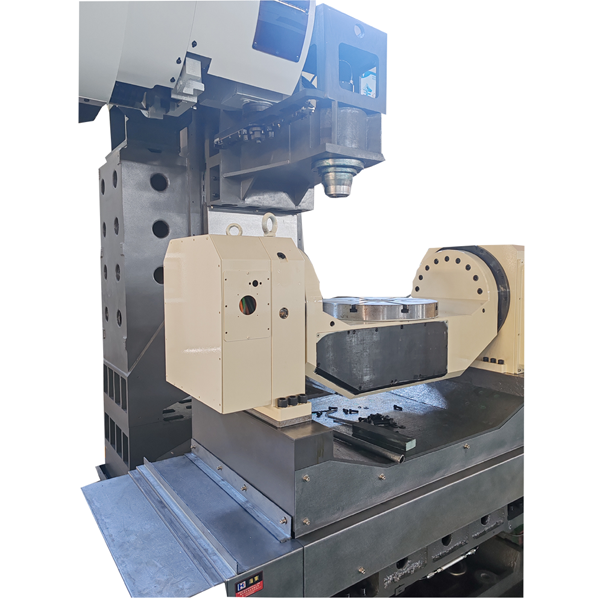

| BC-axis travel | mm | ±120 °/360° | ±120 °/360° | ±120 °/360° | |
| Distance from spindle center to table surface | mm | 30-480 | 30-480 | 50-550 | |
| Distance from spindle end face to work surface | mm | 30-480 | 120-720 | 50-650 | |
| Table specification | Workbench size (X/Y) | mm | Φ260 | Φ320 | Φ400 |
| Workbench quantity | pc | 1 | 1 | 1 | |
| Workbench bearing | kg | 200 | 300 | 400 | |
| T-slot specification | mm | 12H8 | 14H8 | 14H8 | |
| Spindle specification | Spindle speed | rpm | 12000/ 15000/ 20000/ 24000 | ||
| Transmission mode | mm | Direct connection/Inner Tibetan spindle | |||
| Spindle specification | / | BT40/ BBT40/ HSK A63 | |||
| Spindle power | kw | 15/ 18.5/ 20 | |||

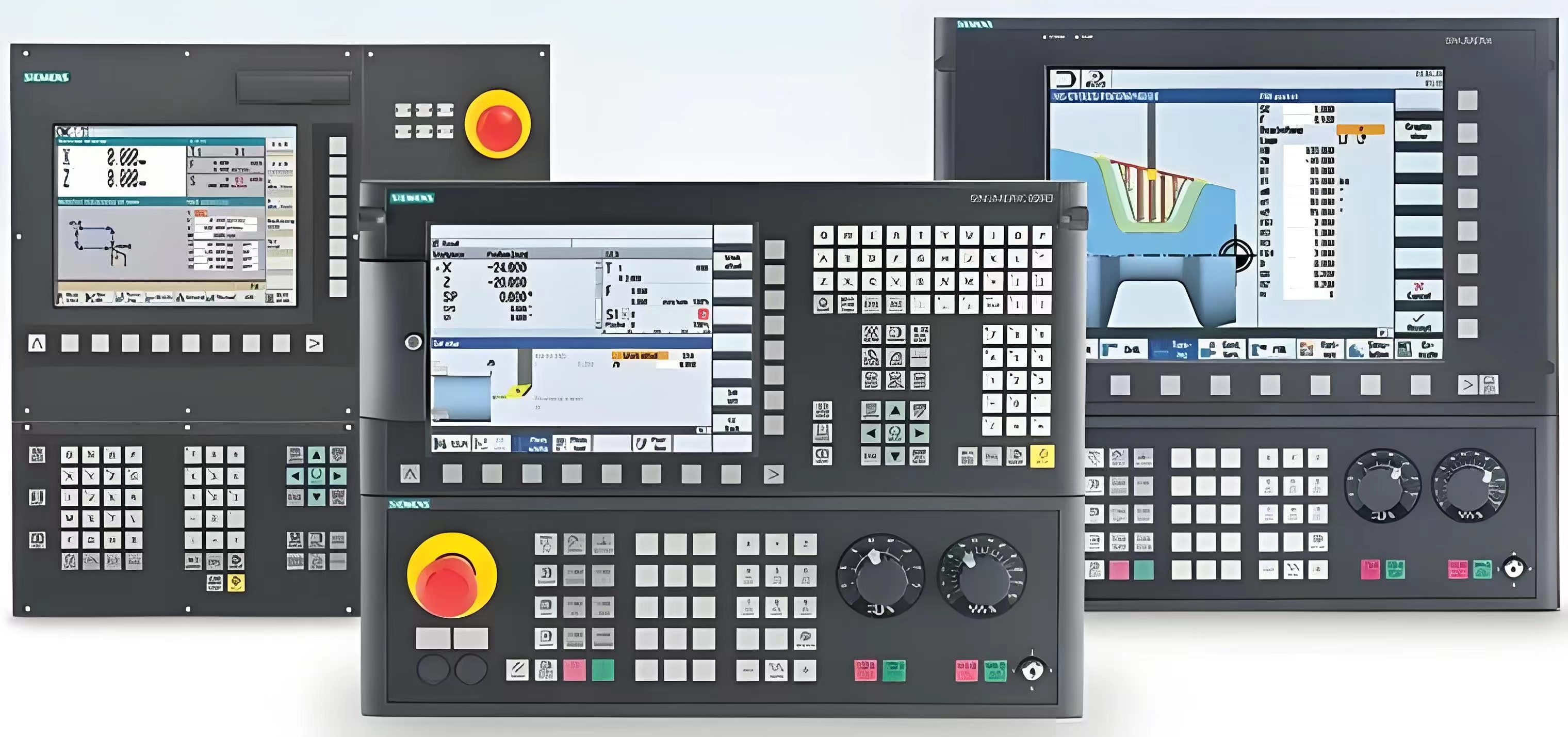

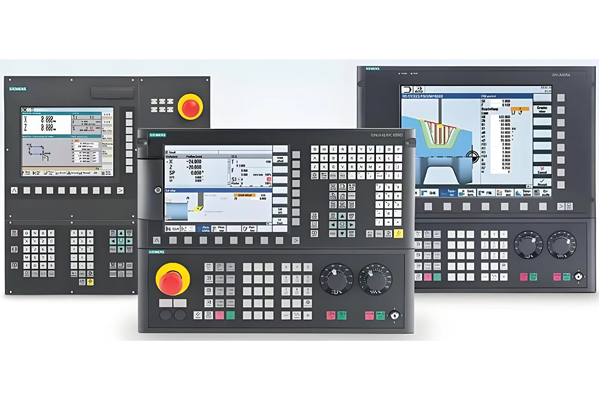

| System | CNC system | / | SYNTEC/ FANUC/ Siemens | ||
| Tool Magazine | Capacity | T | 24 | ||
| Feed | X/Y/Z axis fast feed | m/min | 32/32/32 | 36/36/36 | 36/36/36 |
| X/Y/Z axis cutting feed | m/min | 1-10 | 1-10 | 1-10 | |
| BC axis fast forward speed | m/min | 20/30 | 20/30 | 20/30 | |
| Accuracy | Positioning accuracy | mm | ±0.005 | ||
| Repeated positioning accuracy | mm | ±0.003 | |||
| Triaxial rail | X/Y/Z axis guide specification | mm | 35/35/35 | 45/45/45 | 45/45/45 |
| Machine Specification | Main machine dimensions | mm | 2200*2000*2500 | 2400*2200*2600 | 3000*2600*3000 |
| Main engine weight | T | 5 | 7 | 9 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||||
