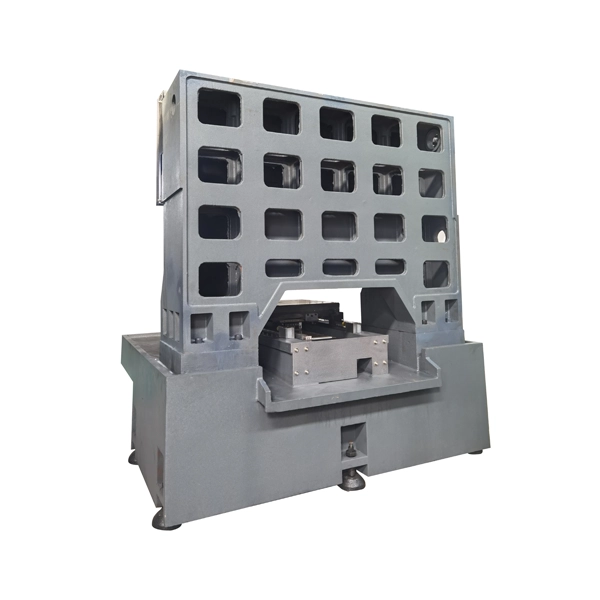

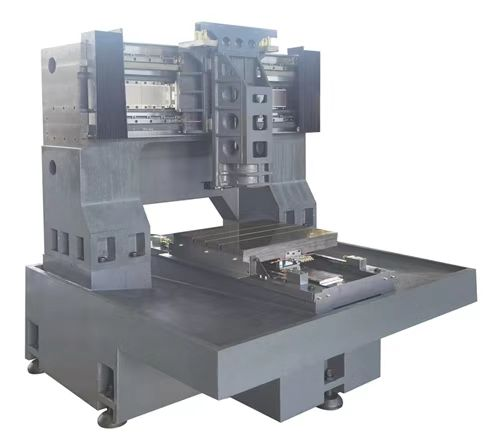

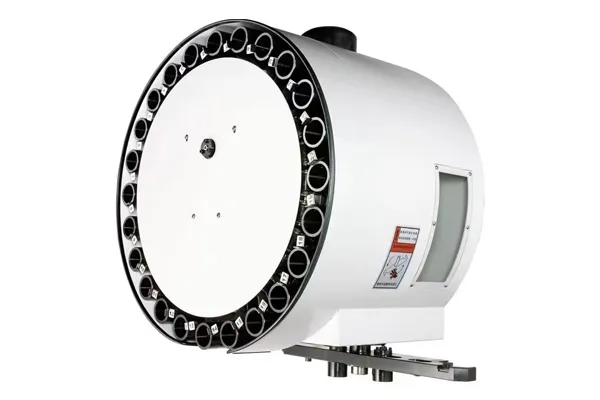

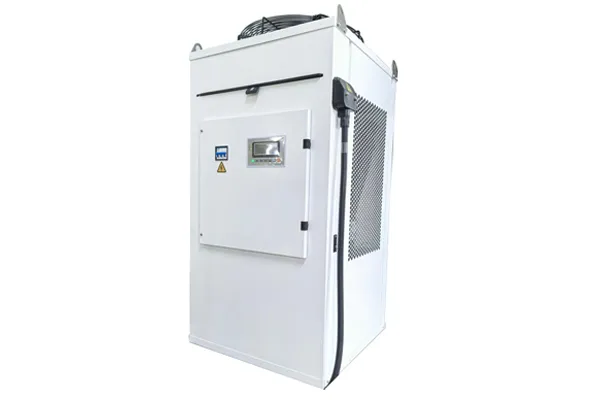

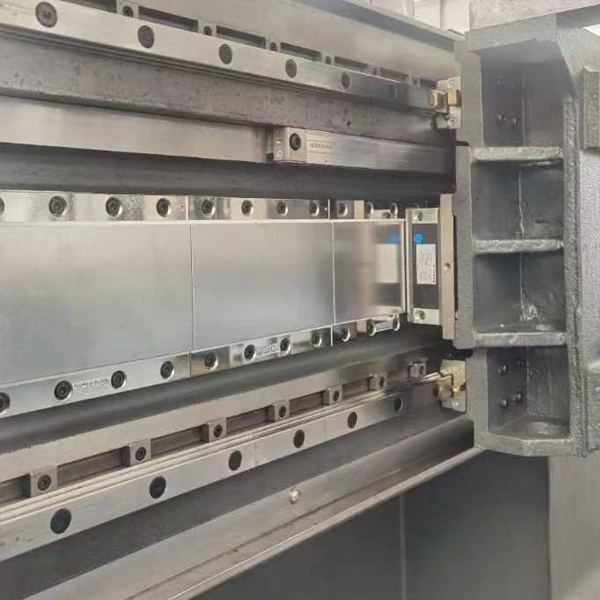

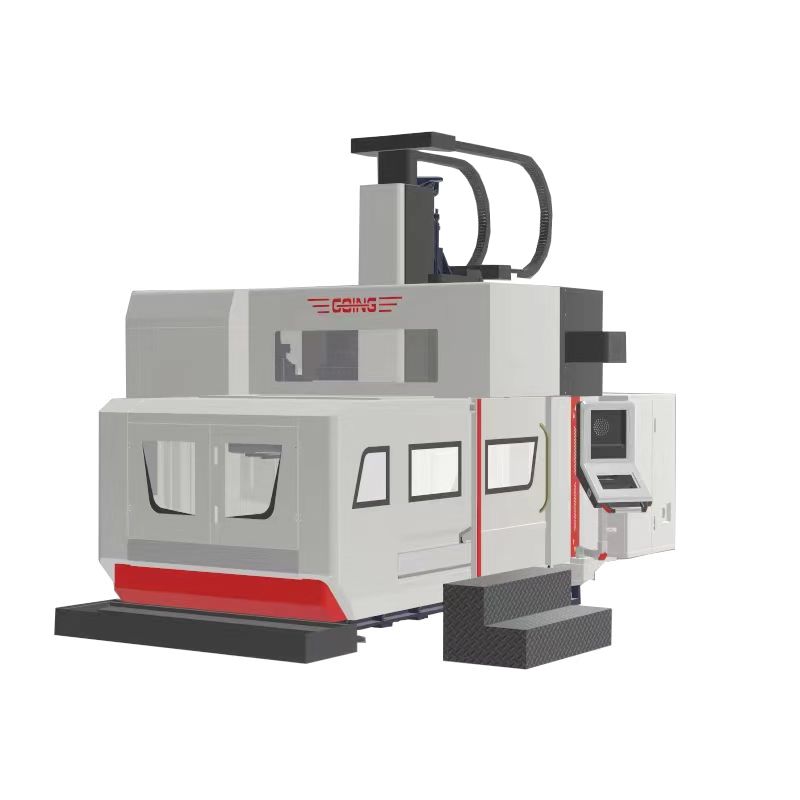

The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability

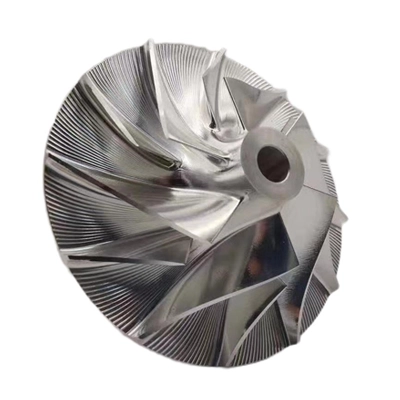

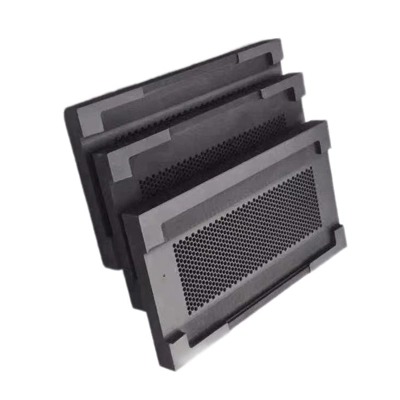

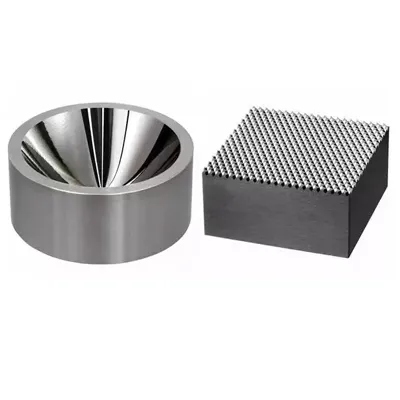

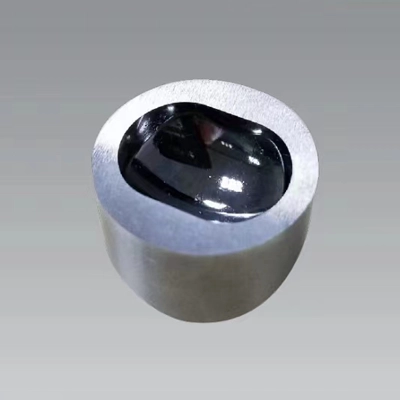

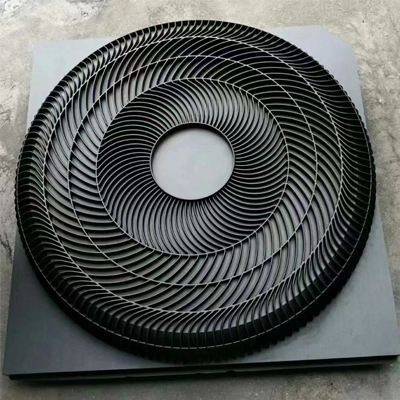

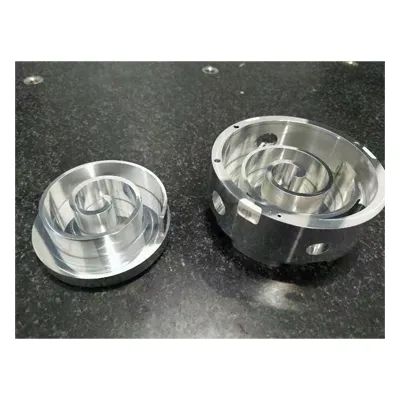

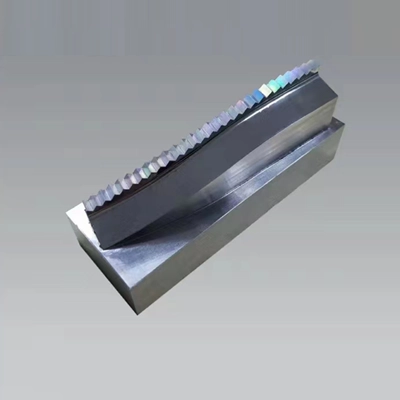

Suitable for 3C, 5G, glass, graphite, electrode, ceramic, automobile lamp mold, copper electrode processing, high precision processing

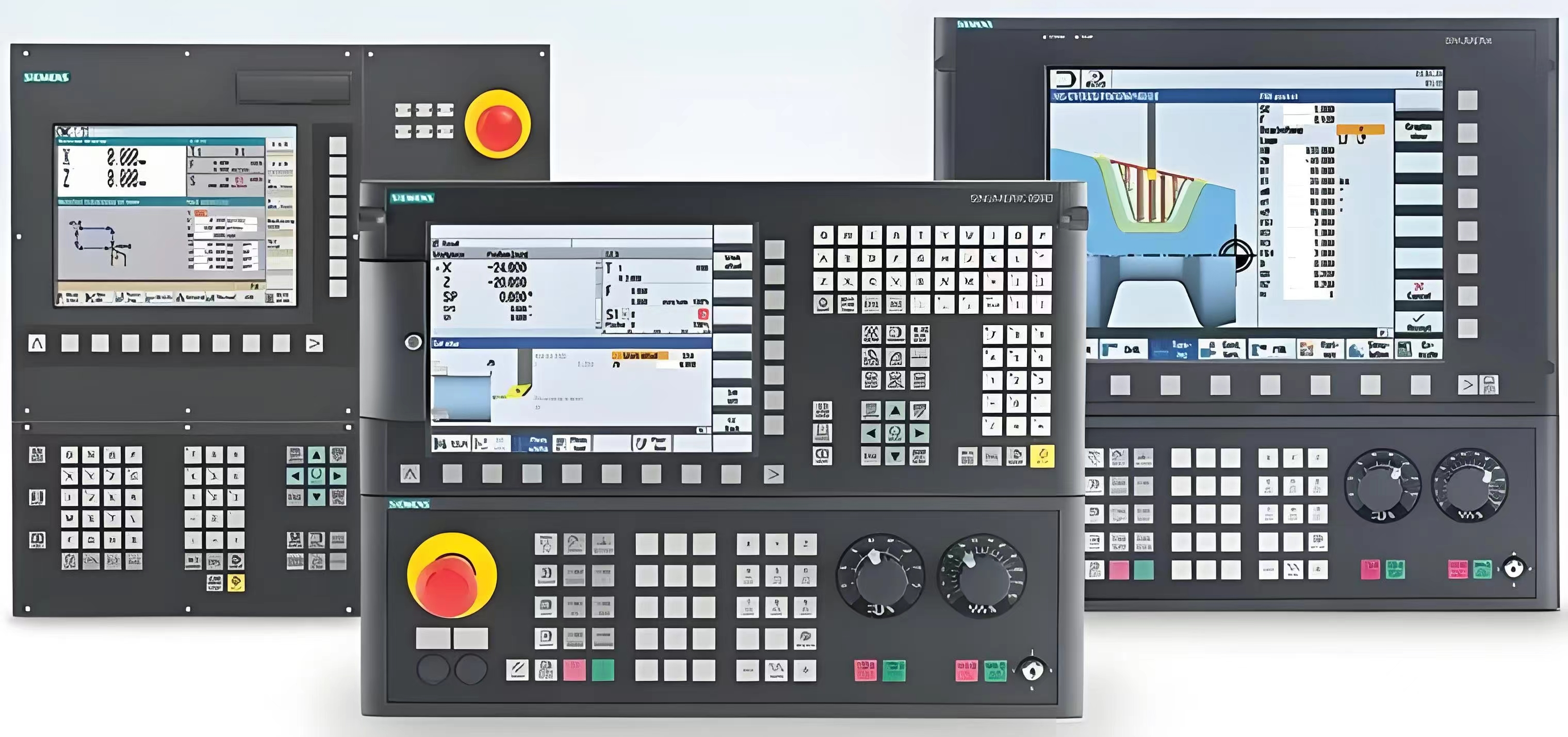

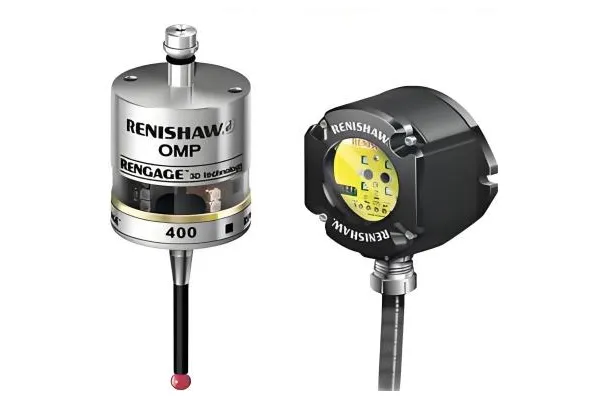

| Specifications/Models | Unit | GY-1614 | GY-2015 | GY-2518 | GY-3022 | GY-4025 | GY-5022 | GY-6035 | GY-8035 | |
Processing range |

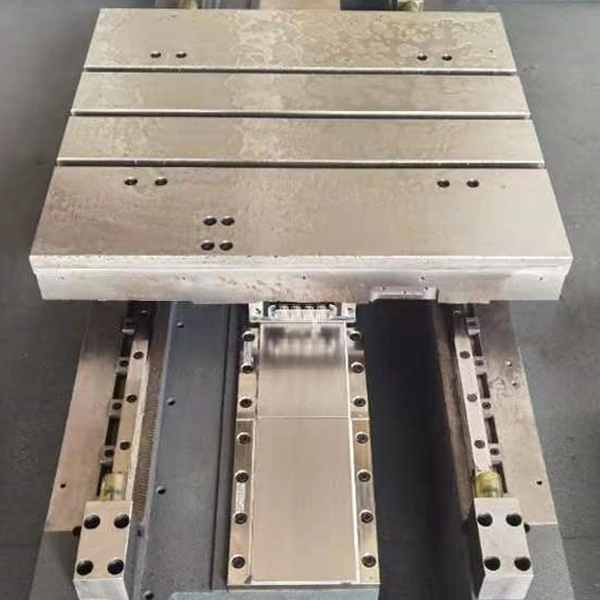

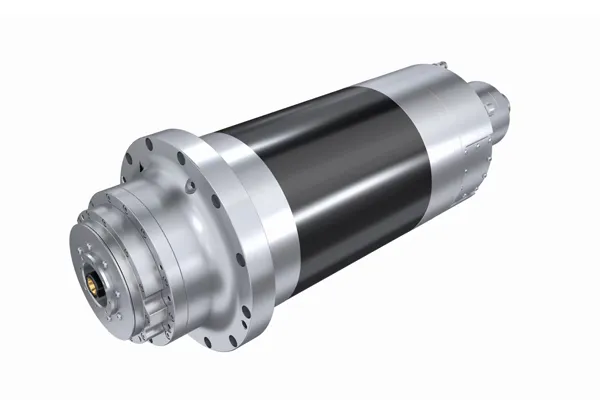

X-axis travel | mm | 1600 | 2000 | 2500 | 3000 | 4000 | 5000 | 6200 | 8200 |
| Y-axis travel | mm | 1400 | 1500 | 1800 | 2400 | 2700 | 2400 | 3500 | 3500 | |
| Z-axis travel | mm | 750 | 800 | 900 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Distance from spindle nose to work surface | mm | 200-950 | 170-970 | 180-980 | 200-1200 | 260-1260 | 260-1260 | 310-1310 | 310-1310 | |
| Gantry width | mm | 1500 | 1520 | 1850 | 2250 | 2250 | 2250 | 3500 | 3500 | |
| Table specification | Table size (X-axis direction) | mm | 1800 | 2100 | 2700 | 1900 | 2300 | 1900 | 6000 | 8000 |
| Table size (Y-axis direction) | mm | 1400 | 1200 | 1500 | 3100 | 4100 | 5100 | 2500 | 2500 | |
| Table T-slot dimensions | mm | 7*22*160 | 7*22*150 | 7*22*200 | 9*22*200 | 9*22*200 | 9*22*200 | 12*28*200 | 12*28*200 | |
| Maximum bearing capacity of table | T | 6 | 8 | 10 | 12 | 13 | 15 | 20 | 22 | |
| Main specifications | Speed of mainshaft | rpm | 6000/8000/10000/12000 | 6000/8000 | ||||||
| Spindle motor power | kw | 18/22 | 22/25 | |||||||
| Spindle nose code | / | BT40/HSK A63/ BT50/ HSK A100 | ||||||||
| Kind of drive | / | Belt Type/ Direct connection/Gear type | ||||||||
| Feed | X, Y, Z axis fast feed | m/min | 24/24/24 | 12/12/10 | 12/12/10 | 12/12/10 | 12/12/10 | 12/12/10 | 8/10/10 | 8/10/10 |
| Cutting feed | m/min | 6 | 6 | 7 | 7 | 7 | 7 | 7 | 7 | |
| X, Y, Z axis motor specifications | Nm | 30/30/30 | 40/30/30 | 40/30/30 | 50/30/30 | 63/36/36 | 70/30/40 | 70/30/40 | 75/40/40 | |
| Precision | Positional accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.008/300 | ±0.008/300 | ±0.01/300 | ±0.01/300 | ±0.01/300 | ±0.01/300 |
| Repeated positioning accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.005/300 | ±0.005/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 | |
| Machine Specification | Machine size | mm | 5000*3200*4200 | 5600*3500*4500 | 7140*4200*4580 | 7705*4650*5167 | 10670*4800*4700 | 14000*4700*5000 | 15500*6300*5200 | 19500*6300*5200 |
| Machine weight | T | 16 | 22 | 26 | 36 | 46 | 55 | 72 | 82 | |
| Because technology is constantly updated, the above parameters is only for your reference | ||||||||||
