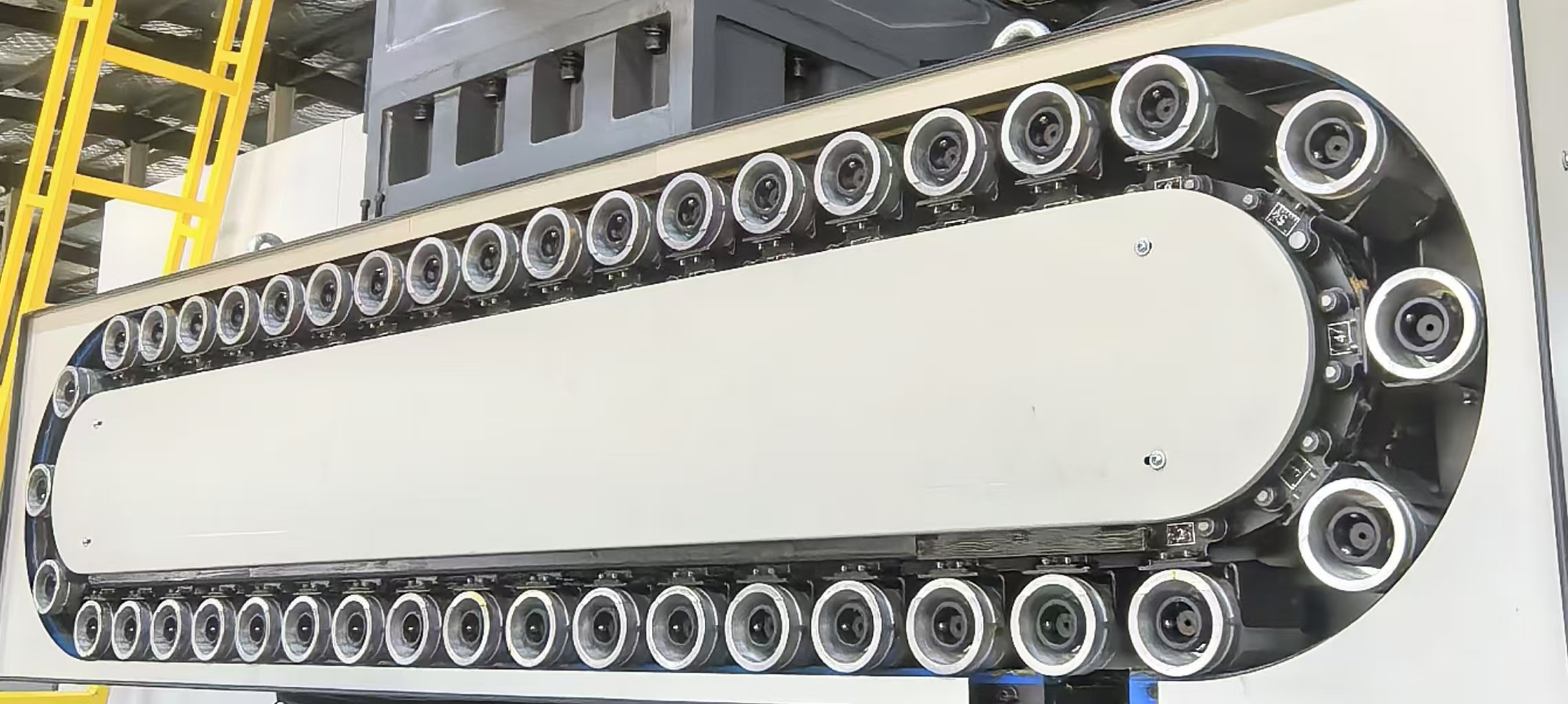

The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability
High rigidity, heavy cutting
Higher machining accuracy, more stable

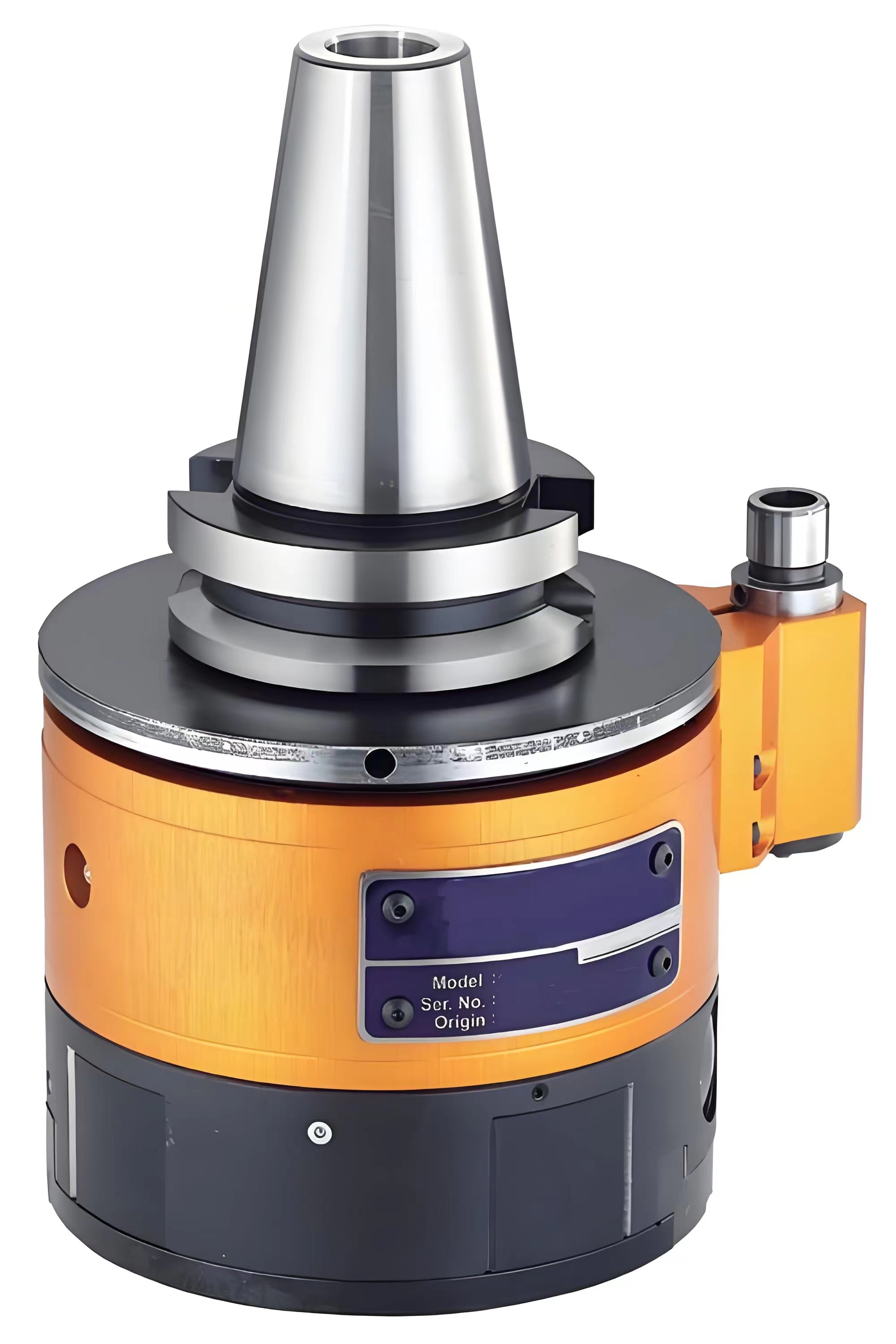

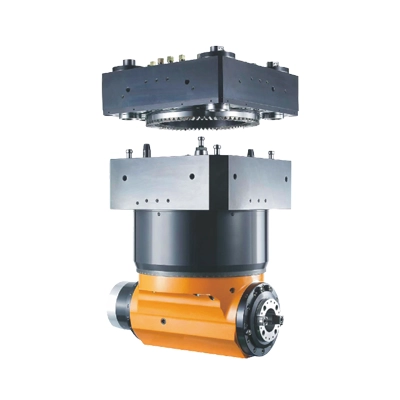

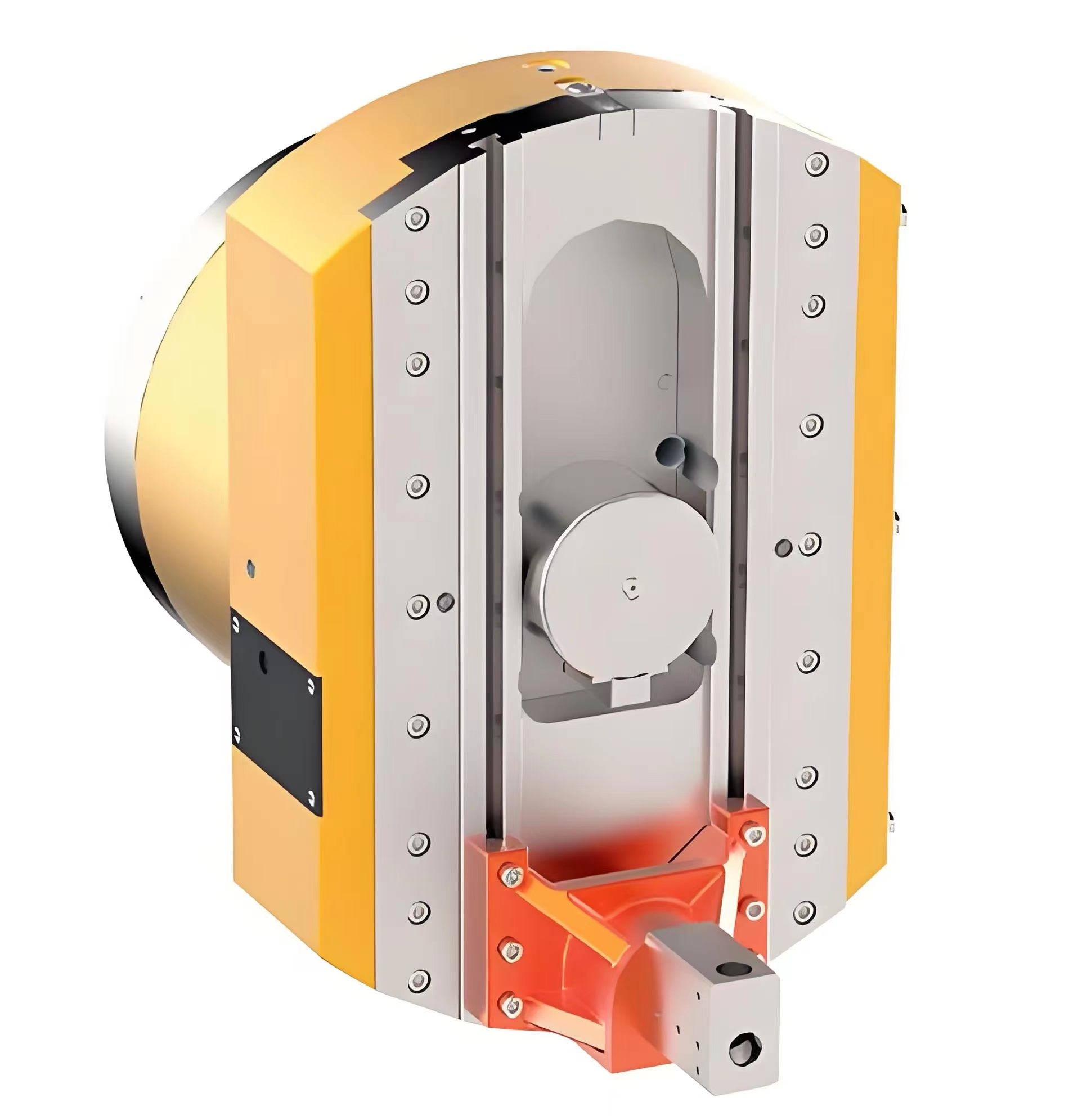

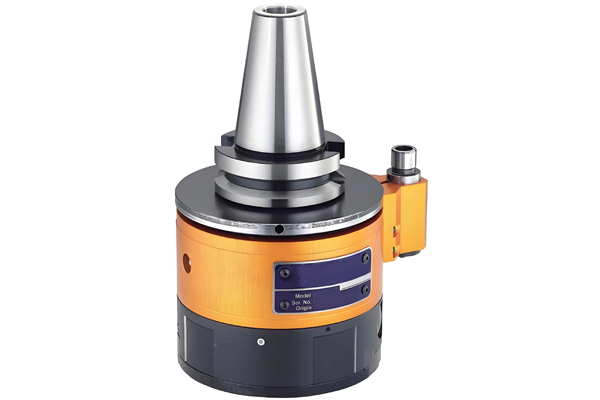

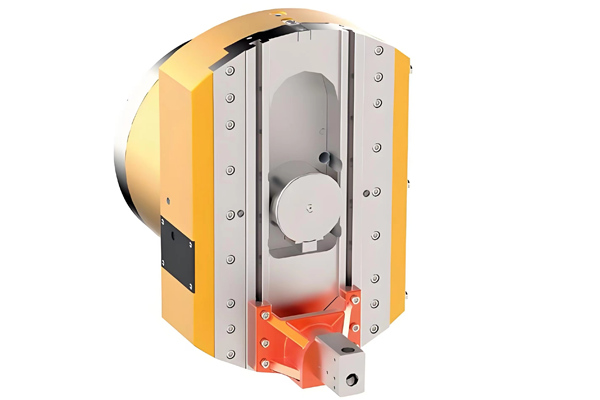

High precision, high speed spindle

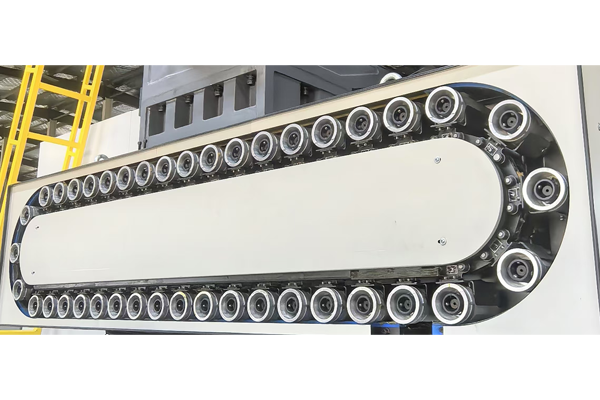

High speed spindle, higher efficiency
| Specifications/ Models | Unit | GY-110 | GY-130S | GY-130 | GY-130B | GY-160 | |
| Processing range | X-axis travel | mm | 2000 | 2000 | 3000 | 4000/3000 | 4000/3000 |
| Y-axis travel | mm | 2000 | 2000 | 2000 | 3000/2500 | 3000/2500 | |
| Z-axis travel | mm | 1400 | 140 | 1500 | 2000 | 2000 | |
| Spindle boring travel(W) | mm | 600 | 900 | 900 | 900 | 900 | |

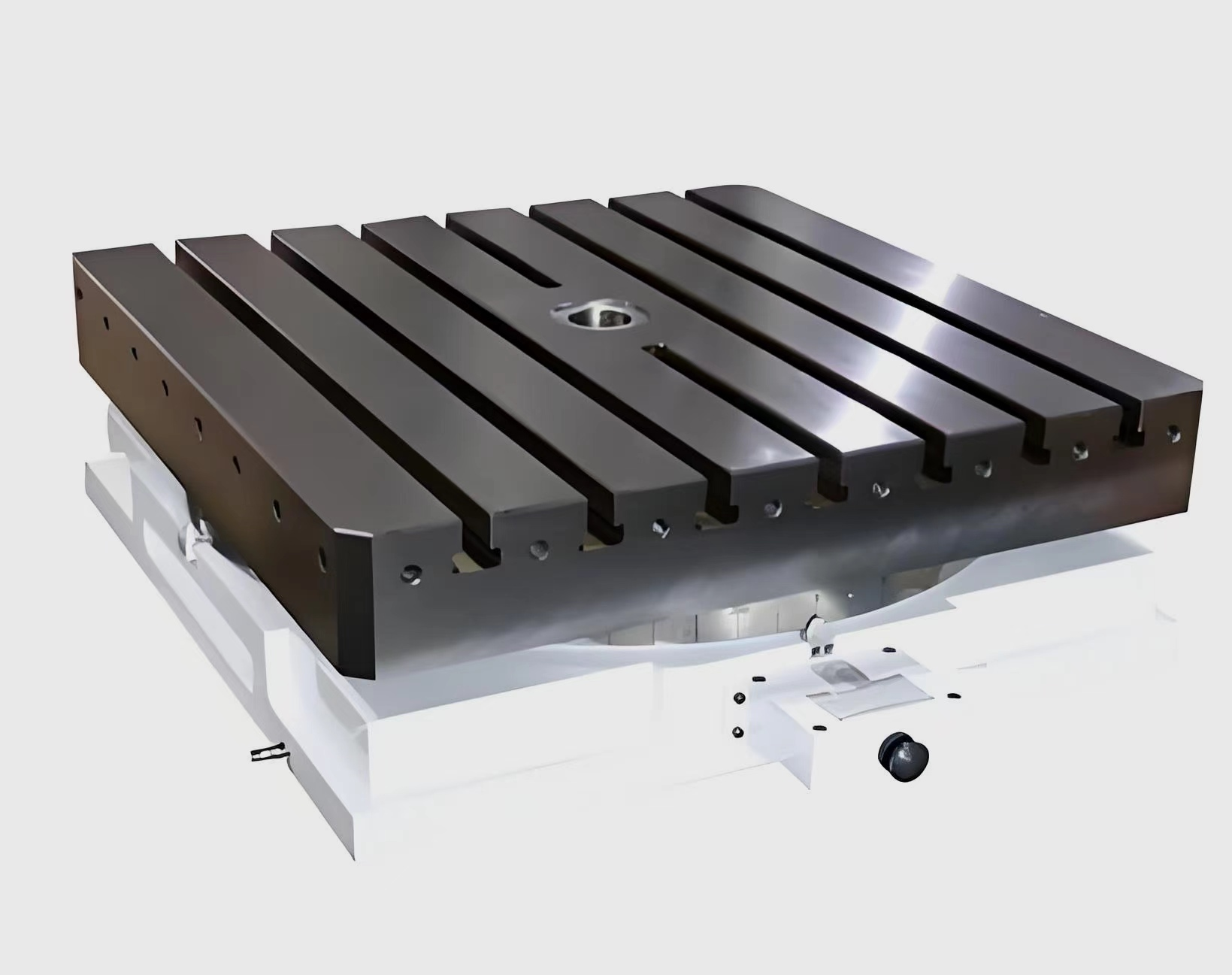

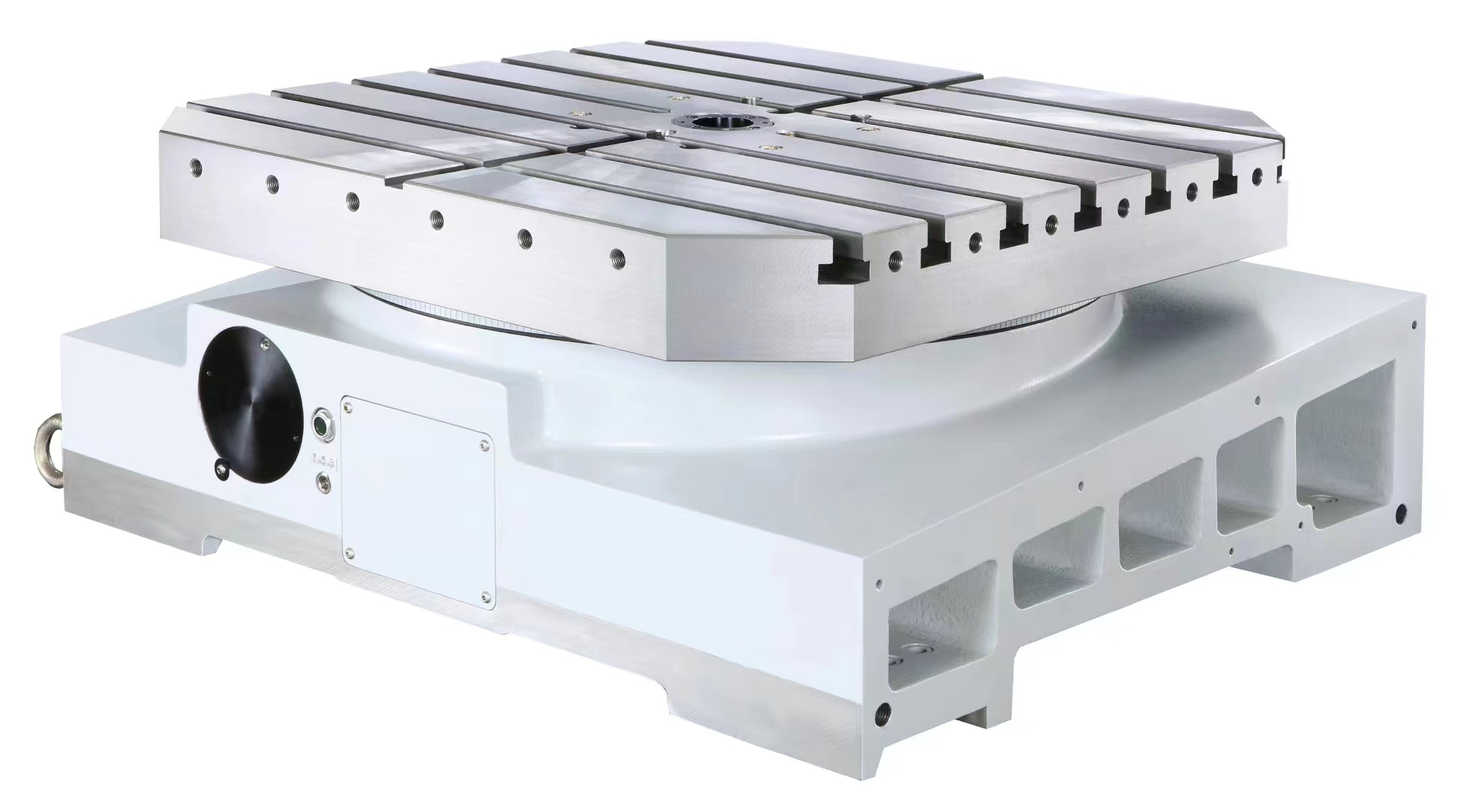

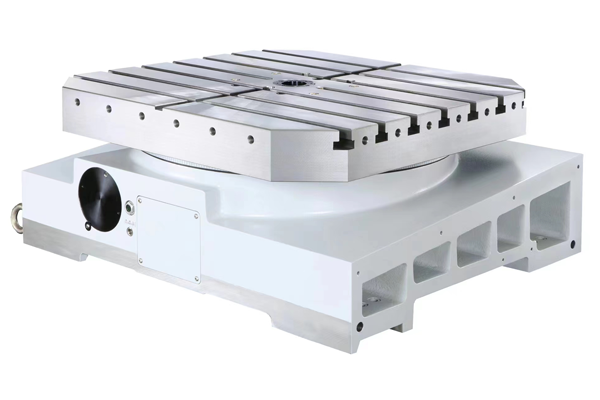

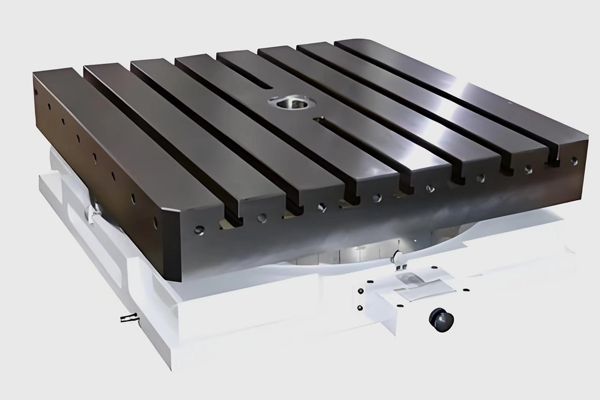

| Table specification | Table specification | mm | 1.3*1.4 | 1.4*1.6 | 1.8*2/1.6*1.8/2*2.5 | 2*2.5/2.5*3/2*3 | 2*2.5/2.5*3/2*3 |
| Table rotation angle | ° | 360 | |||||
| Maximum bearing capacity of table | T | 5 | 10 | 15/10/15/20 | 20 | 15/20/25/40 | |
| T-slot dimensions | mm | 28 | |||||
| Spindle | Spindle diameter | mm | 110 | 130 | 130 | 130 | 160 |
| Boring axis end diameter | mm | 221.4 | 221.44 | 221.4 | 221.44 | 260 | |
| Spindle rotation speed | r/min | 10～2000 | 7～2000 | 7～1500 | |||
| Max,spindle torque | nm | 1600 | 3800 | ||||
| Max. spindle resisting force | n | 15000 | 25000 | ||||
| Soindle motor power | kVA | 63 | 66 | 100 | 31 | 31 | |
| Spindle taper | / | ISO50 | |||||
| Spindle specification | / | BT50 | |||||
| Kind of drive | / | Direct type | |||||
| Feed | X/Y/Z/W cutting feed speed | mm | X/Z 1～6000/Y/W 1～4000 | X/Z 1～6000/Y/W 1～4000 | X/Y/Z 1～6000 W/1～4000 | X/Y/Z 1～6000/W1～2000 | X/Y/Z 1～4500 W/W1～2000 |
| B-axis cutting feed speed | r/min | 0.003～1 | 0.003～1 | 1 | 1 | 0.003～1 | |
| X、Z axis fast feed | mm | 10000 | 10000 | 10000 | X/Y/Z 6000 | X/Y/Z 6000 | |
| Y、W axis fast feed | mm | 6000 | 6000 | 6000 | W /4000 | W /4000 | |
| B axis fast feed | r/min | 1 | 1 | 1 | 8 | 1 | |
| Accuracy | X、Z axis accuracy | mm | 0.015 | 0.015 | 0.02 | 0.02 | 0.02 |
| Y、W axis accuracy | mm | 0.012 | 0.012 | 0.025 | 0.025 | 0.025 | |
| Baxis accuracy | ″ | 10 | 10 | 10 | 8 | 10 | |
| Repeating positioning accuracy | X、Z axis accuracy | mm | 0.015 | 0.015 | 0.02 | 0.02 | 0.02 |
| Y、W axis accuracy | mm | 0.02 | 0.02 | 0.02 | 0.025 | 0.02 | |
| B axis accuracy | ″ | 6 | 6 | 6 | 8 | 6 | |
| Machine specification | Machine size | mm | 5700*4500*4600 | 5700*4500*4600 | 8500*7000*5500 | 9500*8000*5500 | 9500*8000*5500 |
| Machine weight | T | 18.5 | 20 | 40 | 52 | 52 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||||||
