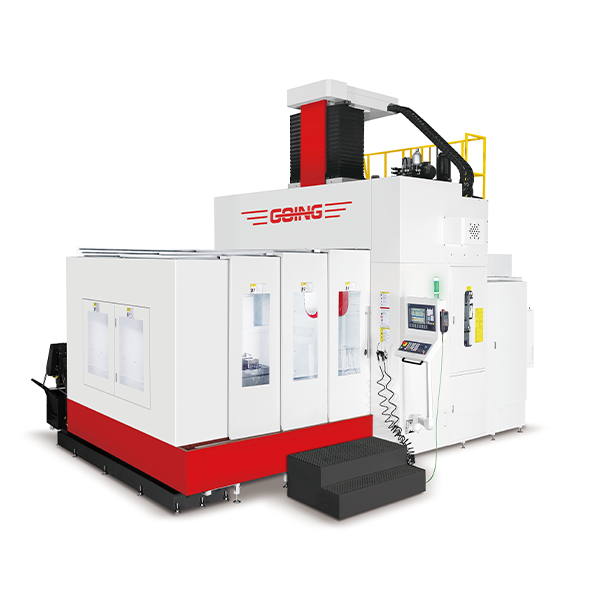

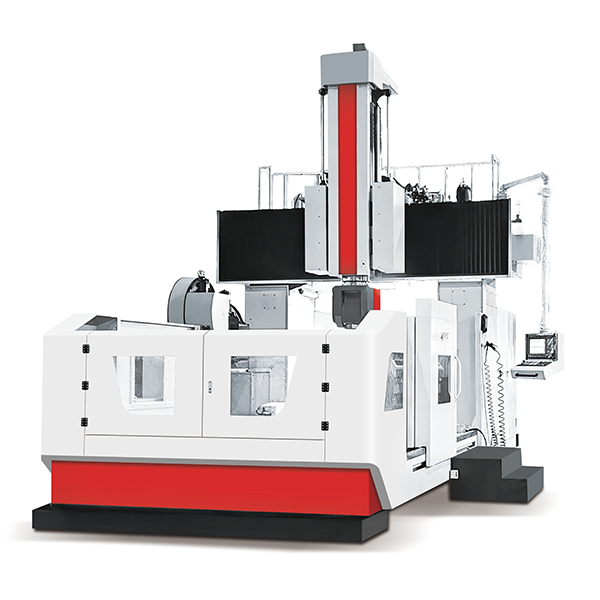

Gantry processing machine

1

2

3

4

5

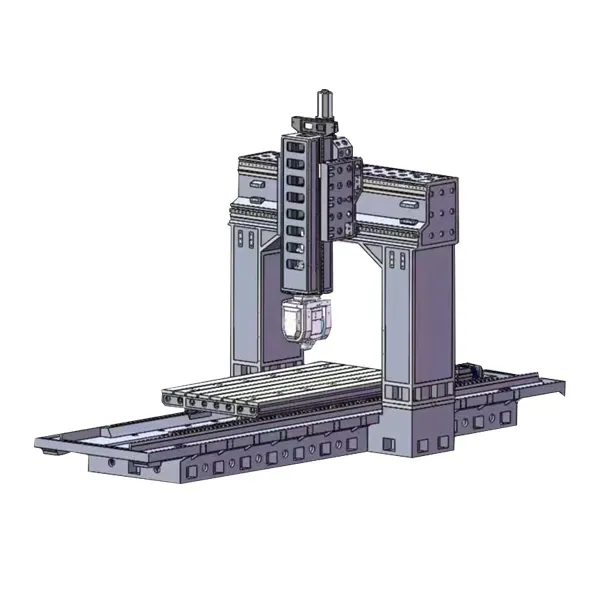

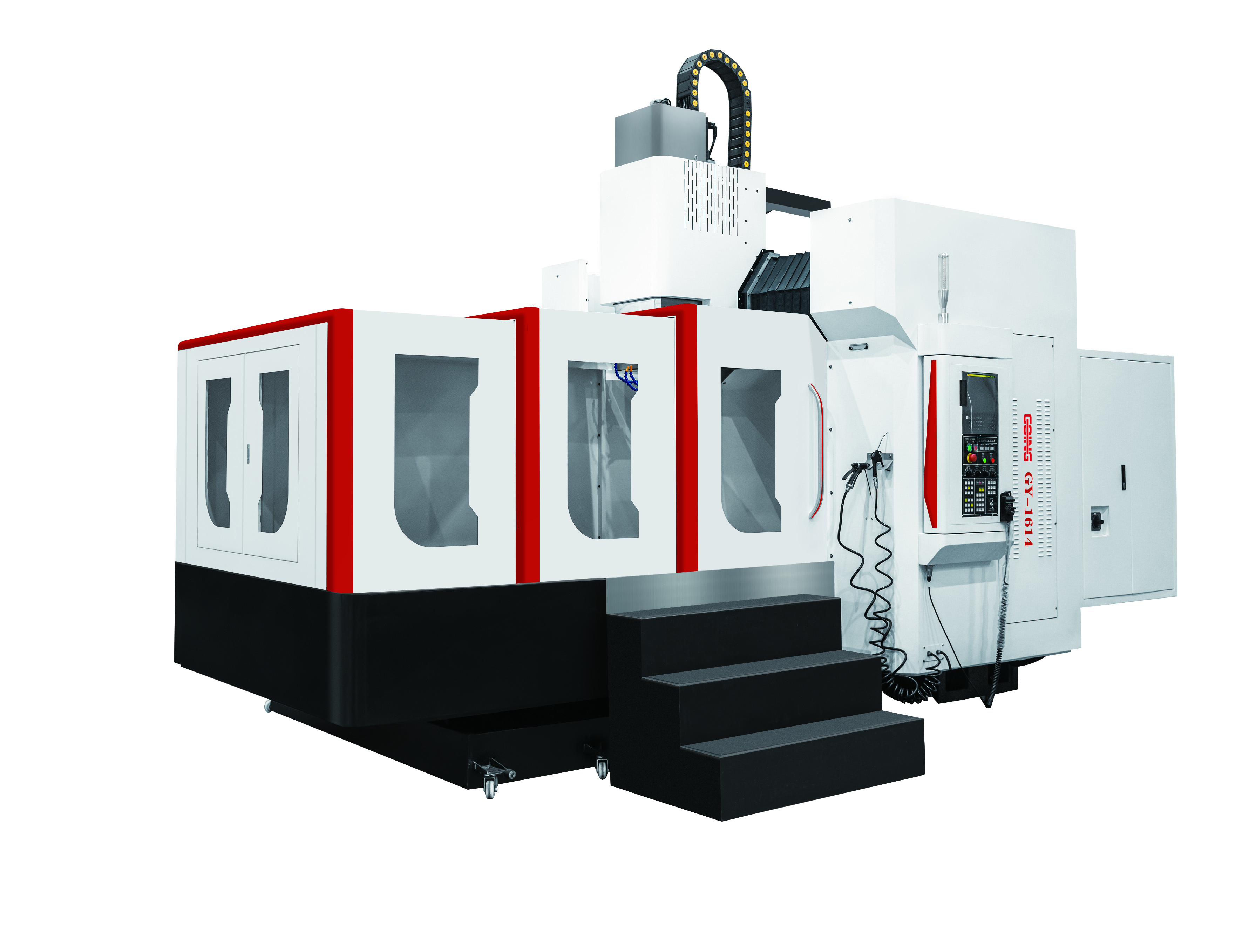

Gantry processing machine

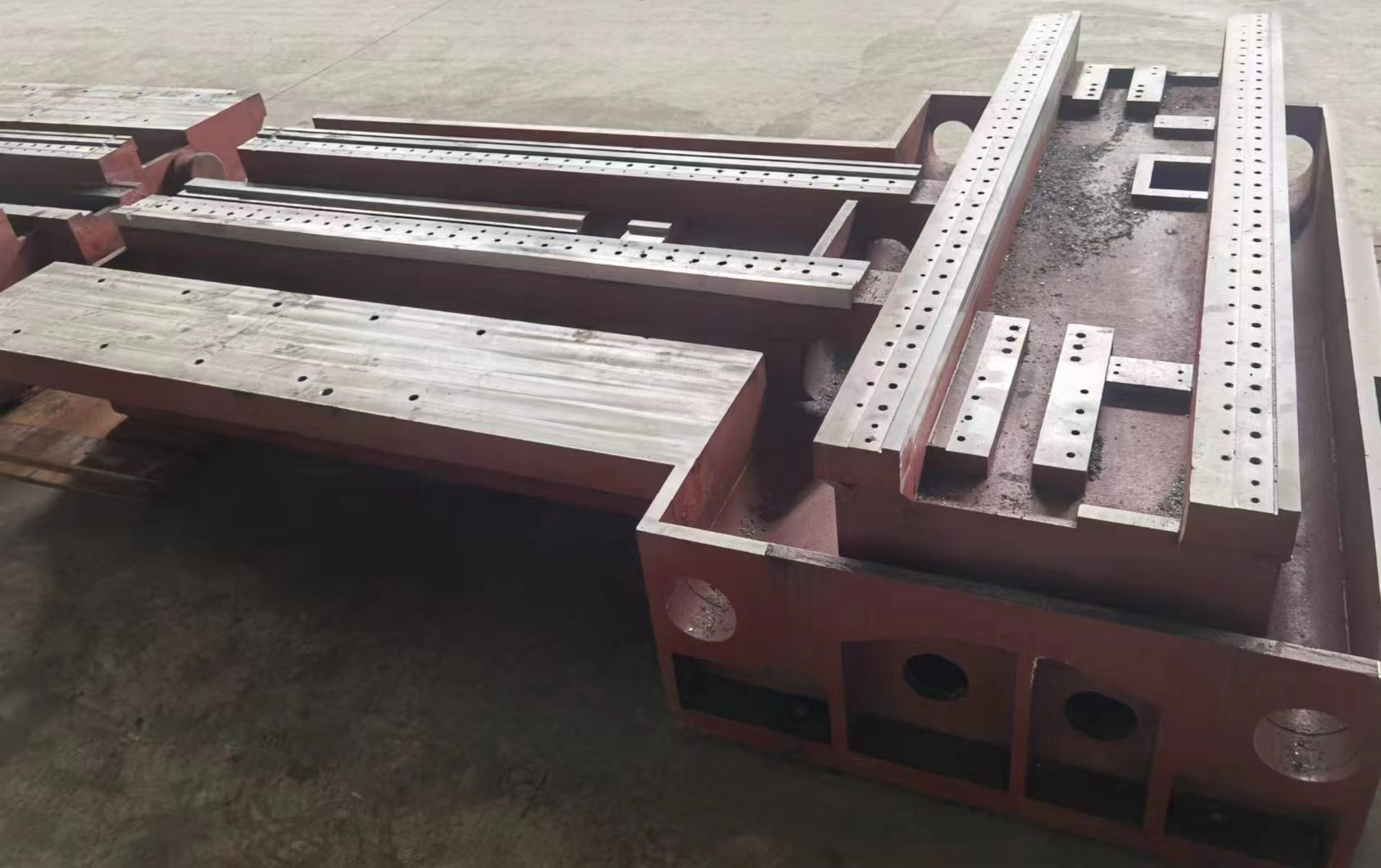

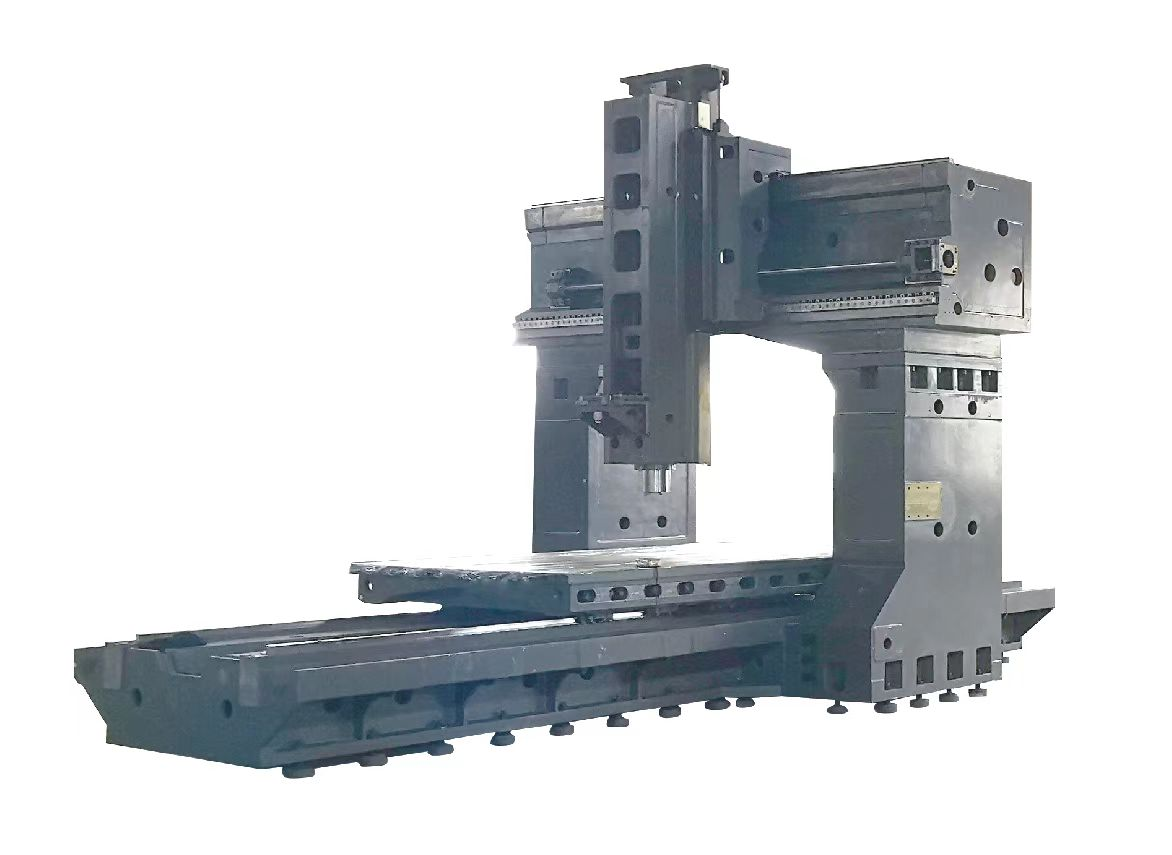

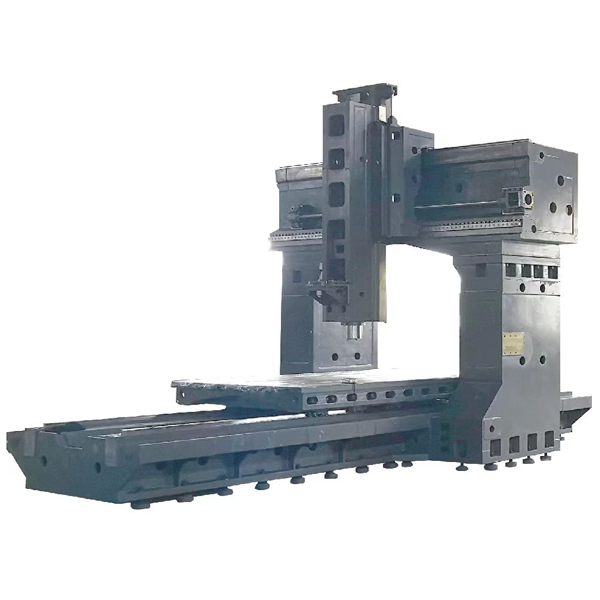

The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability

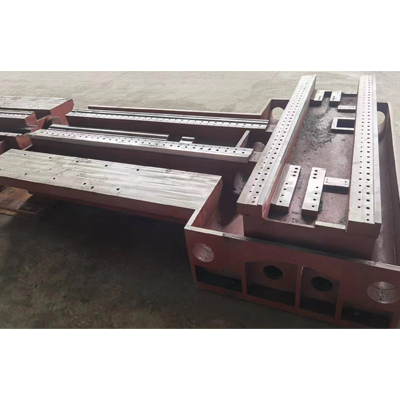

Integrated screw base and motor base to ensure high rigidity and stabilit
Suitable for aerospace, high precision mold, parts, 3C, 5G parts processing tool.
High-end impeller machining/surface, curve, universal machining

PRODUCE VIDEO

ACCESSORY

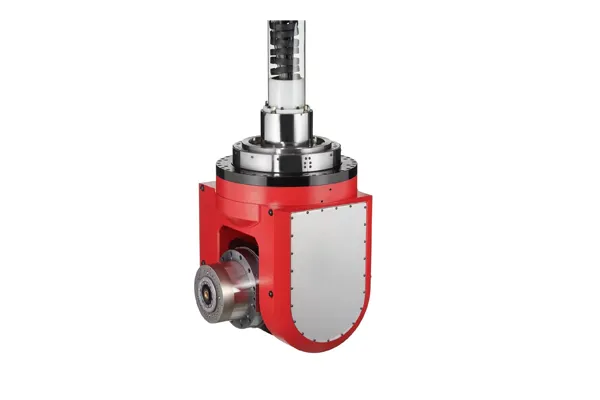

Spindle

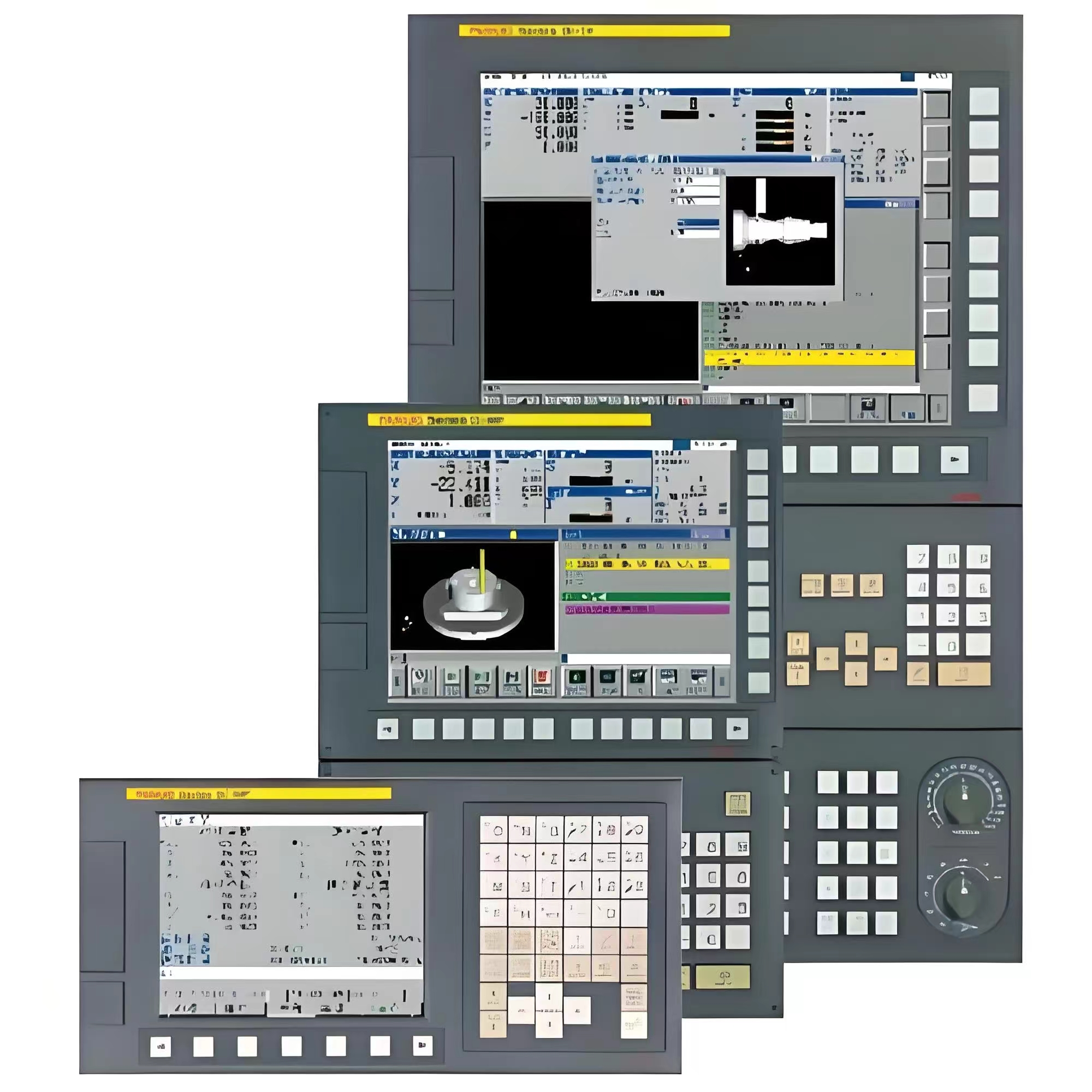

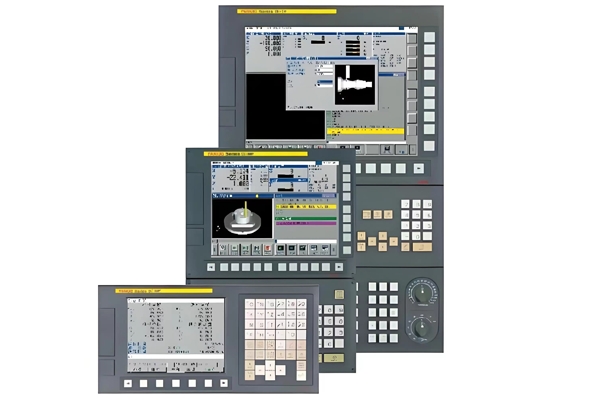

System

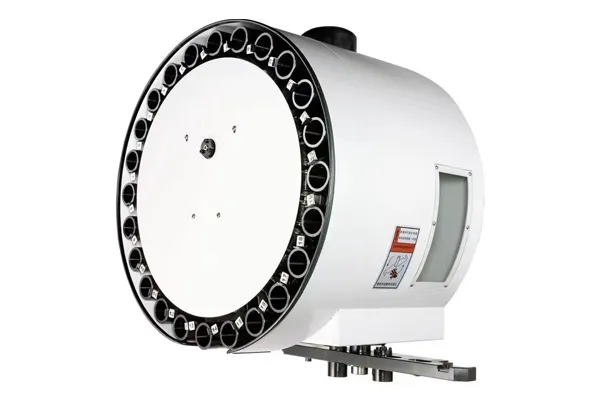

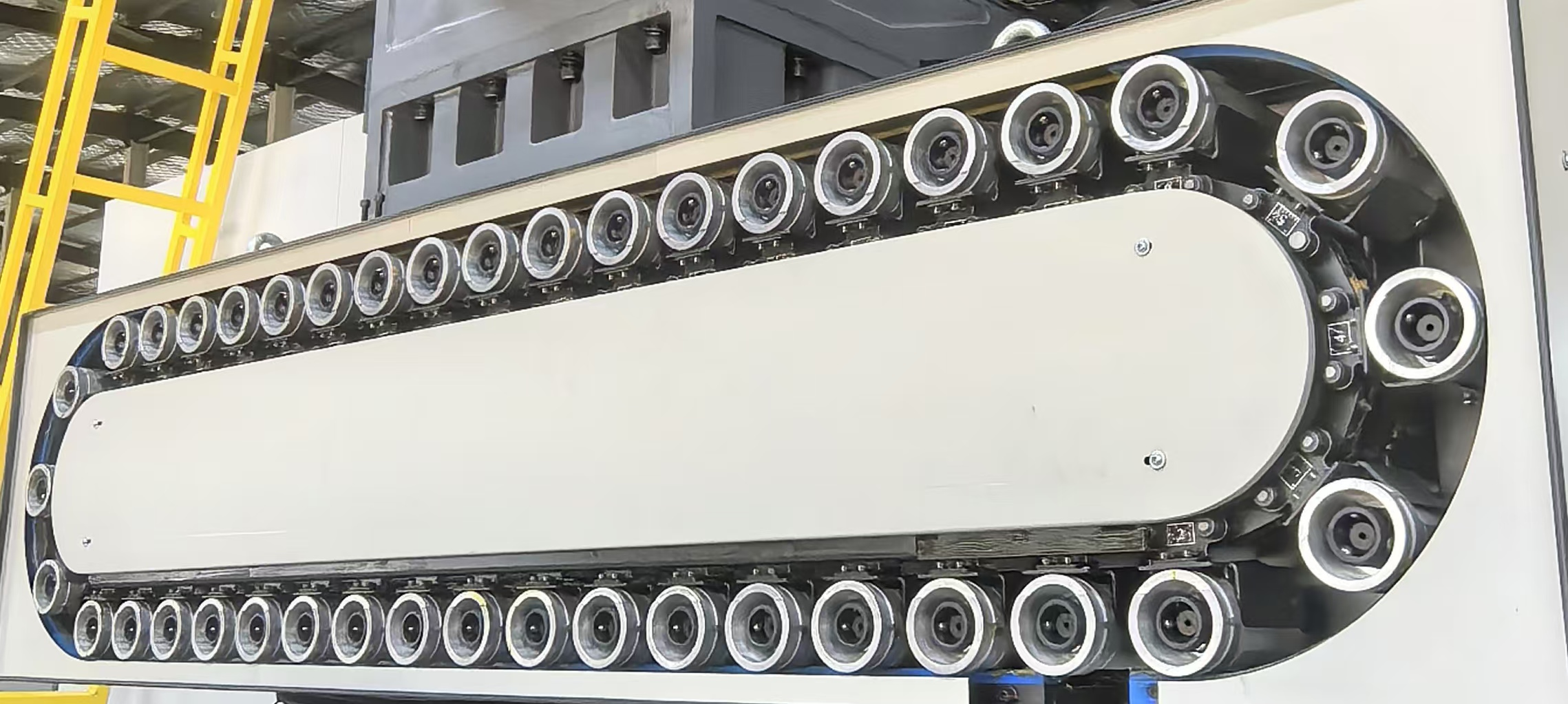

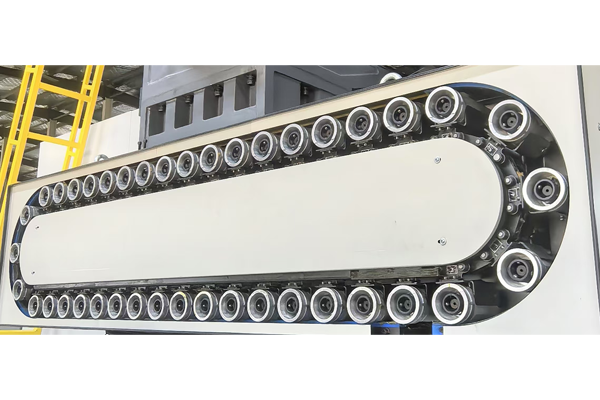

Chain type magazine tool

Magazine tool

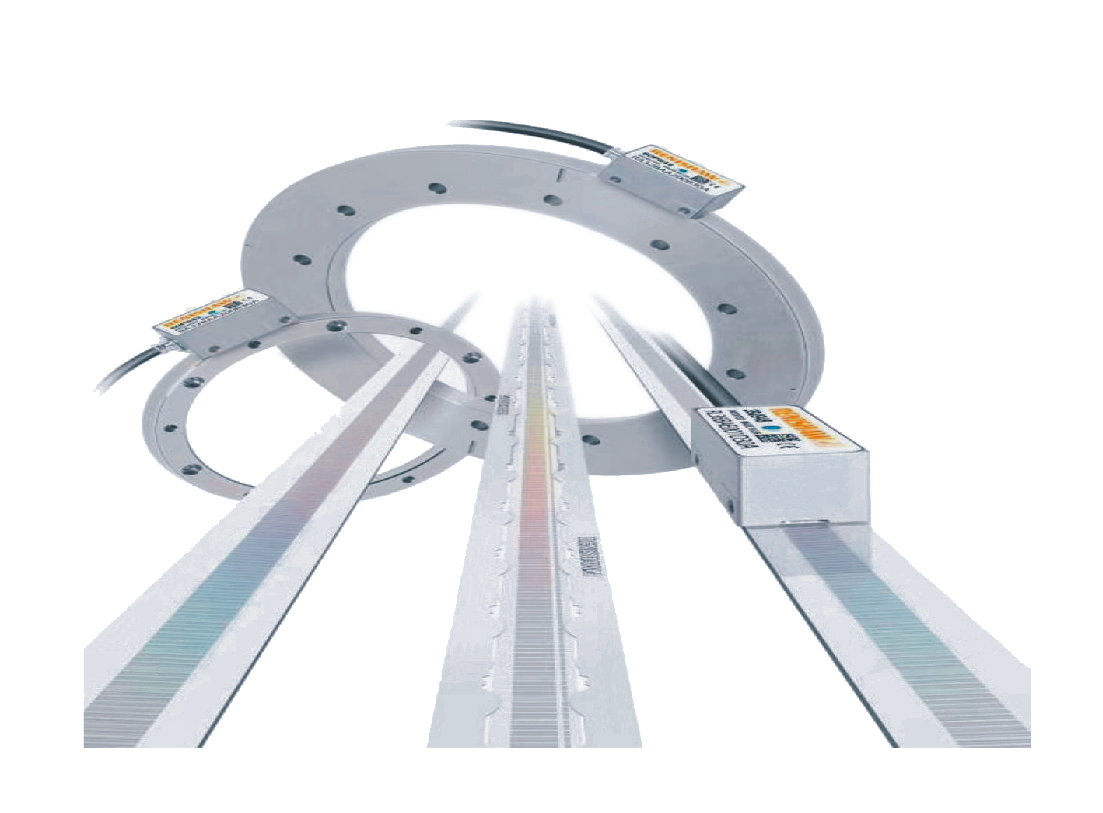

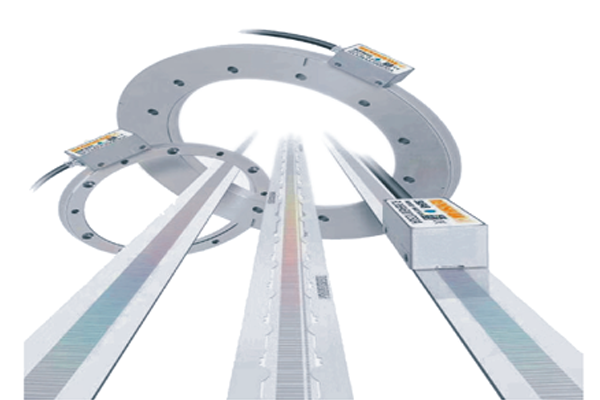

Grating ruler

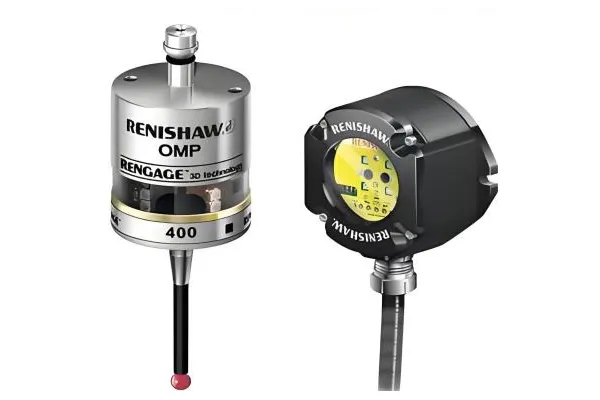

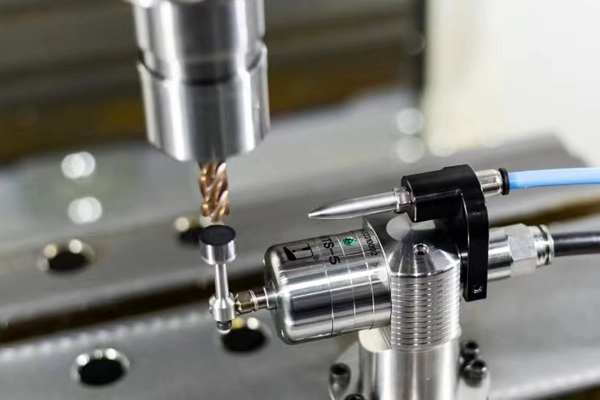

Tool setter

On-line detection

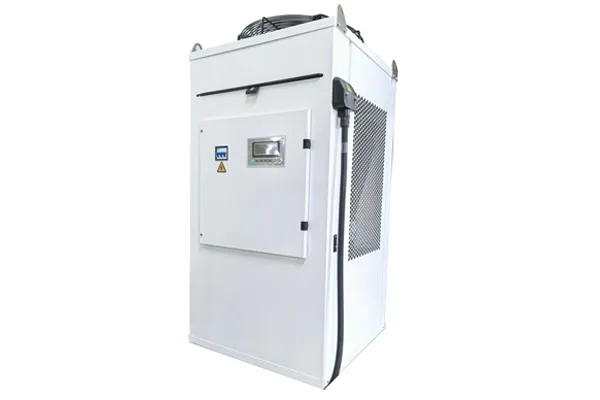

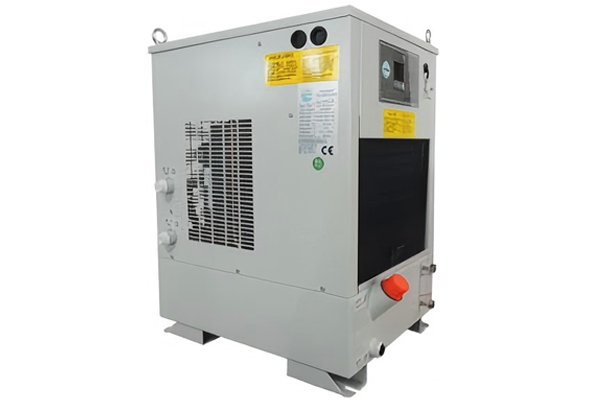

Oil cooler

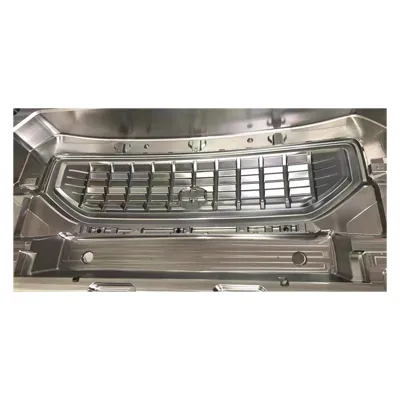

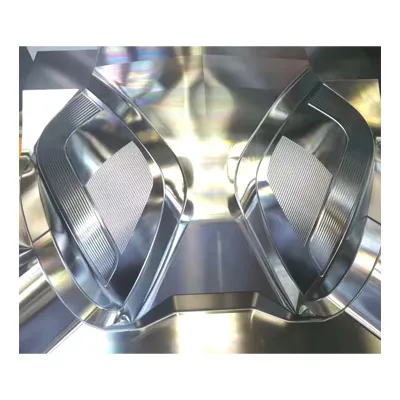

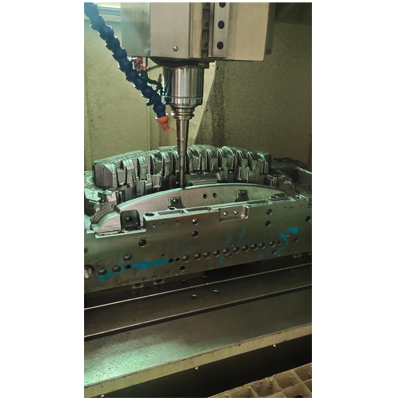

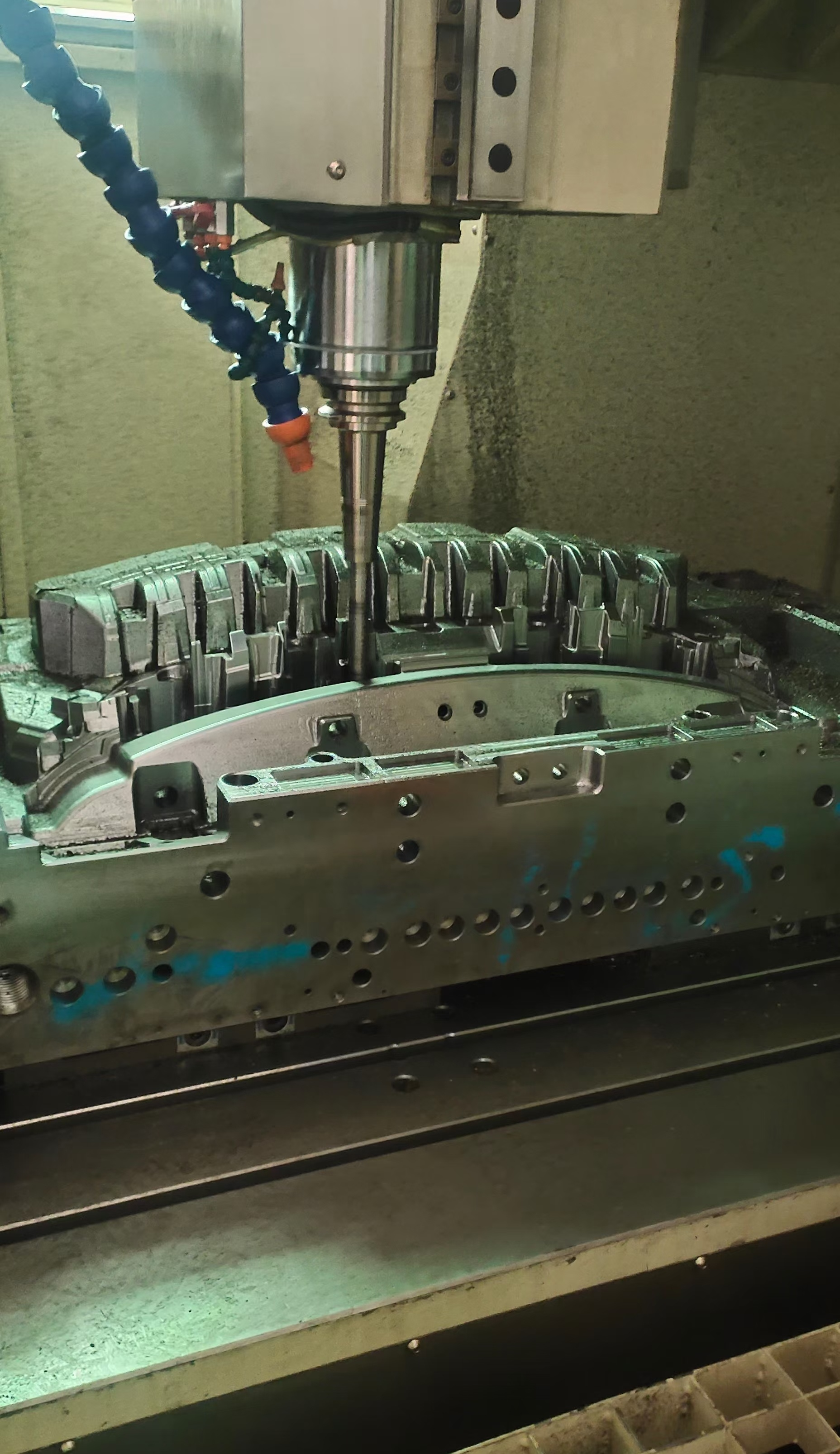

WORKPIECE

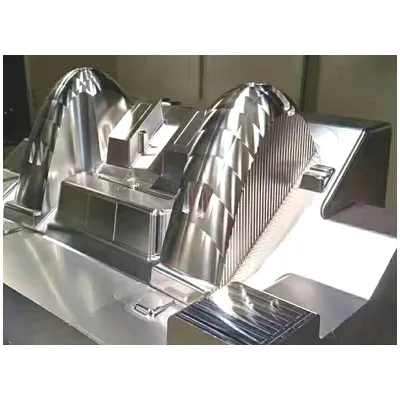

Mould

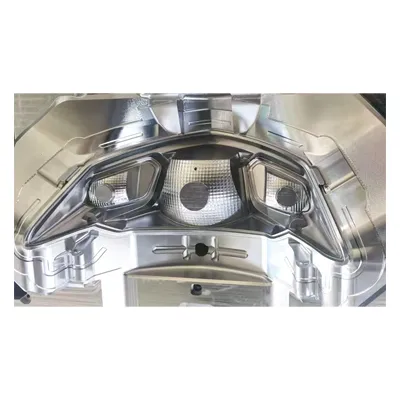

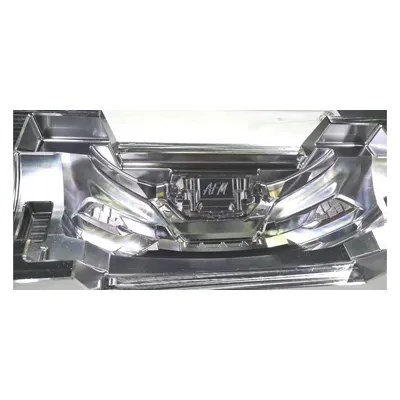

Automobile lamp mould

Automobile lamp mould

Automobile mould

Mould

Mould

Car reflective strip mould
TECHNICAL PARAMETER
Specifications/Models Unit GY-1614 GY-2015 GY-2518 GY-3022 GY-4025 GY-5022 GY-6035 GY-8035

Processing range
X-axis travel mm 1600 2000 2500 3000 4000 5000 6200 8200
Y-axis travel mm 1400 1500 1800 2400 2700 2400 3500 3500
Z-axis travel mm 750 800 900 1000 1000 1000 1000 1000
Distance from spindle nose to work surface mm 200-950 170-970 180-980 200-1200 260-1260 260-1260 310-1310 310-1310
Gantry width mm 1500 1520 1850 2250 2250 2250 3500 3500

Table specification
Table size (X-axis direction) mm 1800 2100 2700 1900 2300 1900 6000 8000
Table size (Y-axis direction) mm 1400 1200 1500 3100 4100 5100 2500 2500
Table T-slot dimensions mm 7*22*160 7*22*150 7*22*200 9*22*200 9*22*200 9*22*200 12*28*200 12*28*200
Maximum bearing capacity of table T 6 8 10 12 13 15 20 22

Main specifications
Speed of mainshaft rpm 6000/8000/10000/12000 6000/8000
Spindle motor power kw 18/22 22/25
Spindle nose code / BT40/HSK A63/ BT50/ HSK A100
Kind of drive / Belt Type/ Direct-connected/Gear type

Feed
X, Y, Z axis fast feed m/min 24/24/24 12/12/10 12/12/10 12/12/10 12/12/10 12/12/10 8/10/10 8/10/10
Cutting feed m/min 6 6 7 7 7 7 7 7
X, Y, Z axis motor specifications Nm 30/30/30 40/30/30 40/30/30 50/30/30 63/36/36 70/30/40 70/30/40 75/40/40
 Precision Positional accuracy mm ±0.005/300 ±0.005/300 ±0.008/300 ±0.008/300 ±0.01/300 ±0.01/300 ±0.01/300 ±0.01/300
Repeated positioning accuracy mm ±0.003/300 ±0.003/300 ±0.005/300 ±0.005/300 ±0.008/300 ±0.008/300 ±0.008/300 ±0.008/300

Machine Specification
Machine size mm 5000*3200*4200 5600*3500*4500 7140*4200*4580 7705*4650*5167 10670*4800*4700 14000*4700*5000 15500*6300*5200 19500*6300*5200
Machine weight  T 16 22 26 36 46 55 72 82
 Because technology is constantly updated, the above parameters is only for your reference
