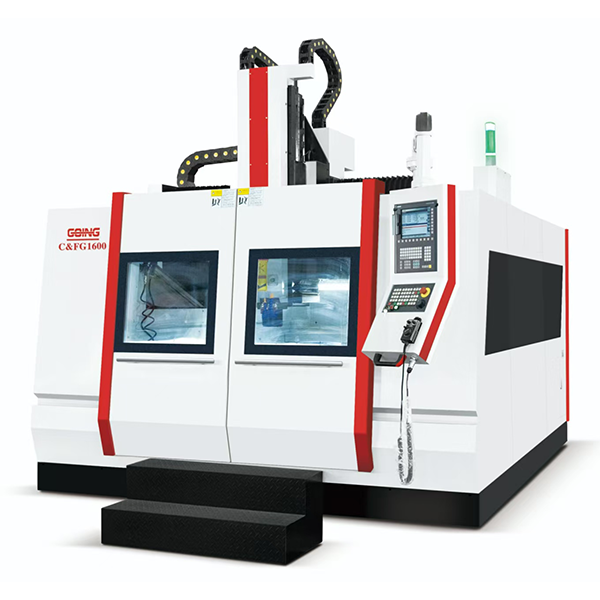

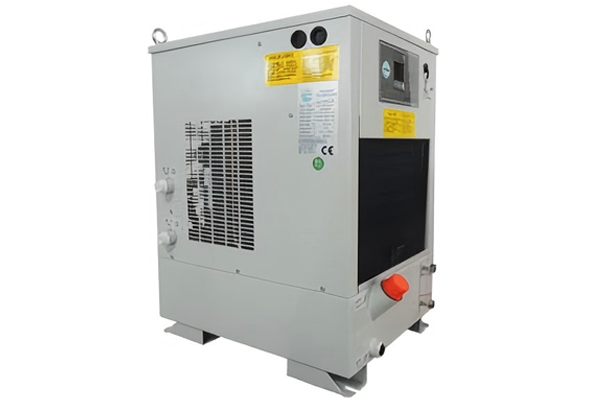

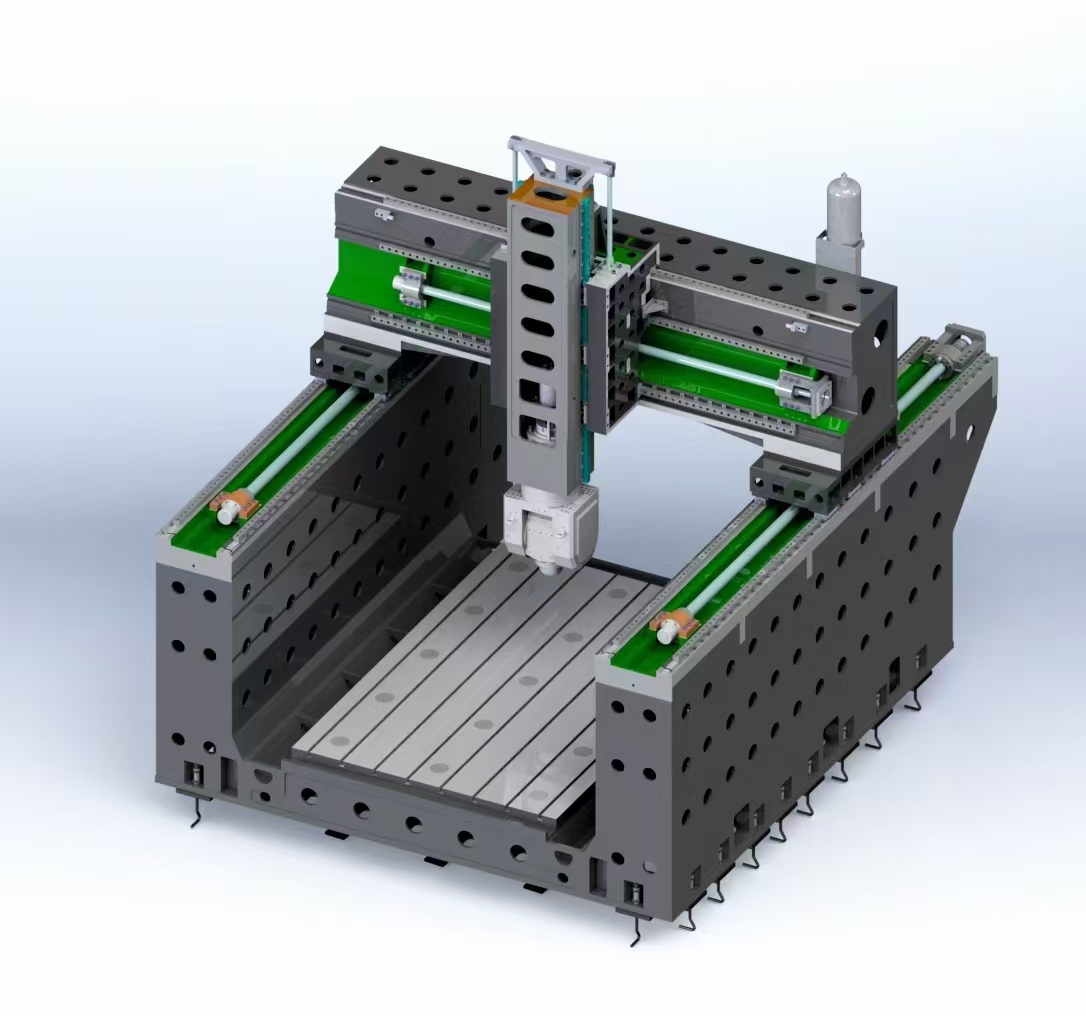

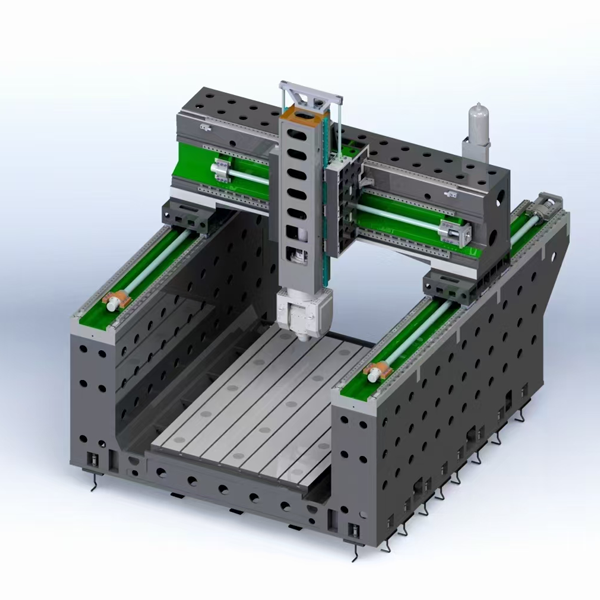

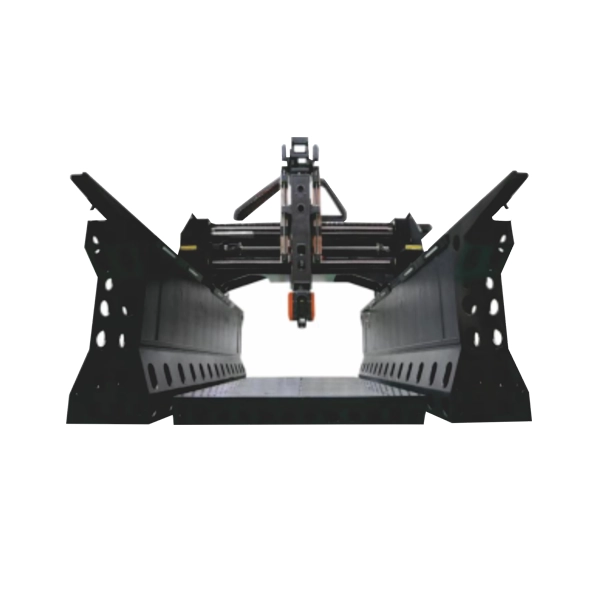

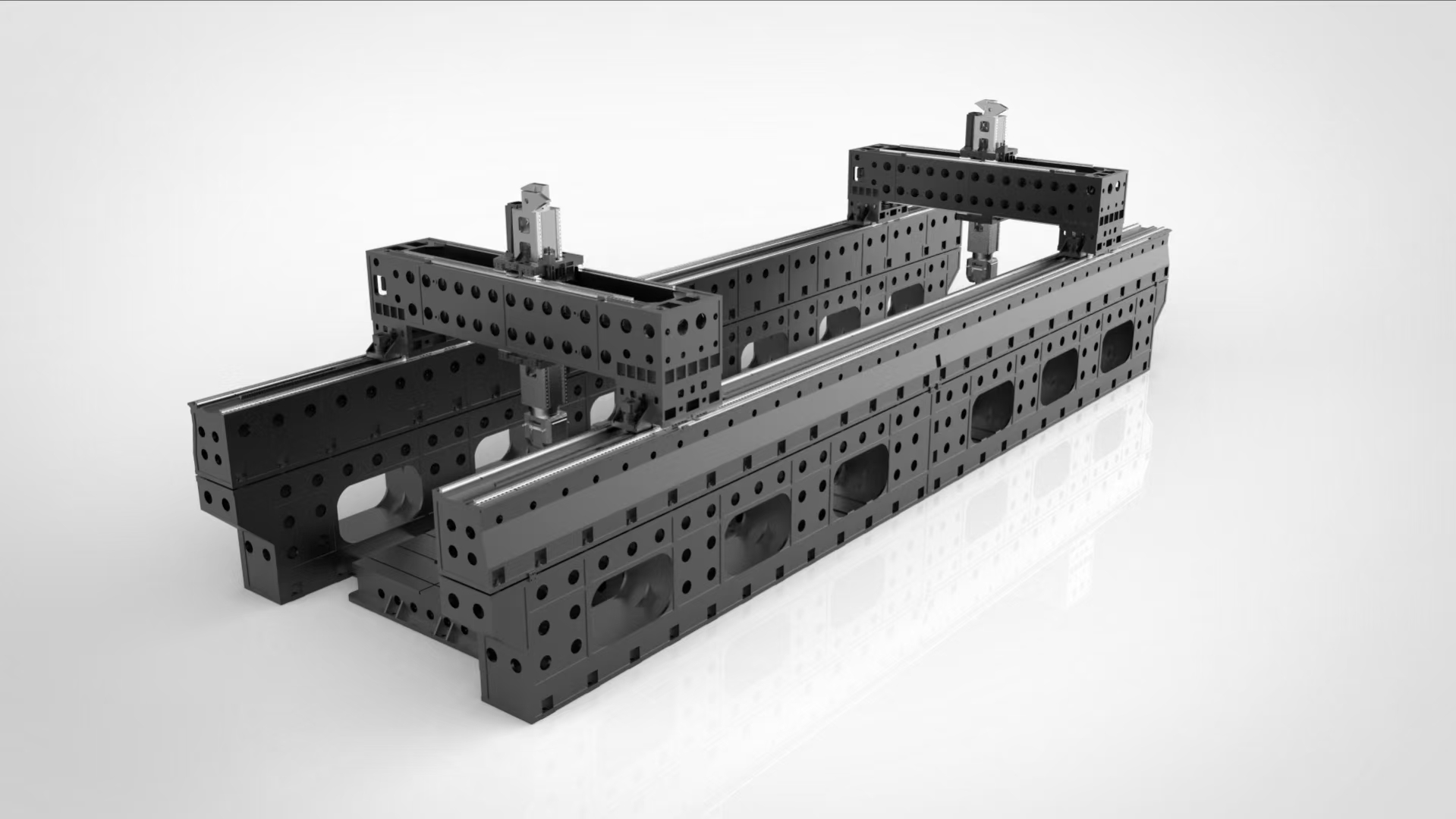

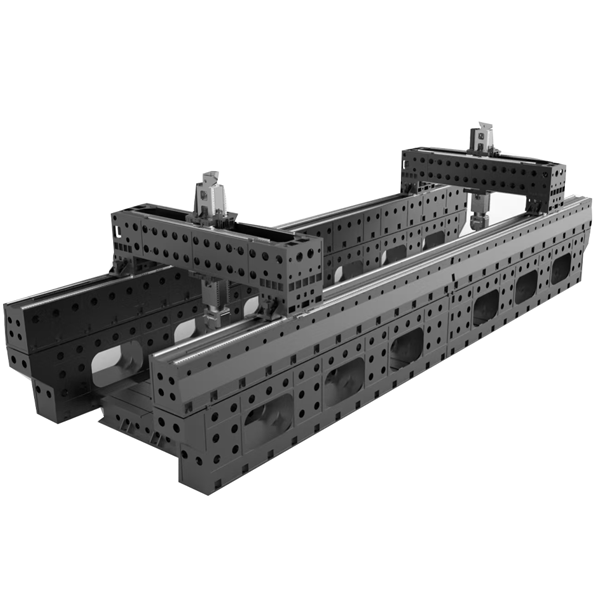

The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability

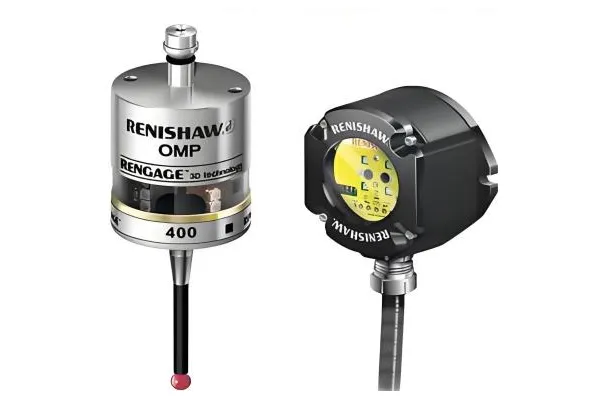

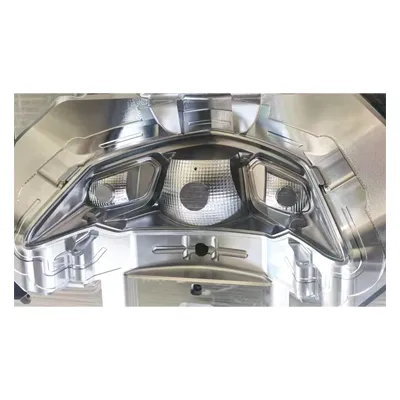

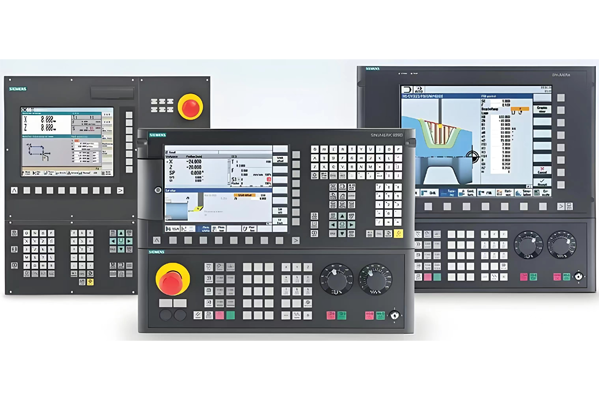

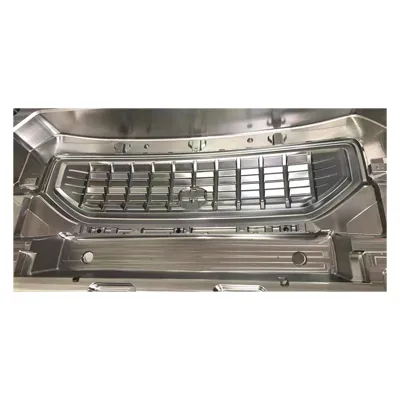

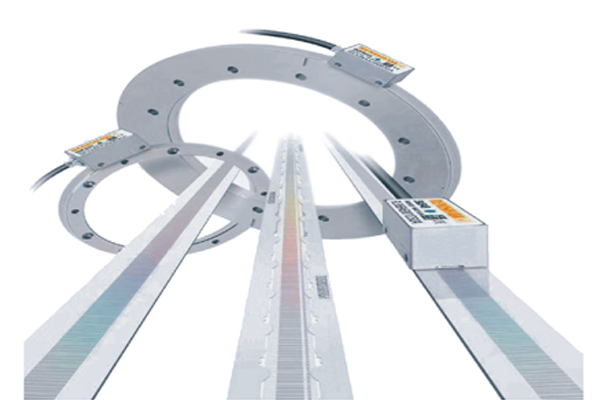

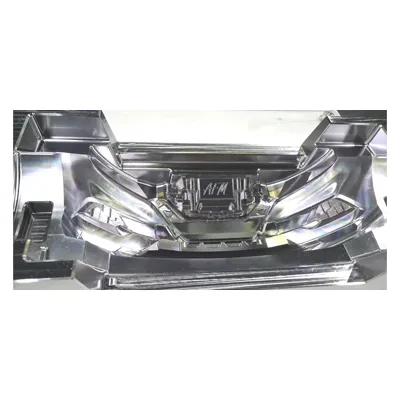

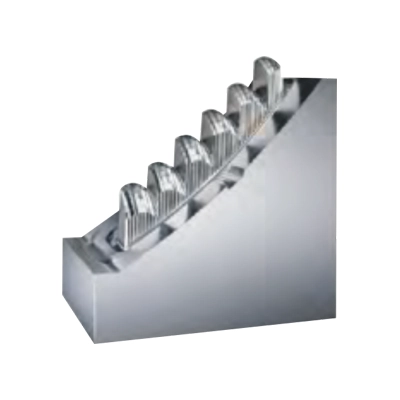

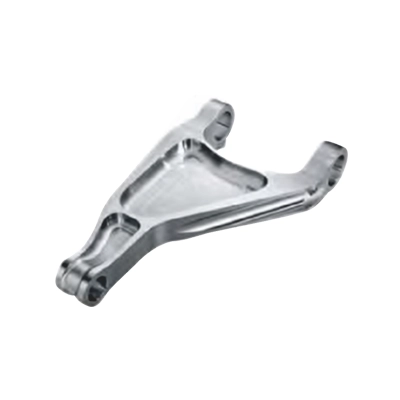

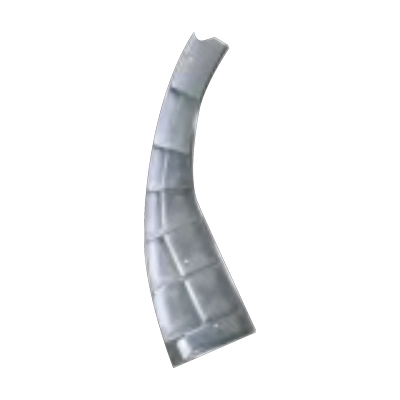

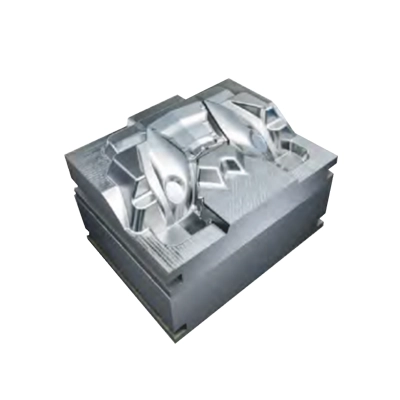

Suitable for aerospace, high-precision mold, parts, 3C, 5G automobile, new energy, mold industry

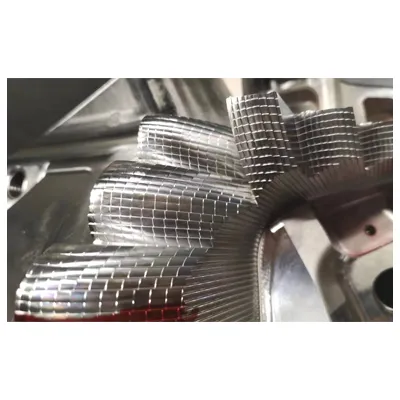

Titanium alloy, die steel, carbon fiber, and other materials

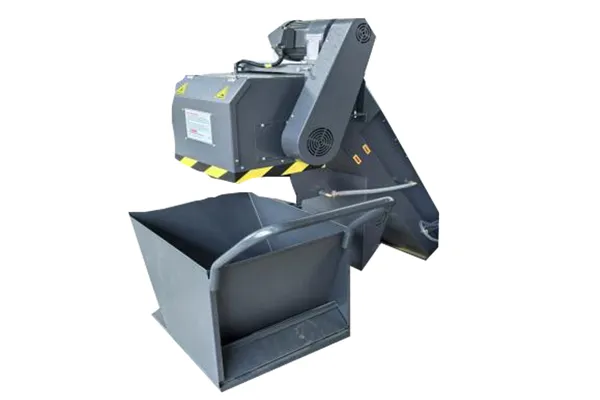

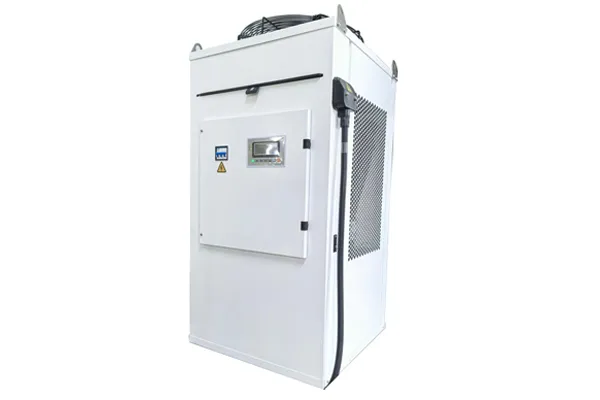

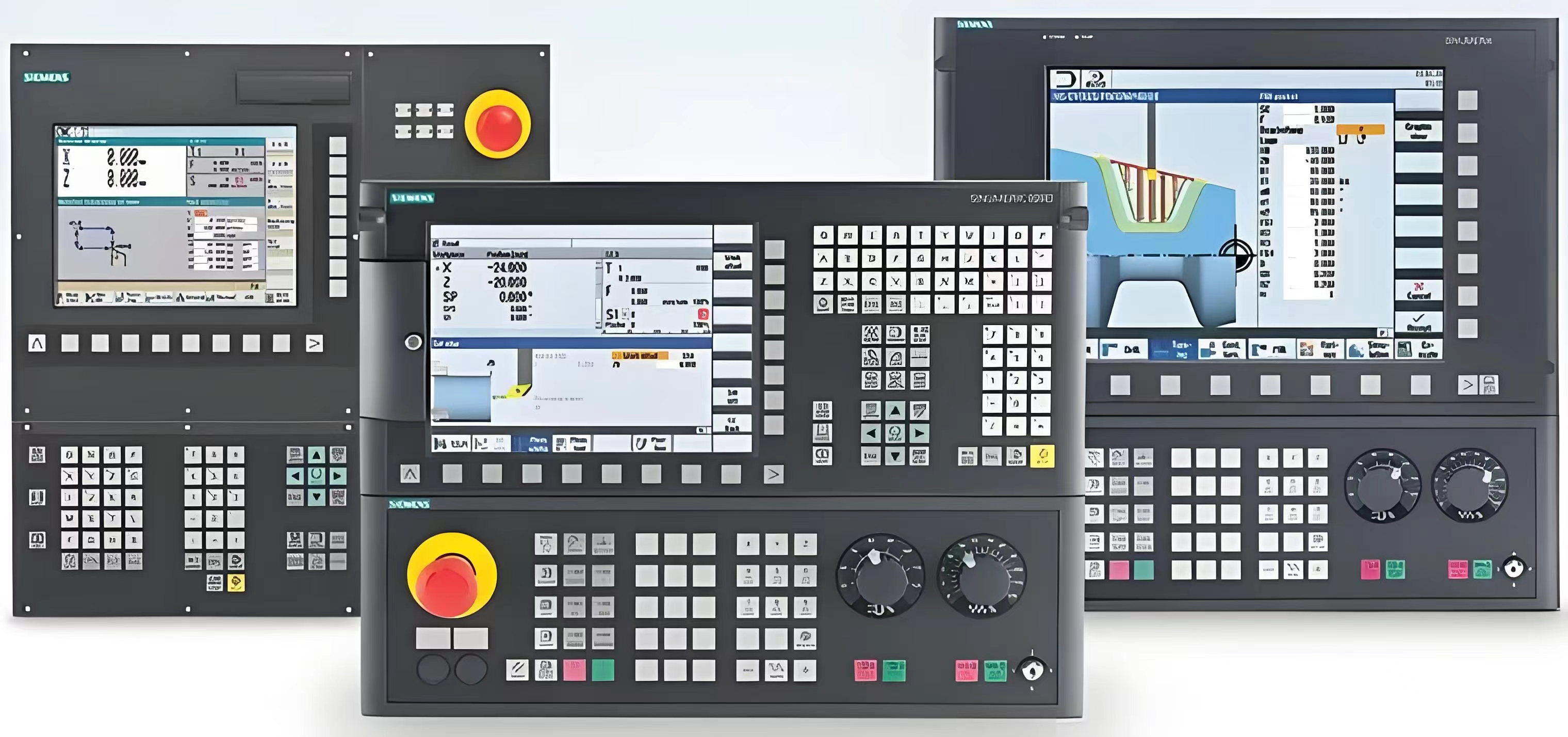

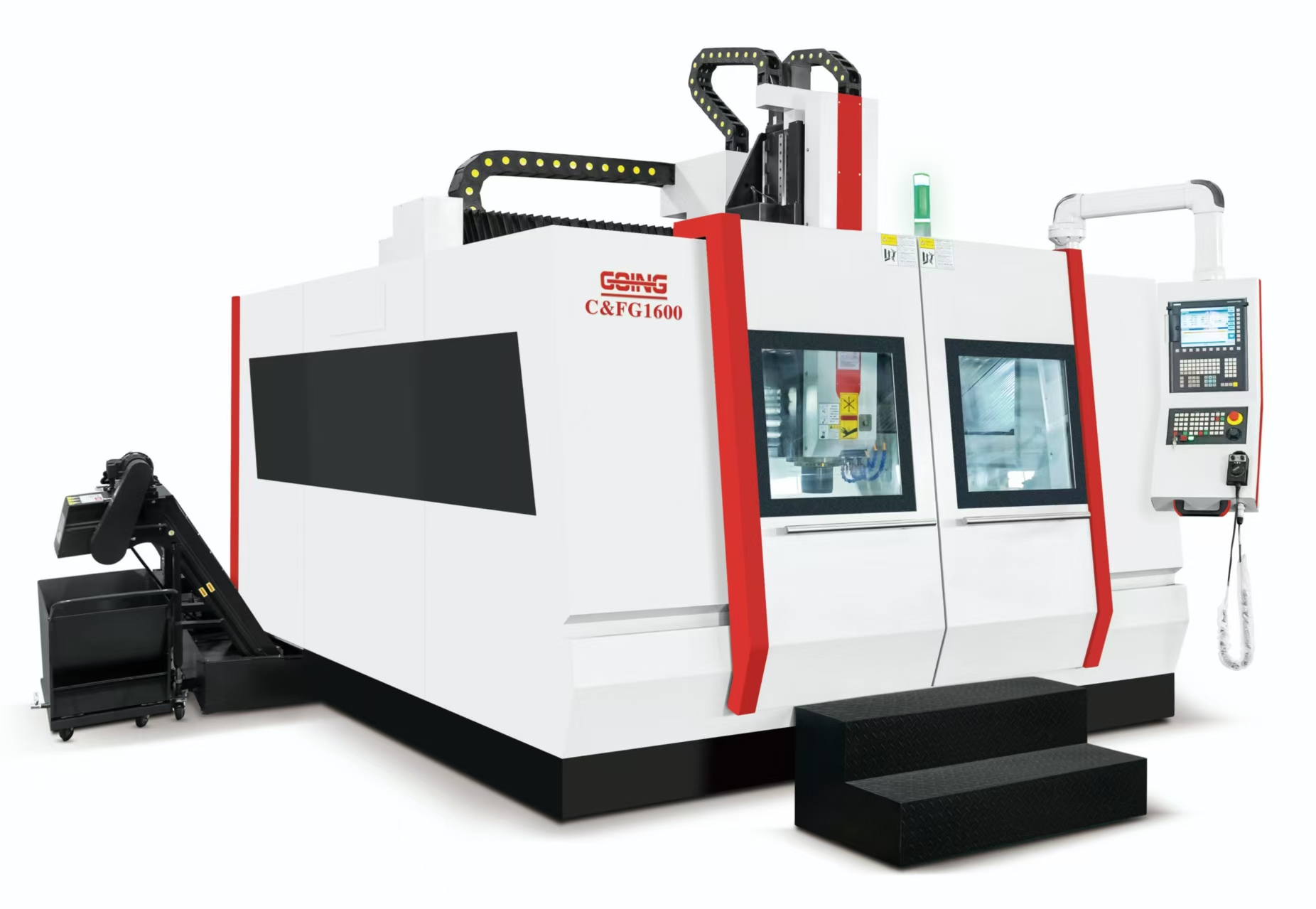

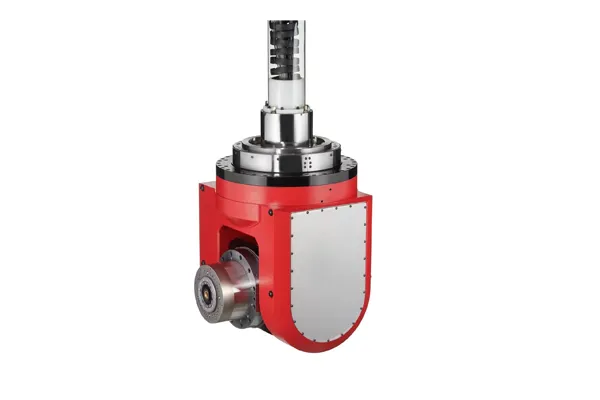

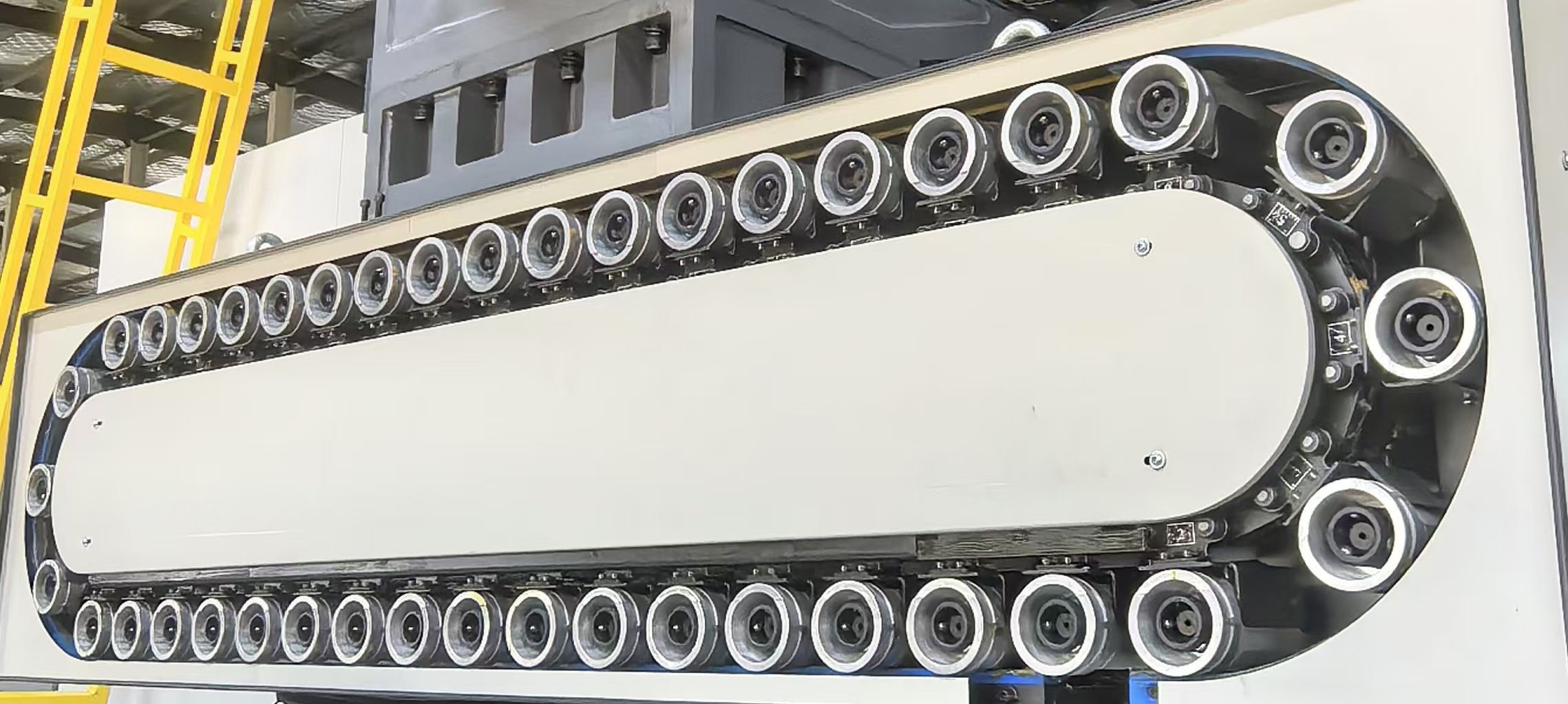

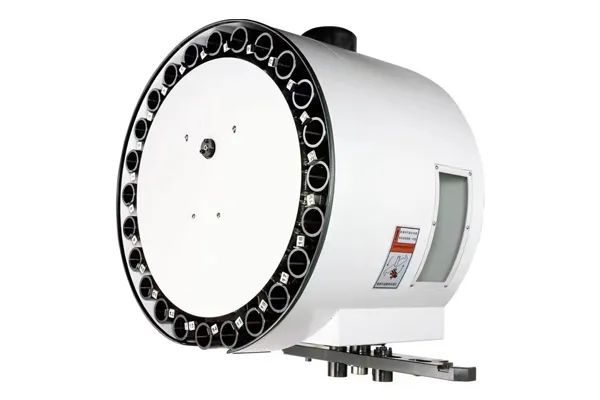

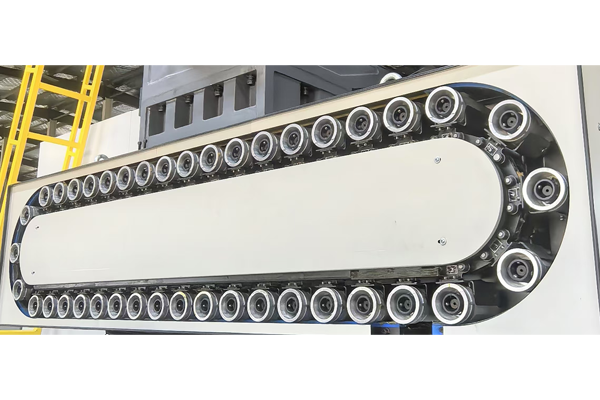

| Mechanical Specification | Unit | G1625 | G2225 | G3025 | G4025 | G5025 | G6025 | |
| Processing range | X-axis stroke | mm | 1600 | 2200 | 3000 | 4000 | 5000 | 6000 |
| Y-axis stroke | mm | 2500 | ||||||
| Z-axis stroke | mm | 1000/ 12000 | ||||||
| Distance from spindle nose to table/TAC8F-03-14 | mm | Z1,000:110~1,110/Z1,200:110~1,310 | ||||||
| Distance from spindle nose to table/CM21X-05-10T | mm | Z1,000:200~1,200/Z1,200:200~1,400 | ||||||
| Distance from spindle nose to table/H810F-04-12 | mm | Z1,000:160~1,160/Z1,200:160~1,360 | ||||||
| Distance from spindle nose to table/H810F-02-15 | mm | Z1,000:240~1,240/Z1,200:240~1,440 | ||||||
| Distance from spindle nose to table/H810S-02-15 | mm | Z1,000;275~1,275/Z1,200:275~1,475 | ||||||
| Distance from spindle nose to table/H8105-01-24 | mm | Z1,000:240~1,240/Z1,200:240~1,440 | ||||||
| Distance from spindle nose to table/H810F-01-24 | mm | Z1,000:240~1,240/Z1,200:240~1.440 | ||||||
| Distance from spindle nose to table/H610F-01-24 | mm | Z1,000:225~1,225/Z1,200:225~1,425 | ||||||
| Distance from spindle nose to table/H6105-01-24 | mm | Z1,000:225~1,225/Z1,200:225~1,425 | ||||||
| Distance between columns (door width) | mm | 3,400 | ||||||
| Table specification | Area of work | mm | 1,600*2,500 | 2,200*2,500 | 3,600*2,500 | 4,000*2,500 | 5,000*2,500 | 6,000*2,500 |
| T-slot (Width x quantity x spacing) | mm | 28*11*250 | 28*15*250 | 28*19*250 | 28*23*250 | |||
| Maximum load of workbench | kg/cm² | 3,000 | ||||||
| Main specifications | Spindle | / | H810S-02-15 | |||||
| Spindle power (S1/S6) | KW | 50/65 | ||||||
| Speed of mainshaft | rpm | 12000/15000/20000/24000 | ||||||
| Taper hole of spindle | / | HSK A63/HSK-A100 | ||||||
| Spindle output torque (S1/S6) | Nm | 95.5/ 124 | ||||||
| Feed | Cutting feed rate | m/min | 1-20 | |||||
| Fast feed rate | m/min | XY:32/ Z:20 | ||||||
| Precision | Positional accuracy (JIS-B6333) | mm | ±0.005/ Full stroke | ±0.007/ Full stroke | ±0.008/ Full stroke | |||
| Positional accuracy (VD13441) | mm | P0.008 | P0.010 | P0.012 | P0.015 | |||
| Repeated positioning accuracy(JIS-B6333) | mm | ±0.002 | ||||||
| Repeated positioning accuracy(VD13441) | mm | PS0.006 | PS0.008 | PS0.012 | ||||
| Tool magazine | T | 20/32/40/60 | ||||||
| mm | HSK-A63:Ф75 /HSK-A100:Ф125 | |||||||
| mm | HSK-A63:Ф130/HSK-A100:Ф250 | |||||||
| Maximum knife length | mm | 300 | ||||||
| Max tool weight | kg | HSK-A63: 8,HSK-A100:15 | ||||||
| Machine specification | Weight of machinery | kg | 43,500 | 48,500 | 48,000 | 57,500 | 66,500 | 76,500 |
| Machine size (L x W x H) | m | 6.9*8.6*5.5 | 7.5*8.6*5.5 | 9.1*8.6*5.5 | 10.1*8.6*5.5 | 11.1*8.6*5.5 | 12.1*8.6*5.5 | |
| Mechanical Specification | Unit | G2232 | G3032 | G4032 | G5032 | G6032 | ||
| Processing range | X-axis stroke | mm | 2,200 | 3,000 | 4,000 | 5,000 | 6,000 | |
| Y-axis stroke | mm | 3,200 | ||||||
| Z-axis stroke | mm | 1，000/1，2000 | ||||||
| Table specification | Distance from spindle nose to table | mm | Z1,000:110~1,110/Z1,200:110~1,310 | |||||
| mm | Z1,000:200~1,200/Z1,200:200~1,400 | |||||||
| mm | Z1,000:160~1,160/Z1,200:160~1,360 | |||||||
| mm | Z1,000:240~1,240/Z1,200:240~1,440 | |||||||
| mm | Z1,000;275~1,275/Z1,200:275~1,475 | |||||||
| mm | Z1,000:240~1,240/Z1,200:240~1,440 | |||||||
| mm | Z1,000:240~1,240/Z1,200:240~1.440 | |||||||
| mm | Z1,000:225~1,225/Z1,200:225~1,425 | |||||||
| mm | Z1,000:225~1,225/Z1,200:225~1,425 | |||||||
| Distance between columns (door width) | mm | 3,900 | ||||||
| Work table size | Area of work | mm | 2,200 *3,200 | 3.000*3,200 | 4,000*3,200 | 5,000*3,200 | 6.000*3.200 | |
| T-slot (Width x quantity x spacing) | mm | 28*13*250 | 28*11*250 | 28*15*250 | 28*19*250 | 28*23*250 | ||
| Maximum load of workbench | kg/cm² | 3,000 | ||||||
| Principal axis | Spindle type | / | H810S-02-15 | |||||
| Spindle horsepower (S1/S6) | kw | 50/65 | ||||||
| Speed of mainshaft | rpm | 15,000 | ||||||
| Taper hole of spindle | / | HSK-A100 | ||||||
| Spindle output torque (S1/S6) | Nm | 95.5/ 124 | ||||||
| Feed | Cutting feed rate | mm/min | 1-20,000 | |||||
| Fast feed rate | m/min | XY:32/Z:20 | ||||||
| Precision | Positional accuracy (JIS-B6333) | mm | ±0.005/Full stroke | ±0.007/ Full stroke | ||||
| Positional accuracy (VD13441) | mm | P0.008 | P0.010 | P0.012 | P0.015 | |||
| Repeated positioning accuracy(JIS-B6333) | mm | ±0.002 | ||||||
| Repeated positioning accuracy(VD13441) | mm | PS0.006 | PS0.008 | PS0.012 | ||||
| Tool magazine | Tool capacity | pcs | 20/ 32/ 40/ 60 | |||||
| Machine specification | Weight of machinery | kg | 46,000 | 45,500 | 55,500 | 64,000 | 73,500 | |
| Machine size (L x W x H) | m | 7.5*9.1*5.5 | 9.1*9.1*5.5 | 10.1*9.1*5.5 | 11.1*9.1*5.5 | 12.1*9.1*5.5 | ||
| Because technology is constantly updated, the above parameters is only for your reference | ||||||||
