The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability

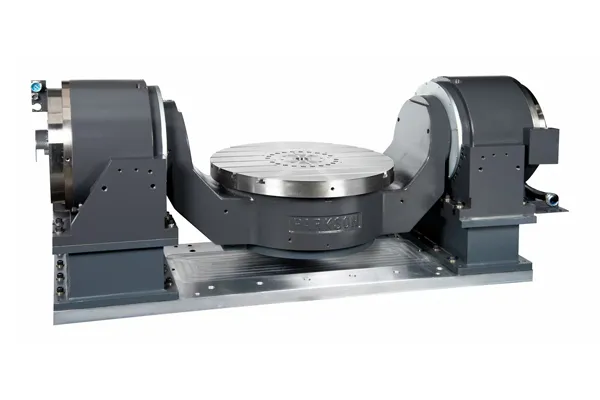

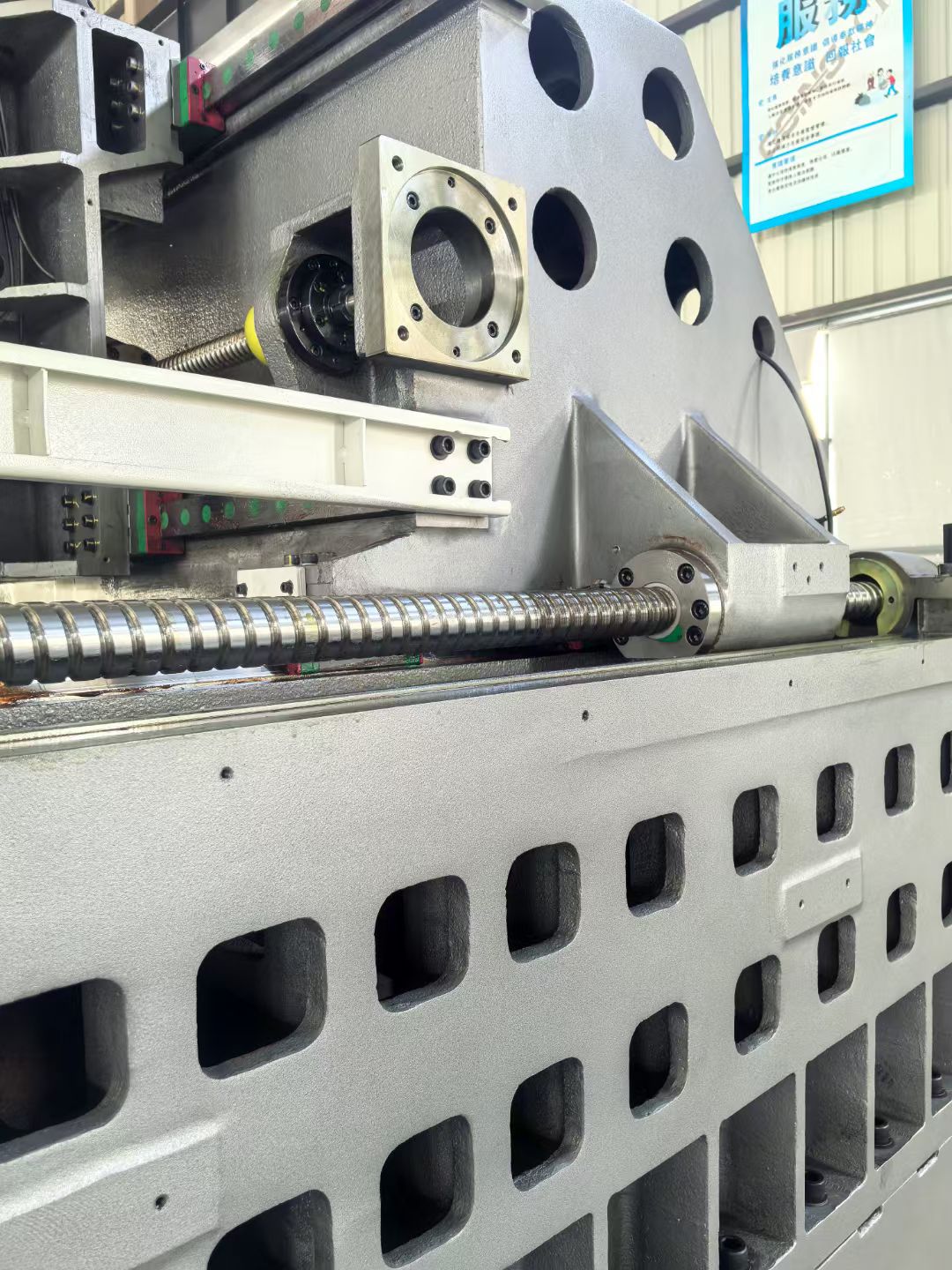

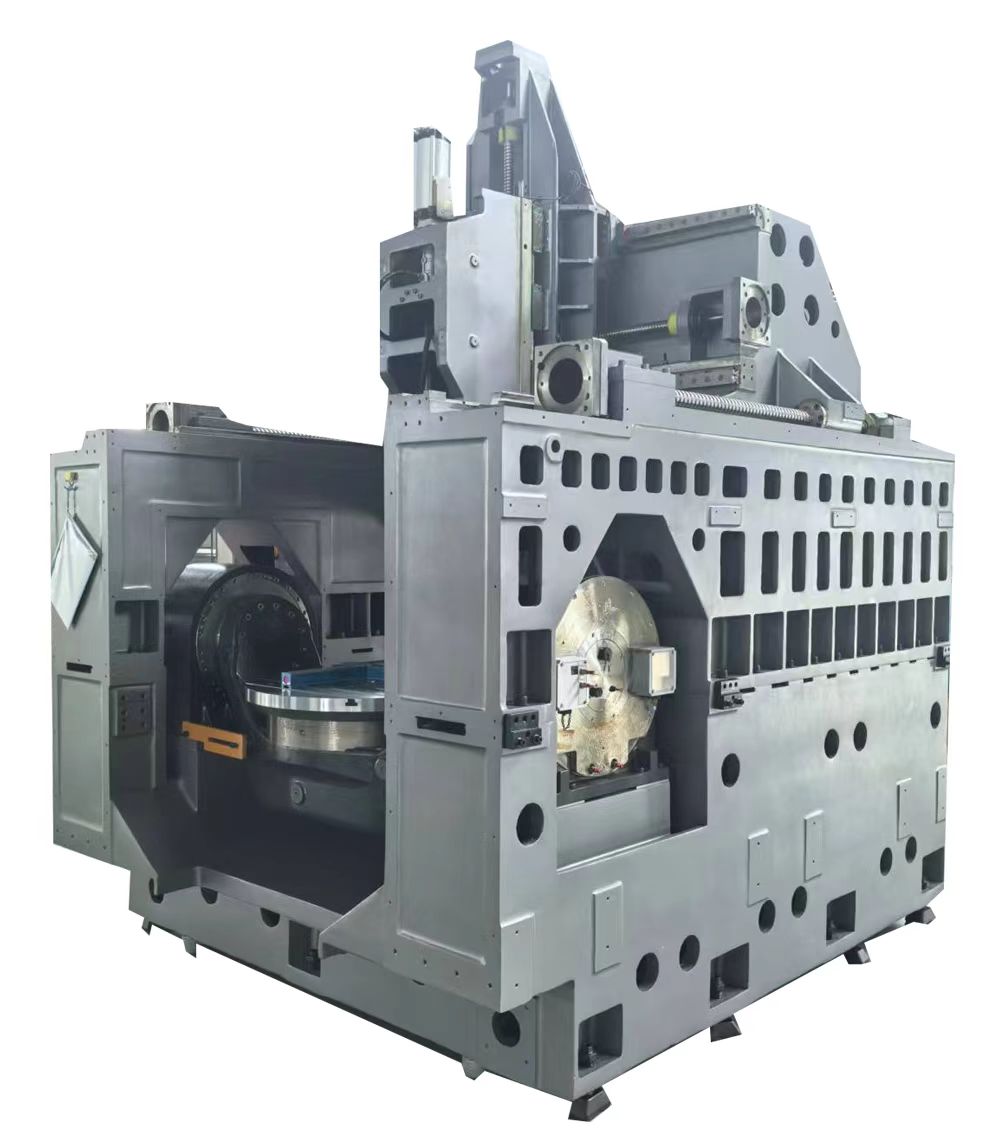

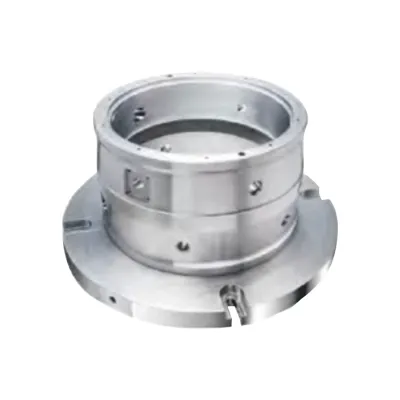

Integrated screw base and motor base to ensure high rigidity and stability.

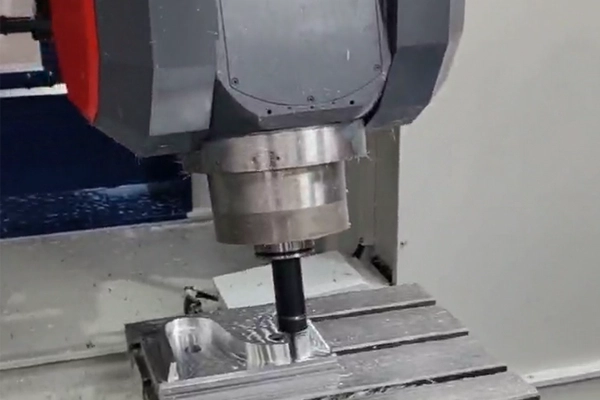

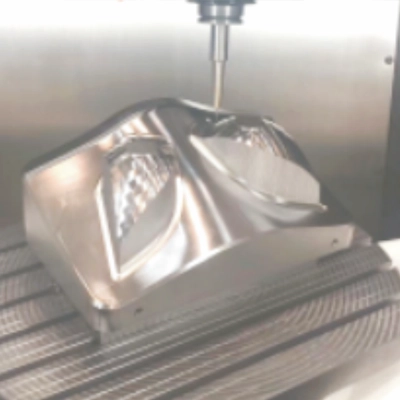

Suitable for aerospace, high precision mold, parts, 3C, 5G parts processing tool.

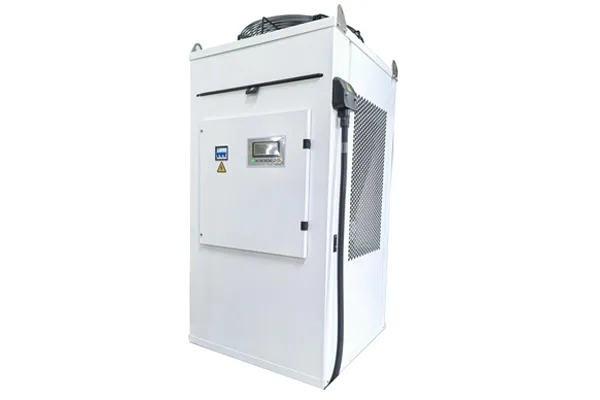

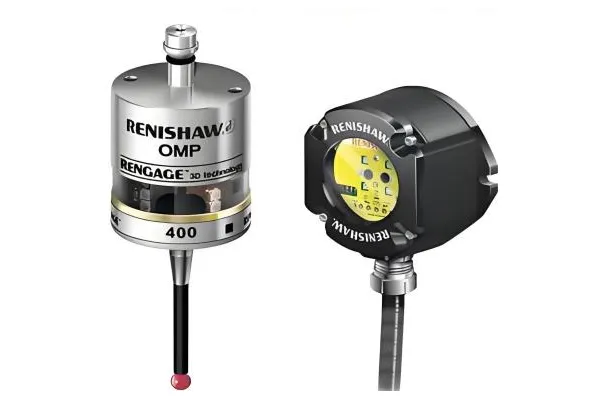

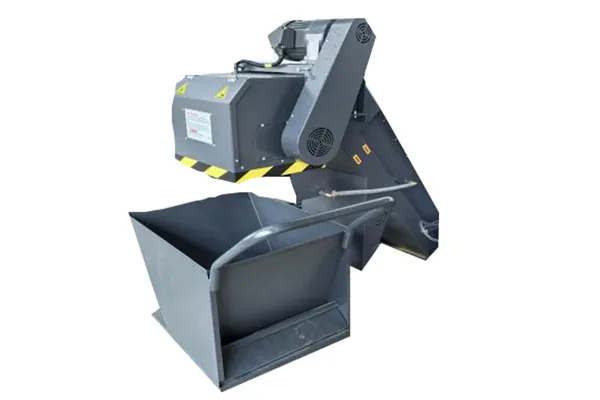

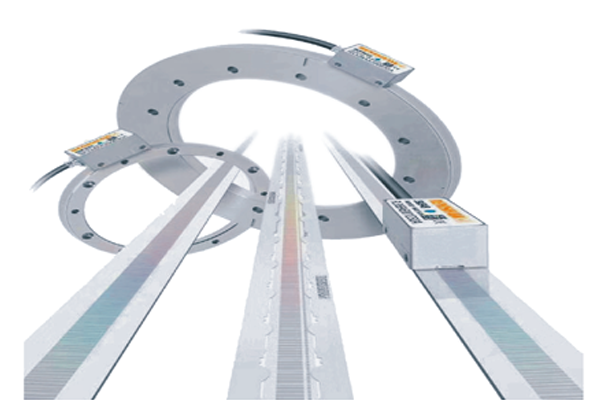

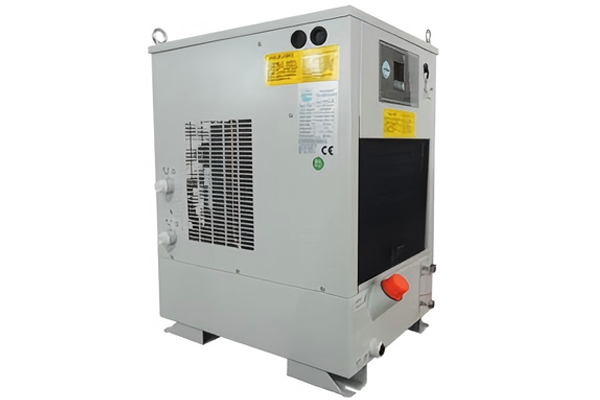

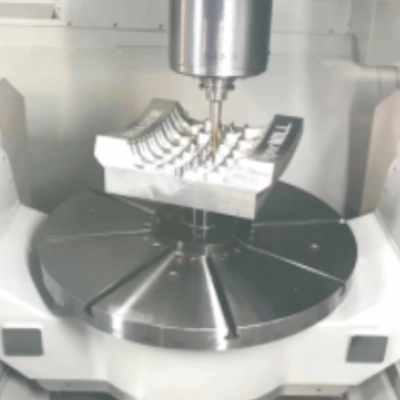

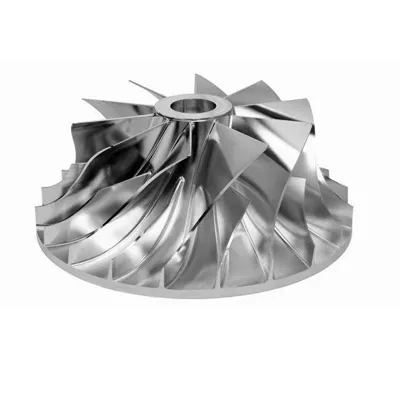

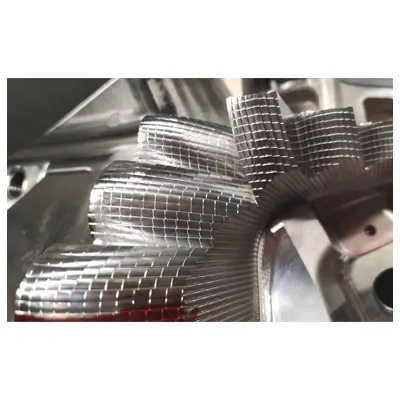

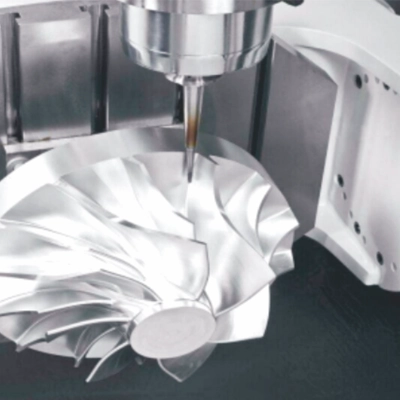

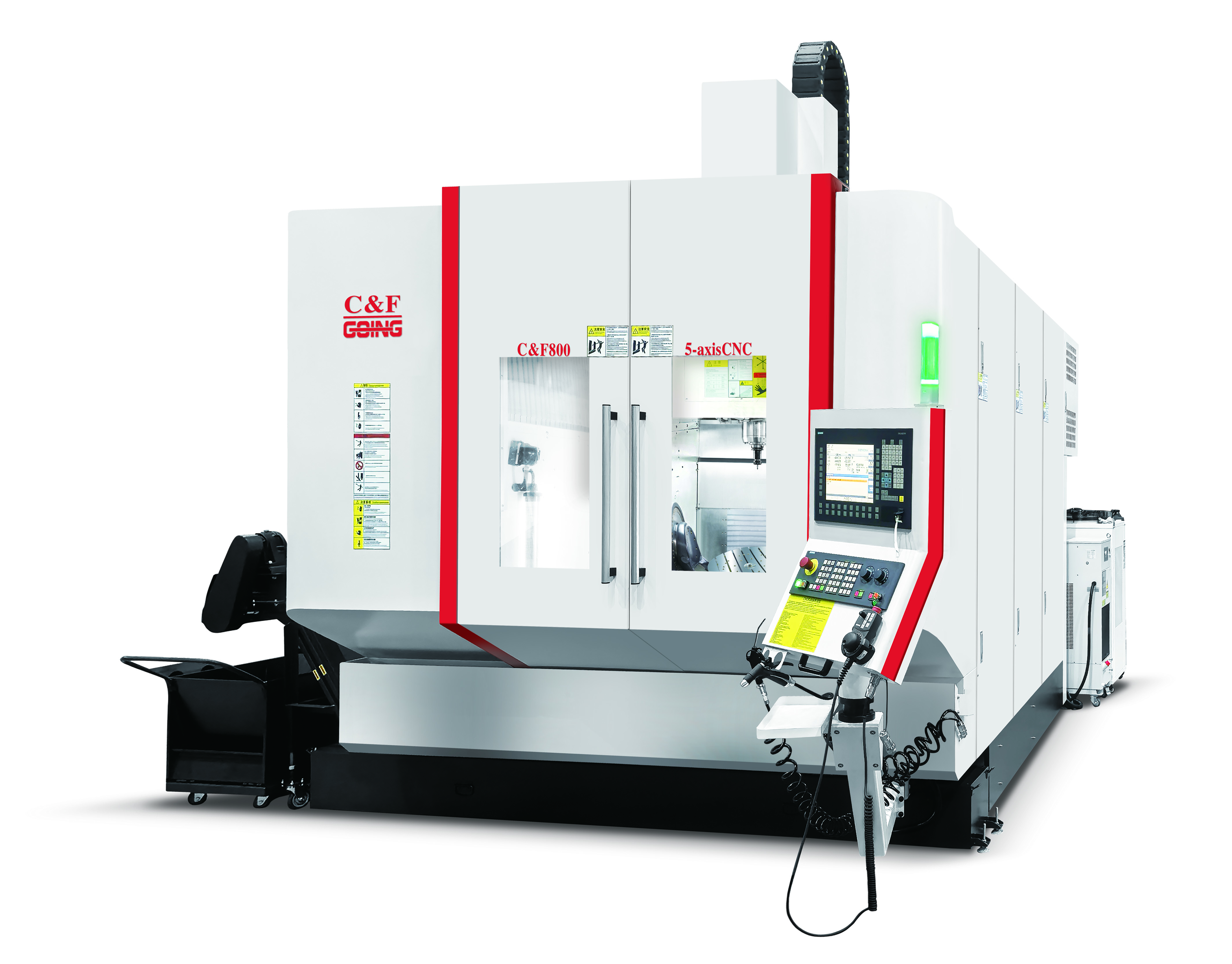

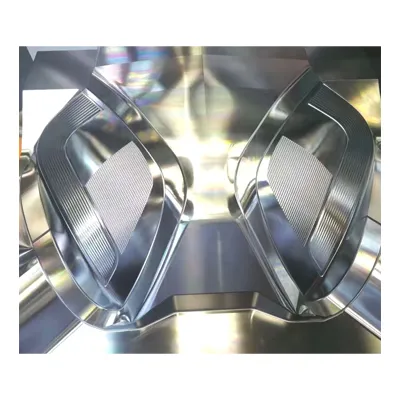

High-end impeller machining/surface, curve, universal machining

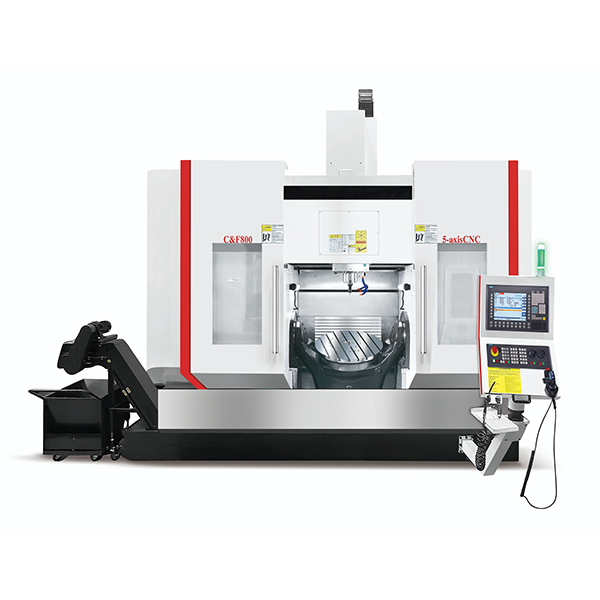

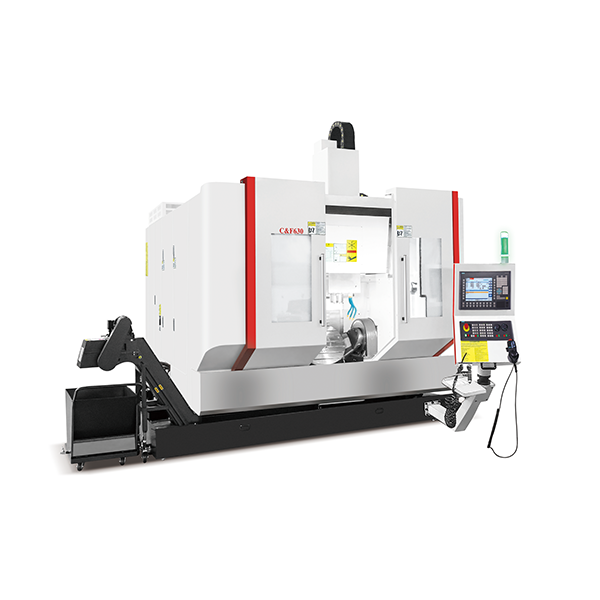

| Mechanical Specification | Unit | C&F260 | C&F320 | C&F400 | C&F500 | C&F630 | C&F800 | |
| Processing range | X-axis travel | mm | 400 | 550 | 750 | 500 | 750 | 950 |
| Y-axis travel | mm | 600 | 800 | 1100 | 500 | 800 | 1000 | |
| Z-axis travel | mm | 400 | 450 | 550 | 450 | 600 | 600 | |
| AC-axis travel | mm | ±120 °/360° | ±120 °/360° | ±120 °/360° | ±120 °/360° | ±120 °/360° | ±120 °/360° | |
| Distance from spindle end face to work surface | mm | 120/570 | 120/570 | 200 | 100~550 | 120~720 | 180~780 | |
| Table specification | Workbench size | mm | Φ260 | Φ320 | Φ400 | Φ500 | Φ630 | Φ800 |
| T-slot specification | mm | 7-12 | 7-12 | 8-14 | 8-14 | 8-14 | 8-14 | |
| Maximum load-bearing capacity of the workbench | kg | 60 | 60 | 120 | 500 | 850 | 1000 | |
| Spindle specification | Kind Of drive | / | Direct connection/ Inner Tibetan spindle | |||||
| Spindle nose code | / | BT40/ BBT40/ HSK A63 | ||||||
| Spindle speed | 12000/15000/20000/24000 | |||||||
| Spindle motor power | kw | 11/15/ 18/ 20/22/ 25/ 30 | ||||||

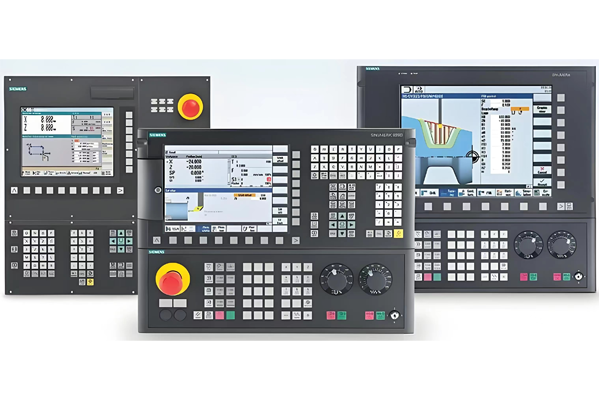

| System | System | / | Siemens/ Heidenhain/ FANUC | |||||
| Tool Magazine | Capacity | T | 20/ 24/ 30/ 40/ 60 | |||||
| Feed | X/Y/Z axis rapid feed | m/min | 30/30/30 | 30/30/30 | 30/30/30 | 32/32/32 | 36/36/36 | 36/36/36 |
| X/Y/Z axis cutting feed | m/min | 1-20 | ||||||
| AC axis speed | m/min | 20/30 | ||||||
| Accuracy | Positioning accuracy | mm | ±0.005 | |||||
| Positioning accuracy | mm | ±0.003 | ||||||
| Triaxial rail | X/Y/Z axis guide rail specifications | mm | 35*35*45 | 35*35*45 | 35*45*35 | 35/35/35 | 35/35/35 | 45/45/45 |
| Machine Specification | Machine size | mm | 4500*4200*3200 | 4500*4200*3200 | 4500*4400*3200 | 4500*4200*3300 | 4500*4100*3300 | 4500 *4200 * 3400 |
| Machine weight | T | 7 | 8 | 10 | 12 | 14 | 15 | |
| Because technology is constantly updated, the above parameters is only for your reference | ||||||||
