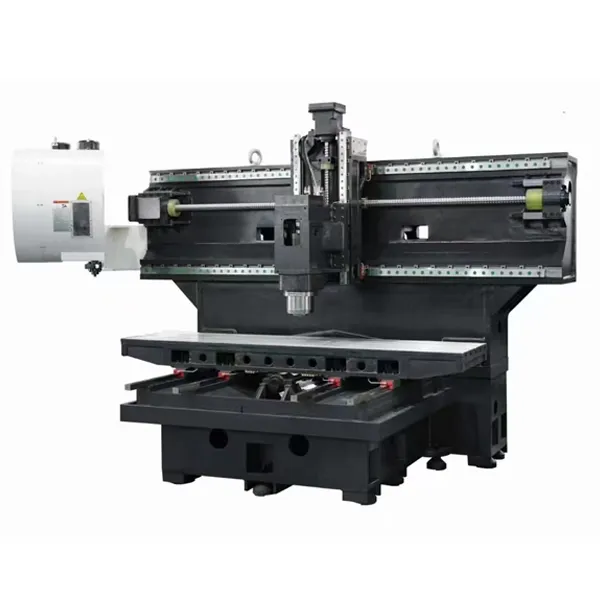

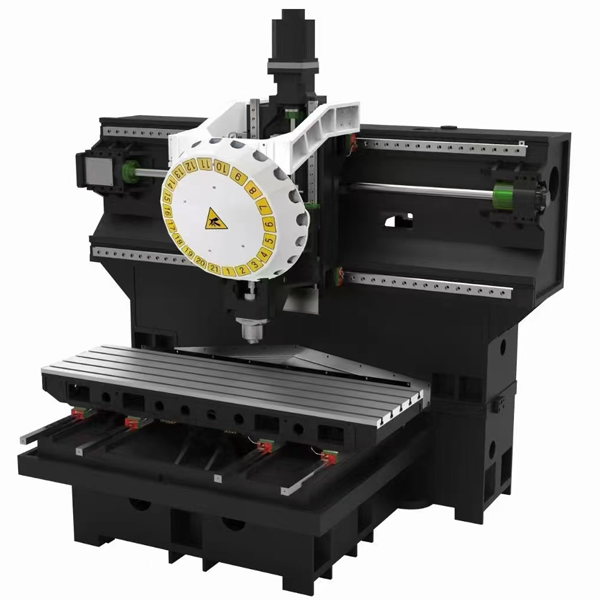

The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability

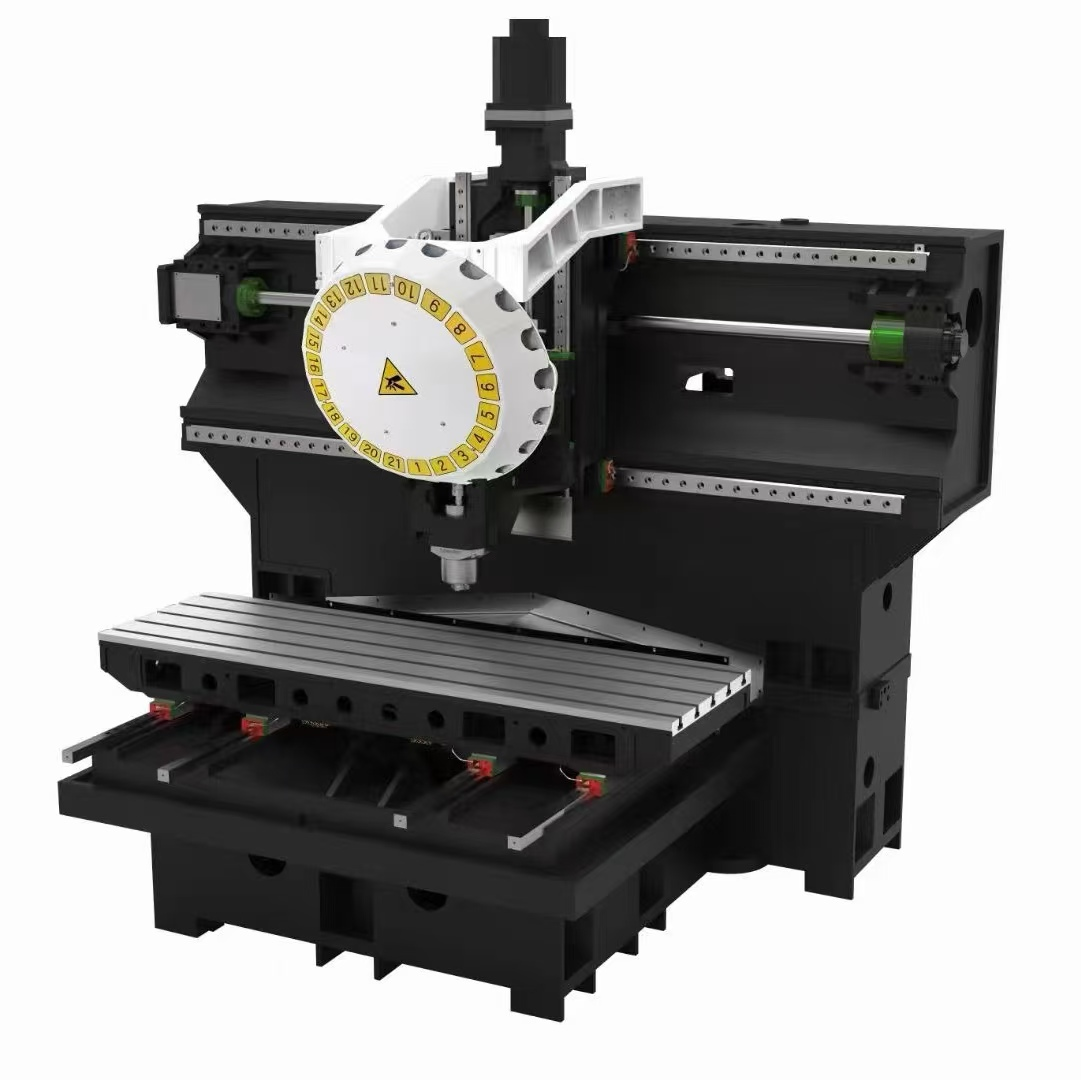

Integrated screw base and motor base to ensure high rigidity and stabilit

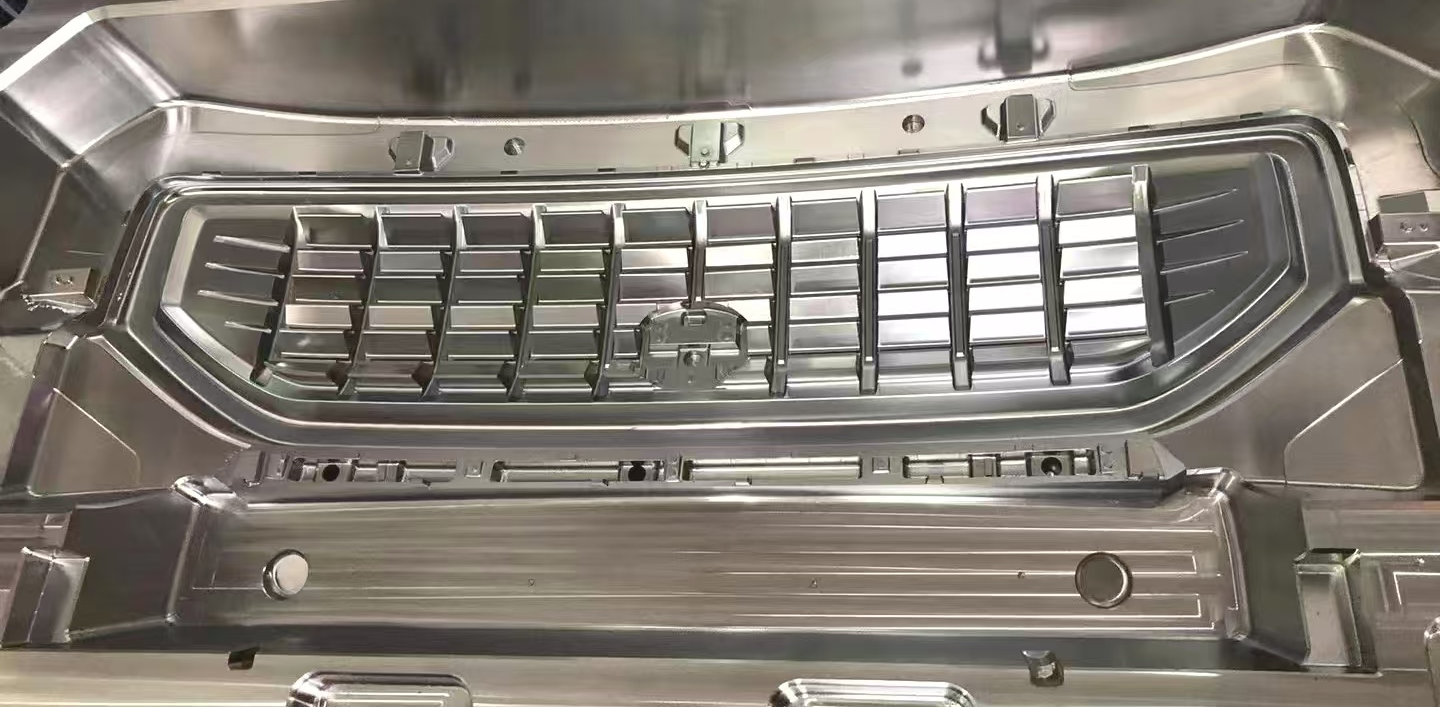

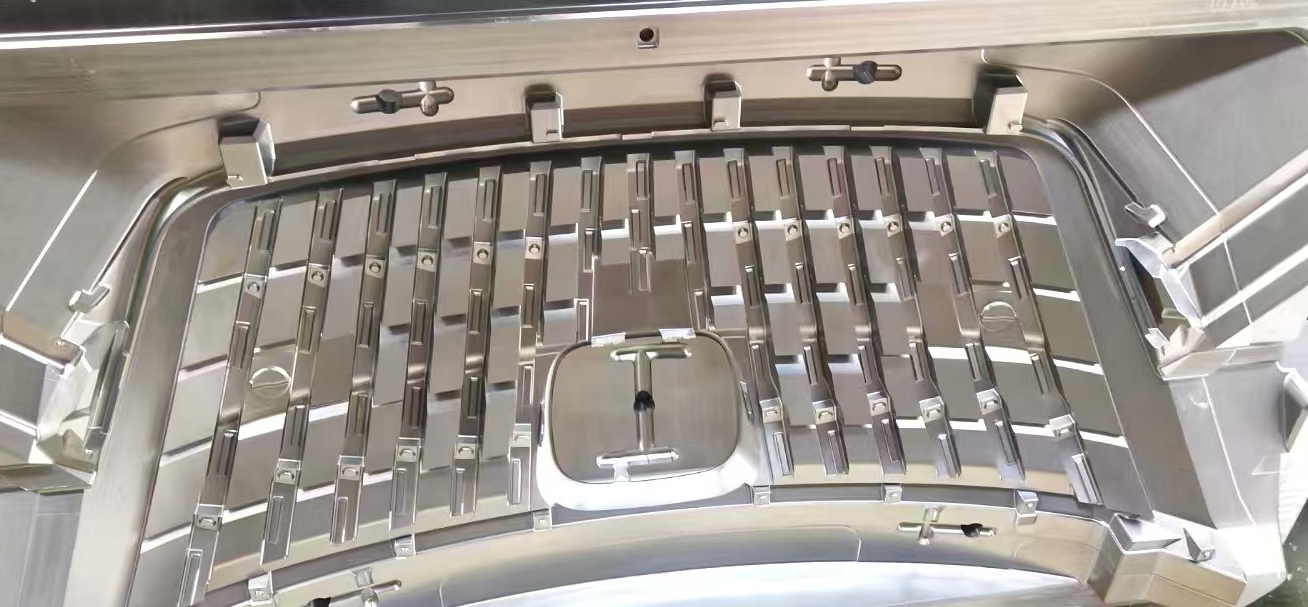

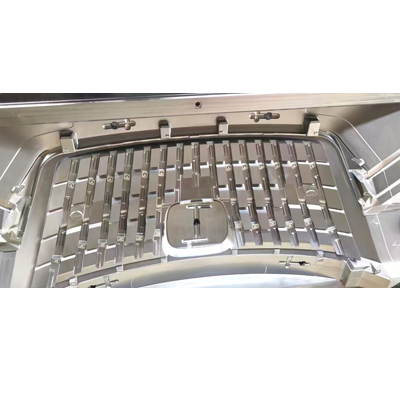

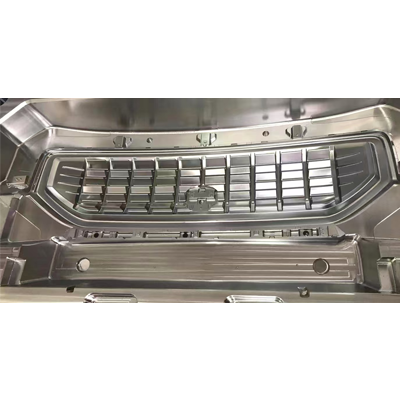

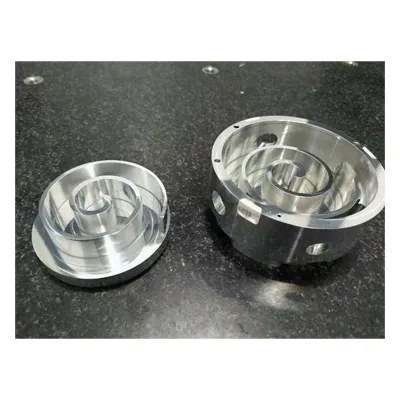

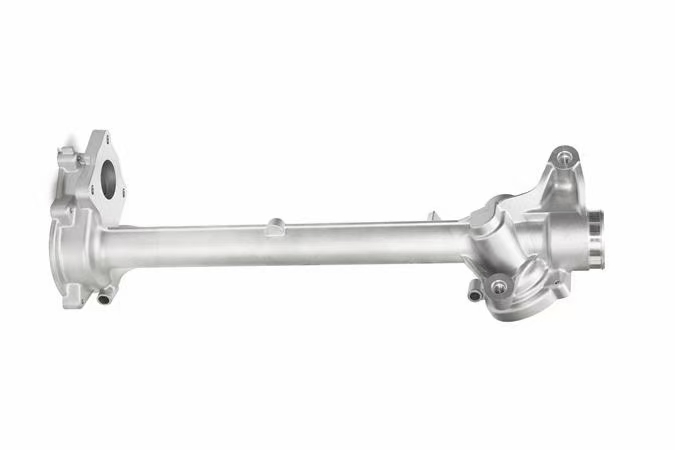

Suitable for aerospace, high precision mold, parts, 3C, 5G parts processing tool.

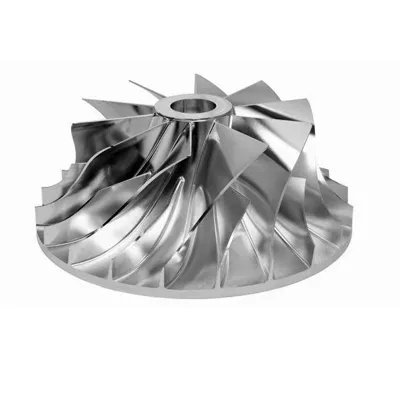

High-end impeller machining/surface, curve, universal machining

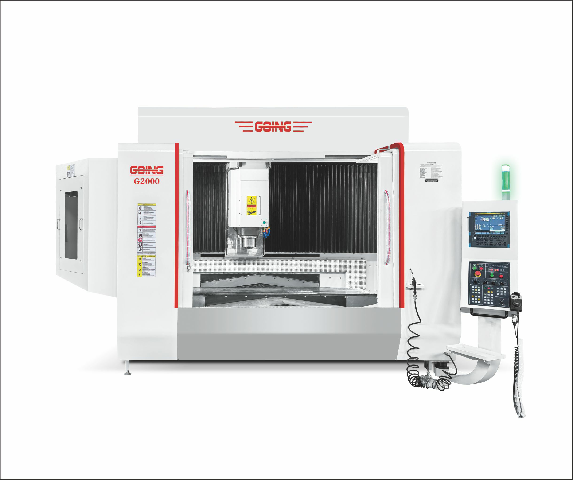

| Specifications/ Models | Unit | G1600 | G2000 | G2500 | |
| Processing range | X-axis travel | mm | 1600 | 2000 | 2500 |
| Y-axis travel | mm | 500 | 500 | 500 | |
| Z-axis travel | mm | 300 | 300 | 300 | |
| Distance from spindle end to worktable | mm | 150-450 | |||
| Table specification | Table specification | mm | 1700*500 | 2100*500 | 2600*500 |
| T-slot dimensions | mm | 5-18*100 | |||
| Maximum bearing capacity of table | kg | 600 | |||
| Main specification | Speed of mainshaft | rpm | 12000 | ||

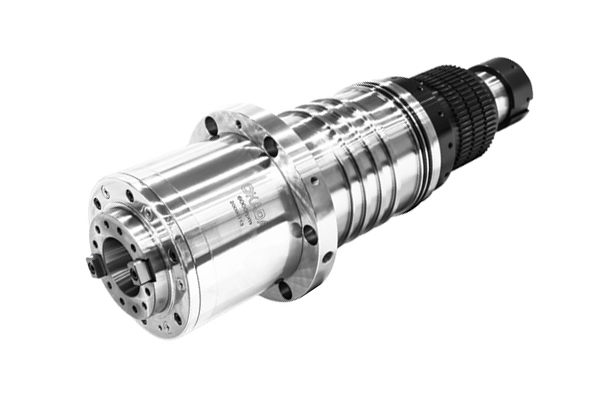

| Spindle specification | / | BT40 (Φ150) | |||
| Kind of drive | / | Direct type | |||
| Motor power | Spindle motor power | kw | 11/15 | ||
| Magazine tool | capacity | T | 24 | ||
| Feed | X、Y、Z axis fast feed | m/ min | 24/36/36 | ||
| X、Y、Z axis cutting feed | m/ min | 1-12 | |||
| Screw mandrel/ guide rail specification | X、Y、Z axis mandrel specification | mm | 5016/4016/3216 | 5020/4016/3216 | 5020/4016/3216 |
| X、Y、Z axis guide rail specification | mm | 45/35/35 | |||
| Accuracy | Positioning accuracy | mm | ±0.008 | ||
| Repeating positioning accuracy | mm | ±0.005 | |||
| Machine specification | Machine size | mm | 3660*2300*2600 | 4500*2370*2740 | 5100*2400*2740 |
| Machine weight | T | 7.5 | 8.5 | 9.7 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||||
