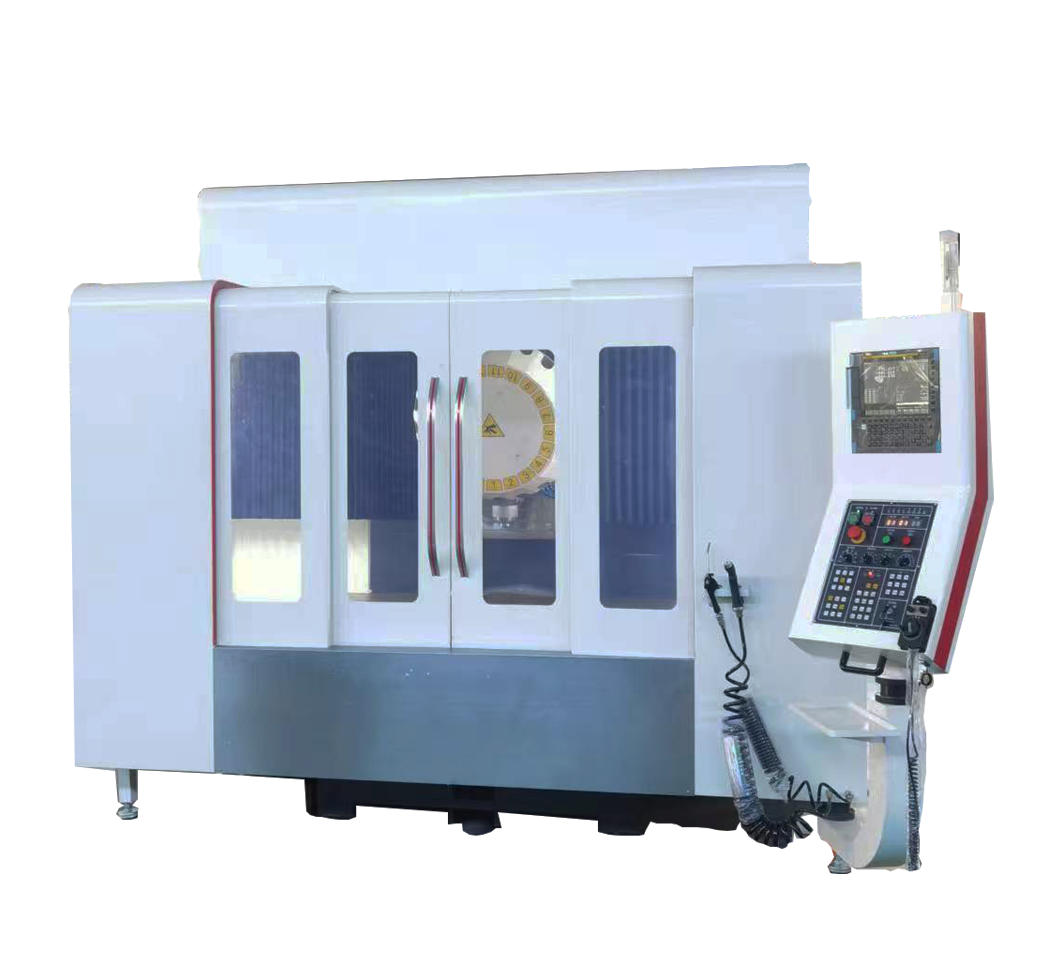

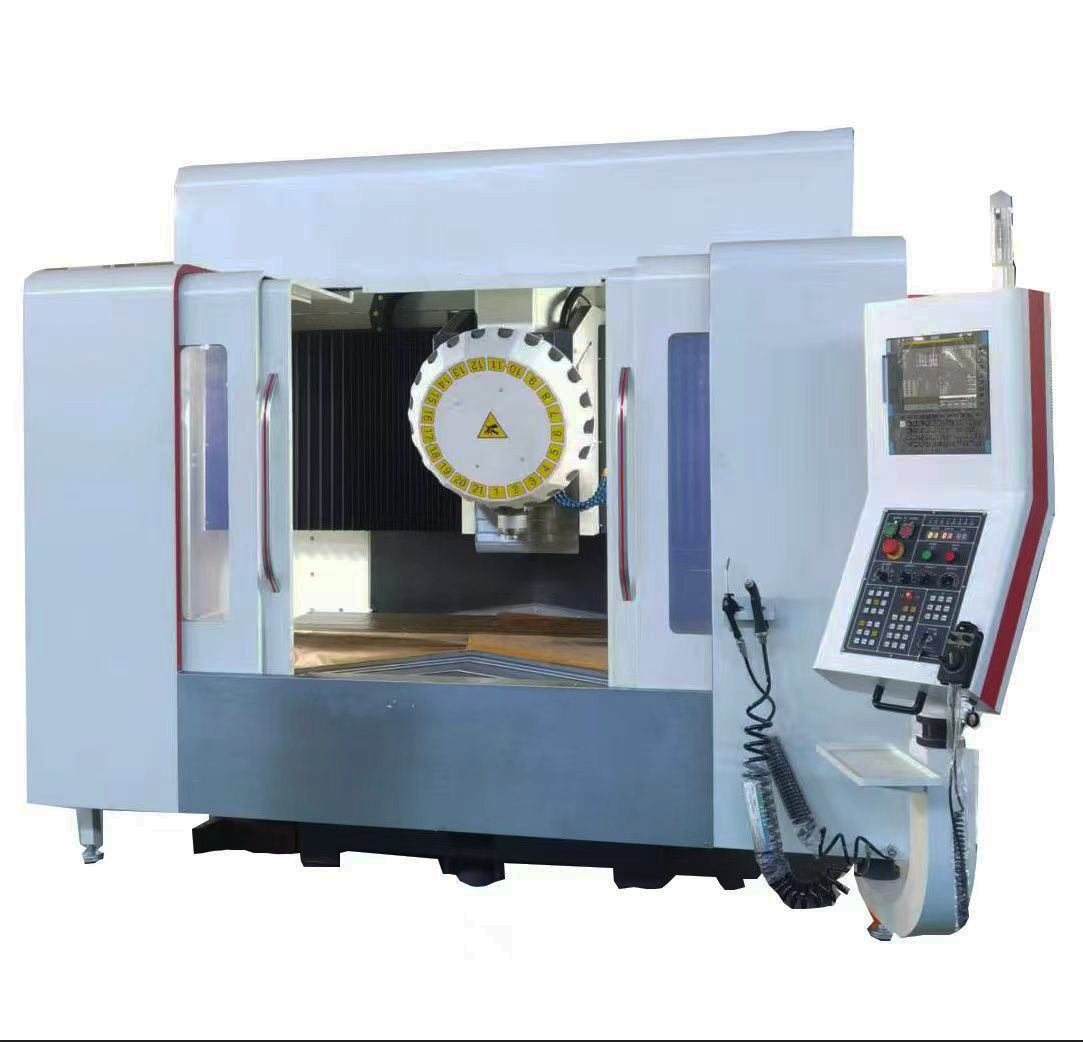

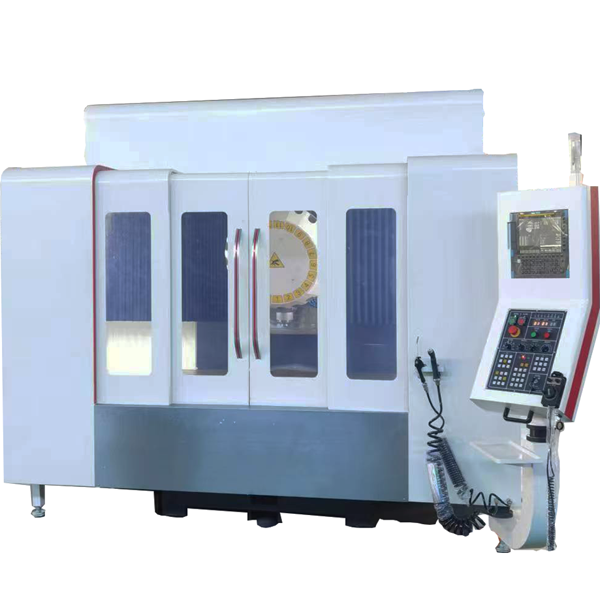

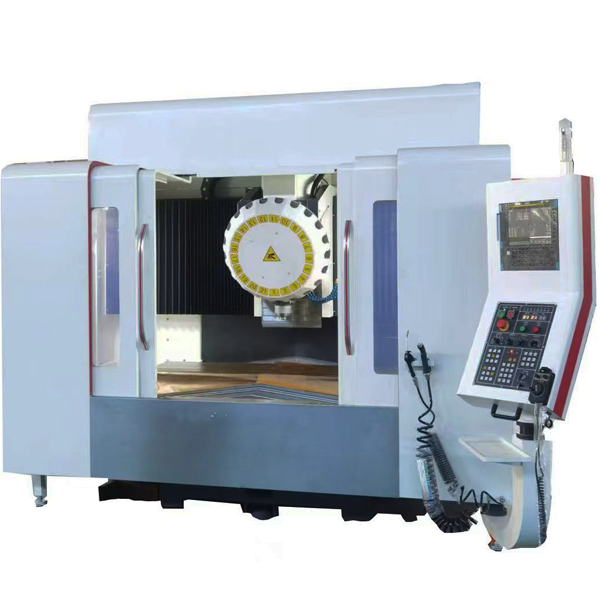

| Specifications/ Models | Unit | G1600 | G2000 | G2500 | |
| Processing range | X-axis travel | mm | 1600 | 2000 | 2500 |
| Y-axis travel | mm | 500 | 500 | 500 | |
| Z-axis travel | mm | 300 | 300 | 300 | |
| Distance from spindle end to worktable | mm | 150-450 | |||
| Table specification | Table specification | mm | 1700*500 | 2100*500 | 2600*500 |
| T-slot dimensions | mm | 5-18*100 | |||
| Maximum bearing capacity of table | kg | 600 | |||
| Main specification | Speed of mainshaft | rpm | 12000 | ||

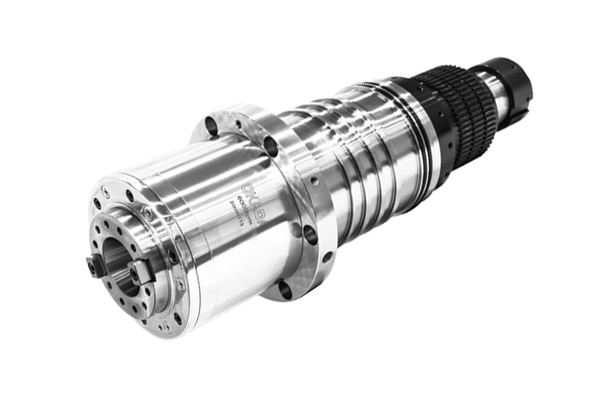

| Spindle specification | / | BT40 (Φ150) | |||
| Kind of drive | / | Direct connection | |||
| Motor power | Spindle motor power | kw | 11/15 | ||

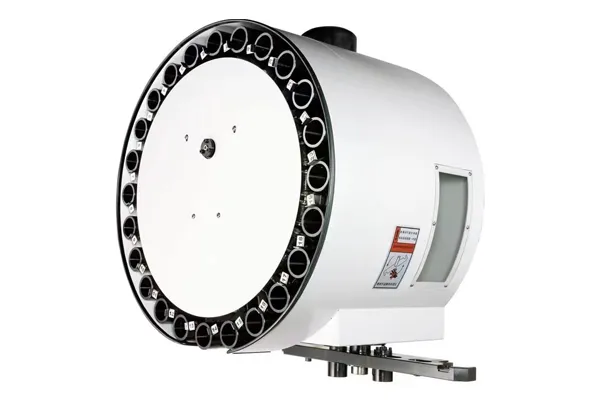

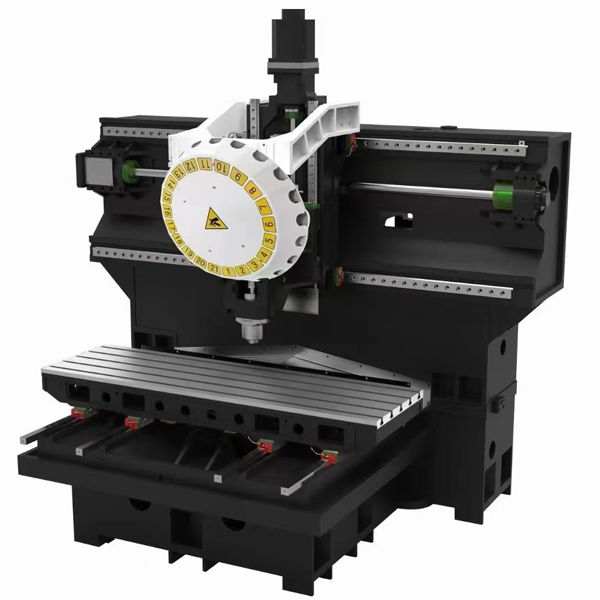

| Magazine tool | capacity | T | 24 | ||
| Feed | X、Y、Z axis fast feed | m/ min | 24/36/36 | ||
| X、Y、Z axis cutting feed | m/ min | 1-12 | |||
| Screw mandrel/ guide rail specification | X、Y、Z axis mandrel specification | mm | 5016/4016/3216 | 5020/4016/3216 | 5020/4016/3216 |
| X、Y、Z axis guide rail specification | mm | 45/35/35 | |||
| Accuracy | Positioning accuracy | mm | ±0.008 | ||
| Repeating positioning accuracy | mm | ±0.005 | |||
| Machine specification | Machine size | mm | 3660*2300*2600 | 4500*2370*2740 | 5100*2400*2740 |
| Machine weight | T | 7.5 | 8.5 | 9.7 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||||
